Statement of volatility for the Dell Latitude 7390 2-in-1 convertible laptop documenting all volatile and non-volatile memory components on the system board. Non-volatile items include M.2-2280 SSD storage, 128Mbit System BIOS/ME Firmware (UC5), 64KB embedded controller boot ROM (MEC5105), 8Mbit USB Type-C PD firmware (UT6), 8Mbit Alpine Ridge Thunderbolt NVM (UT2), LCD Panel EEDID EEPROM, and 256-byte RTC CMOS. LPDDR3 system memory (four on-board packages, 4-16GB) is volatile on power removal.
Page 1 Text Content

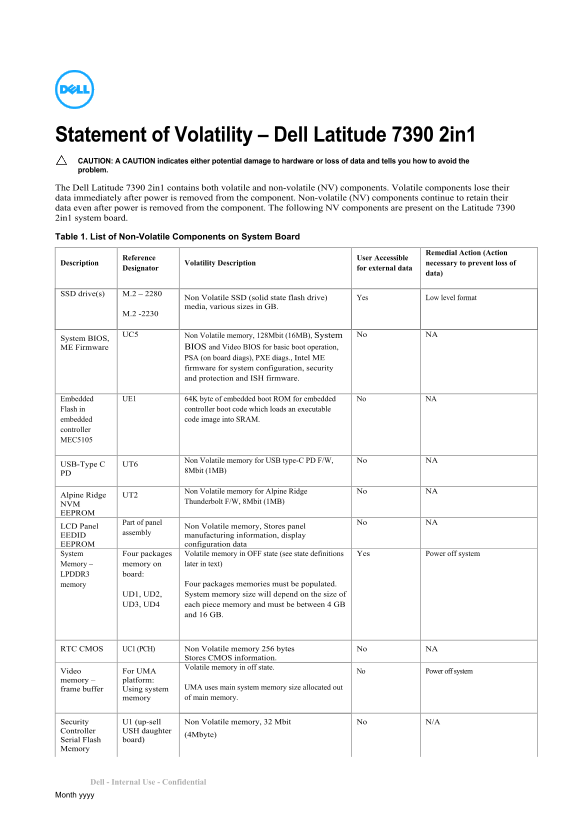

Statement of Volatility – Dell Latitude 7390 2in1 CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell Latitude 7390 2in1 contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately after power is removed from the component. Non-volatile (NV) components continue to retain their data even after power is removed from the component. The following NV components are present on the Latitude 7390 2in1 system board. Table 1. List of Non-Volatile Components on System Board
Remedial Action (Action
Reference User Accessible
Description Volatility Description necessary to prevent loss of
Designator for external data
data)
SSD drive(s) M.2 – 2280
Non Volatile SSD (solid state flash drive) Yes Low level format
media, various sizes in GB.
UC5 Non Volatile memory, 128Mbit (16MB), System No NA
System BIOS,
ME Firmware BIOS and Video BIOS for basic boot operation, PSA (on board diags), PXE diags., Intel ME firmware for system configuration, security and protection and ISH firmware.
Embedded UE1 64K byte of embedded boot ROM for embedded No NA
Flash in controller boot code which loads an executable
embedded code image into SRAM.
controller MEC5105
No NA
USB-Type C UT6 Non Volatile memory for USB type-C PD F/W,
8Mbit (1MB)
No NA
Alpine Ridge UT2 Non Volatile memory for Alpine Ridge
Thunderbolt F/W, 8Mbit (1MB)
NVM EEPROM
Part of panel No NA
LCD Panel Non Volatile memory, Stores panel
assembly
EEDID manufacturing information, display EEPROM configuration data
System Four packages Volatile memory in OFF state (see state definitions Yes Power off system
Memory – memory on later in text)
LPDDR3 board:
memory Four packages memories must be populated. UD1, UD2, System memory size will depend on the size of
UD3, UD4 each piece memory and must be between 4 GB
and 16 GB.
RTC CMOS UC1 (PCH) Non Volatile memory 256 bytes No NA
Stores CMOS information. Volatile memory in off state.
Video For UMA No Power off system memory – platform:
frame buffer Using system UMA uses main system memory size allocated out memory of main memory.
Security U1 (up-sell Non Volatile memory, 32 Mbit No N/A Controller USH daughter
(4Mbyte)
Serial Flash board)
Memory
Dell - Internal Use - Confidential Month yyyy
Page Summary Contents For Dell Statement of Volatility – Dell Latitude 7390 2-in-1 Owner's Manual
Manual Details
| Brand | Dell |
|---|---|
| Pages | 3 |
| File Size | 94.92 KB |
| Published | June 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What data type is lost if I physically pull the power cord?
All user data stored on the main memory (LPDDR3) will be destroyed due to primary power loss.
Which component stores basic boot operation information?
The System BIOS, ME Firmware BIOS, and Video BIOS store the necessary data for basic boot operations.
What is required to prevent data loss from the SSD drive(s)?
A low level format of the M.2 SSD media must be performed.
Which power state is categorized as 'hibernate' or suspend to disk?
S4 is the 'suspend to disk' state, where there is no power and the OS saves system context to a non-volatile storage file.
