Statement of volatility for the Dell Latitude 7x90 series laptop family (7290, 7390, 7490), documenting all volatile and non-volatile memory components. Non-volatile items include M.2-2280/2230 SSD storage, 128Mbit System BIOS UC5 with Intel ME and ISH firmware, 64KB embedded controller boot ROM (MEC5105), Alpine Ridge NVM flash UT2, USB Type-C PD firmware UT6, LCD Panel EEDID EEPROM, and 256-byte RTC CMOS. The 7290/7390 use DDR4 via single SODIMM (4-16GB); the 7490 uses dual SODIMMs.
Page 1 Text Content

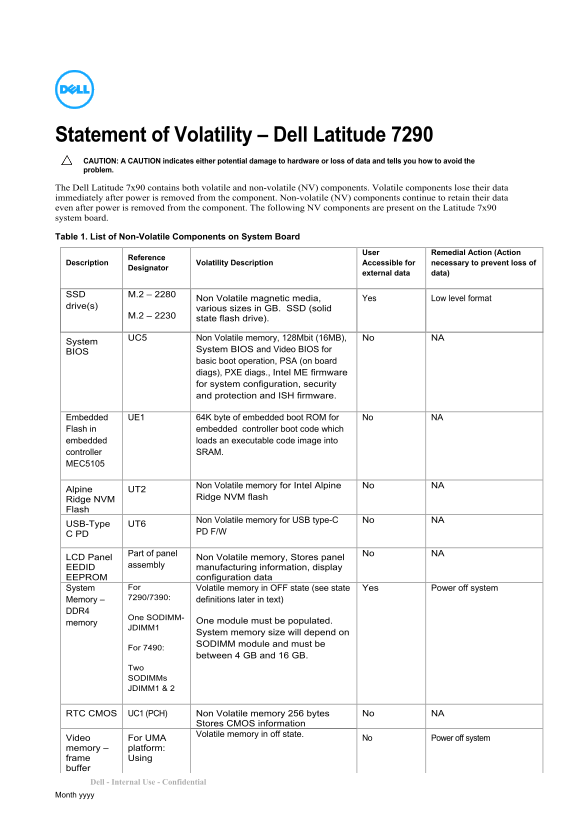

Statement of Volatility – Dell Latitude 7290 CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell Latitude 7x90 contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately after power is removed from the component. Non-volatile (NV) components continue to retain their data even after power is removed from the component. The following NV components are present on the Latitude 7x90 system board. Table 1. List of Non-Volatile Components on System Board
User Remedial Action (Action
Description Reference Accessible for necessary to prevent loss of
Designator Volatility Description
external data data)
SSD M.2 – 2280
Non Volatile magnetic media, Yes Low level format
drive(s)
various sizes in GB. SSD (solid
state flash drive).
UC5 Non Volatile memory, 128Mbit (16MB), No NA
System
System BIOS and Video BIOS for
basic boot operation, PSA (on board diags), PXE diags., Intel ME firmware for system configuration, security and protection and ISH firmware.
Embedded UE1 64K byte of embedded boot ROM for No NA Flash in embedded controller boot code which embedded loads an executable code image into controller SRAM. MEC5105
No NA
Alpine UT2 Non Volatile memory for Intel Alpine
Ridge NVM flash
Ridge NVM Flash
No NA
USB-Type UT6 Non Volatile memory for USB type-C
PD F/W
Part of panel No NA
LCD Panel Non Volatile memory, Stores panel
assembly
EEDID manufacturing information, display EEPROM configuration data
System For Volatile memory in OFF state (see state Yes Power off system 7290/7390:
Memory – definitions later in text) DDR4
One SODIMM-
memory One module must be populated.
JDIMM1
System memory size will depend on SODIMM module and must be
For 7490:
between 4 GB and 16 GB.
Two SODIMMs JDIMM1 & 2
RTC CMOS UC1 (PCH) Non Volatile memory 256 bytes No NA
Stores CMOS information Volatile memory in off state. No Power off system
Video For UMA memory – platform: frame Using buffer Dell - Internal Use - Confidential Month yyyy
Page Summary Contents For Statement of Volatility – Dell Latitude 7290 Owner's Manual
Manual Details
| Brand | Dell |
|---|---|
| Pages | 2 |
| File Size | 116.89 KB |
| Published | June 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What happens if I lose primary power by unplugging the unit?
Primary power loss destroys all user data stored on the DDR4 memory.
Which internal components retain their data when the system is powered off?
Non-volatile (NV) components, such as SSD M.2 and BIOS, continue to retain data.
What information is lost if only the coin-cell battery is removed?
Secondary power loss destroys system configuration and time-of-day information.
