Precision 5540 Setup and Specifications
Regulatory Model: P56F Regulatory Type: P56F003 May 2022 Rev. A07
Page Summary Contents For Dell Precision 5540 Setup Guide and Specifications
Page 1

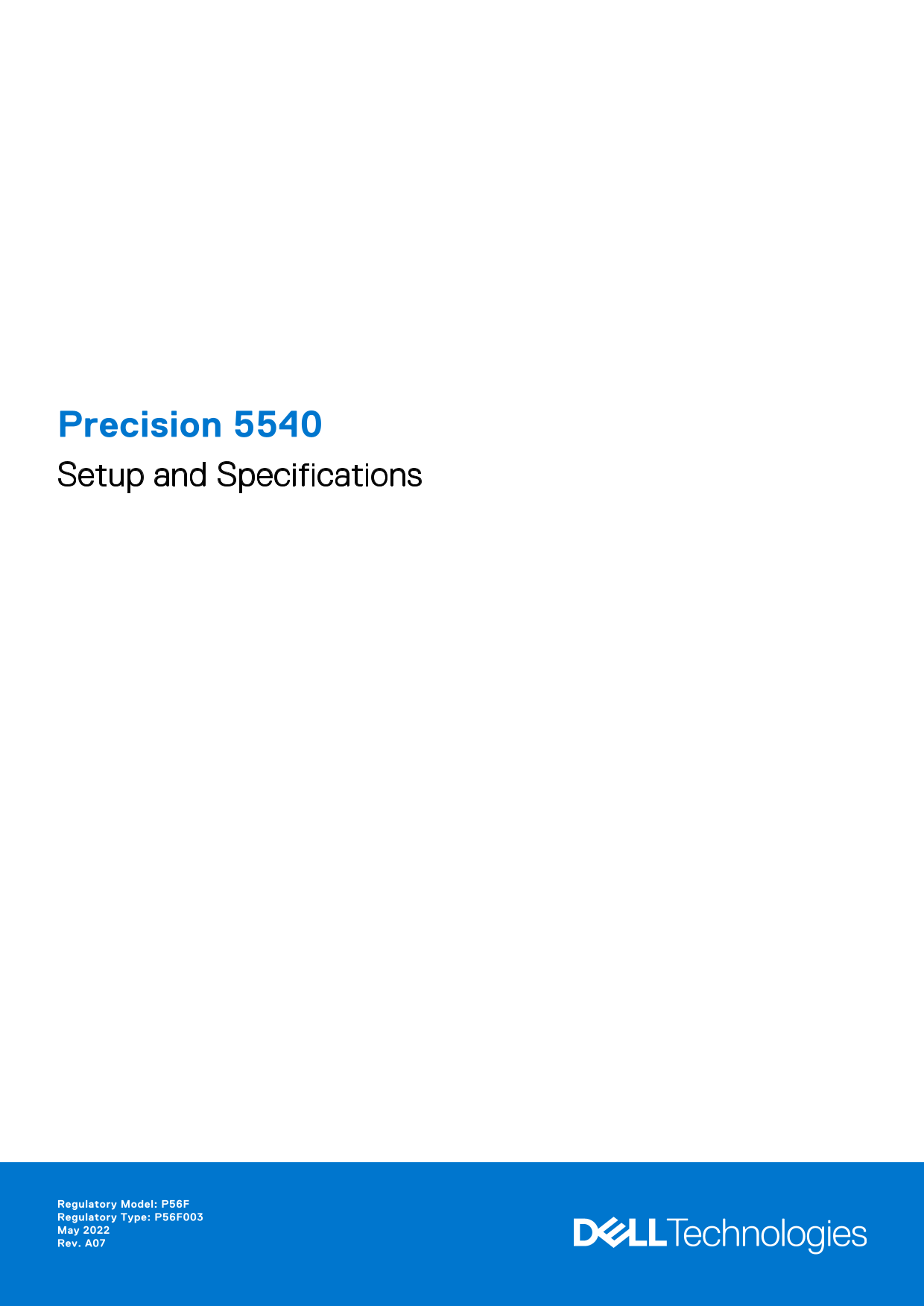

Precision 5540 Setup and Specifications Regulatory Model: P56F Regulatory Type: P56F003 May 2022 Rev. A07
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Set up your computer 1. Connect the power adapter. 2. Press the power button. 3. Follow the instructions on the screen to finish Windows setup: a. Connect to a network. Set up your computer
Page 4
b. Sign-in to your Microsoft account or create a new account. 4. Locate Dell apps. Table 1. Locate Dell apps Register your computer Dell Help & Support Support Assist — Check and update your compu...
Page 5
Chassis This chapter illustrates the multiple chassis views along with the ports and connectors and also explains the FN hot key combinations. Topics: System overview Hot key combinations System overv...
Page 6
Front open view 1. Display 2. Camera-status light 3. Infrared camera 4. Right speaker 5. Microphones 6. Left speaker 7. HD camera Chassis
Page 7
Figure 1. Left view 1. Power connector port 2. USB 3.1 Gen 1 port with Power Share 3. HDMI port 4. Thunderbolt 3 Type-C port 5. Headset port Figure 2. Right view 1. Memory card reader 2. USB 3.1 Gen 1...
Page 8
Figure 3. Bottom view 1. Service tag label 2. Regulatory label Hot key combinations Keyboard shortcuts Some keys on your keyboard have two symbols on them. These keys can be used to type alternate cha...
Page 9
Table 2. Hot key combinations (continued) Fn key combination Description Fn+ Prt Scr Wireless Table 3. Keyboard shortcuts Function key Behavior Fn+B Pause/break Fn+S Toggle scroll lock Fn+R System req...
Page 10
Engineering specifications This chapter lists out the specification of each and every component in a comprehensive format. Specific features/models/ configurations/options discussed in the document ma...
Page 11
Table 5. Dimensions and weight (continued) Features Specification Depth 235 mm (9.26 in) Weight 1.8 kg (3.97 lb) NOTE: The weight of your computer depends on the configuration ordered and the manufact...
Page 12
Table 6. BIOS defaults (continued) CPU XD Support Enabled OROM Keyboard Access Enabled Admin Setup Lockout Disabled Master Password Lockout Disabled Support Assist System Resolution Auto OS Recovery T...
Page 13
Table 9. Video (continued) Controller Type CPU Dependency Graphics Capacity External display memory type support Intel Xeon Nvidia Quadro Discrete GDDR5 4 GB HDMI 2.0 T2000 w/4GB GDDR5 Audio specifica...
Page 14
Table 11. Display specifications (continued) Features Specification Width (Active area) FHD - 345.6 mm (13.61 inches) UHD - 345.6 mm (13.55 inches) Diagonal FHD - 396.52 mm (15.61 inches) UHD - 396.52...
Page 15
Camera Table 13. Camera specifications Features Specification Resolution HD Camera: Still image: 0.92 megapixels Video: 1280x720 at 30 fps Infrared camera (optional) Still image: 0.92 megapixel Video:...
Page 16
Table 16. Power adapter specifications (continued) Features Specification Input frequency 50 Hz to 60 Hz 130 W - 6.67 A (continuous) Output current Rated output voltage 19.5 VDC Temperature range (Ope...
Page 17
Storage specifications NOTE: The 2.5 inches drives are not available with the 97 WHr battery and are available only on 3 Cell 56 WHr battery configurations Table 18. Storage specifications Storage spe...
Page 18
BIOS setup CAUTION: Unless you are an expert computer user, do not change the settings in the BIOS Setup program. Certain changes can make your computer work incorrectly. NOTE: Depending on the comput...
Page 19
Table 20. Navigation keys (continued) Keys Navigation Down arrow Moves to the next field. Enter Selects a value in the selected field (if applicable) or follow the link in the field. Spacebar Expands ...
Page 20
Table 21. Main (continued) Option Description Fixed HDD Displays the type and size of the HDD. m SATA Device Displays the type and size of the m SATA device. AC Adapter Type Displays the type of the A...
Page 21
Table 22. Advanced (continued) Option Description Auto On Time Sets the time of day when you would like the system to turn on automatically. Disabled (Default Setting) Peak Shift Minimizes AC power us...
Page 22
Table 23. Security (continued) Option Description NOTE: Deleting the admin password automatically deletes the system password and the hard drive password. NOTE: Successful password changes take effect...
Page 23
Table 24. Boot (continued) Option Description Enabled (Default Setting) - Windows 10 Disabled - Windows 10 Expert Key Management Expert Key Management allows the PK, KEK, db, and dbx security key data...
Page 24
Updating the BIOS Updating the BIOS in Windows CAUTION: If Bit Locker is not suspended before updating the BIOS, the next time you reboot the system it will not recognize the Bit Locker key. You will ...
Page 25
Updating the BIOS from the F12 One-Time boot menu Update your computer BIOS using the BIOS update.exe file that is copied to a FAT32 USB drive and booting from the F12 One-Time boot menu. CAUTION: If ...
Page 26
NOTE: System and setup password feature is disabled. Assigning a system setup password You can assign a new System or Admin Password only when the status is in Not Set. To enter the system setup, pres...
Page 27
Software This chapter details the supported operating systems along with instructions on how to install the drivers. Topics: Supported operating systems Downloading drivers Downloading the chipset dri...
Page 28
NOTE: If you do not have the Service Tag, use the autodetect feature or manually browse for your computer model. 4. Click Drivers and Downloads. 5. Select the operating system installed in your comput...
Page 29
Getting help Topics: Contacting Dell Contacting Dell NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell prod...
