Dell PowerConnect 5500 Series Getting Started Guide provides installation and setup instructions for PowerConnect 5524, 5524P, 5548, and 5548P managed Ethernet switches. It covers site preparation, unpacking, rack mounting, power connection, and initial configuration procedures. The guide is intended for network administrators and IT technicians deploying Dell PowerConnect 5500 series switches in enterprise network infrastructures requiring reliable Layer 2/Layer 3 switching capabilities.
Page 1 Text Content

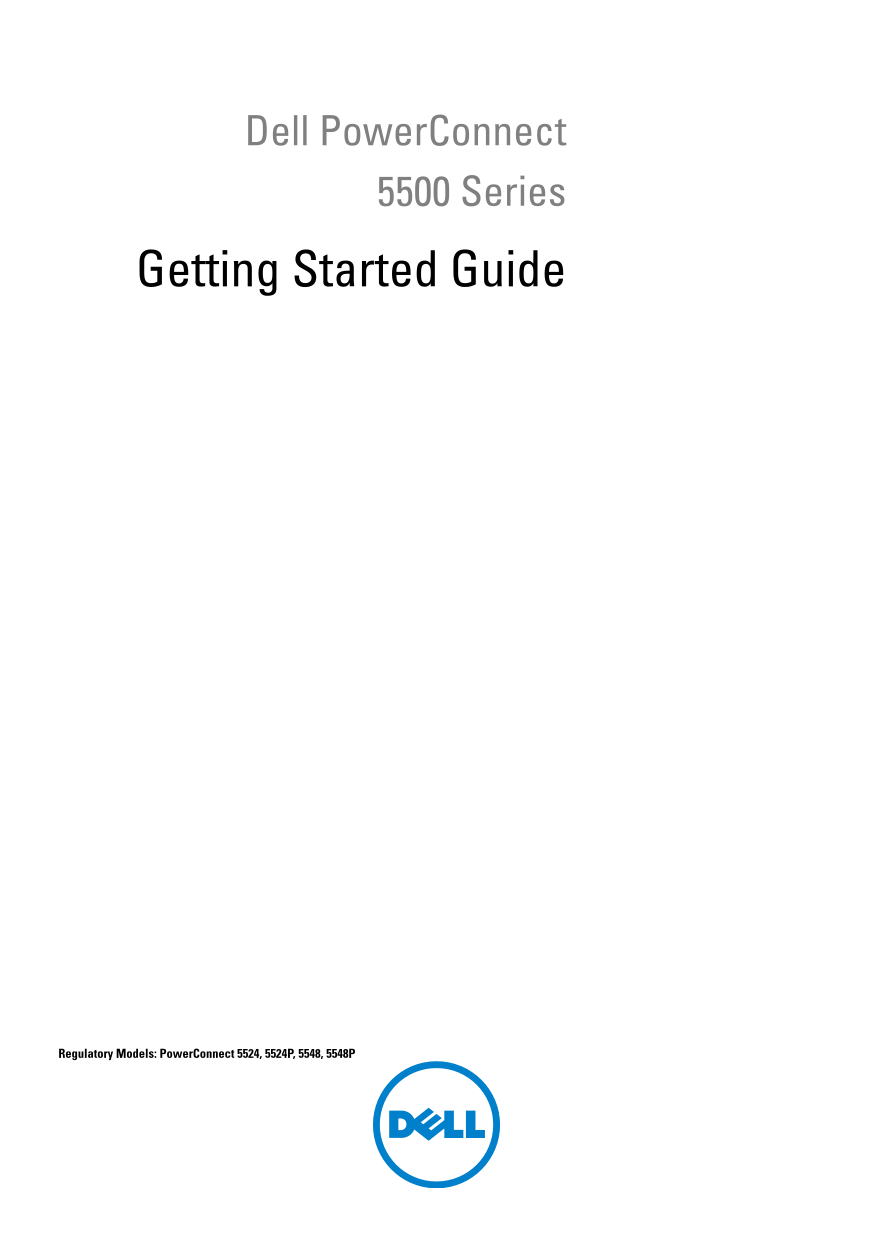

Contax GS.book Page 1 Friday, August 20, 2010 1:53 PM
Dell Power Connect 5500 Series
Getting Started Guide
Regulatory Models: Power Connect 5524, 5524P, 5548, 5548P
Page Summary Contents For Dell PowerConnect 5524P Quick Start Guide
Page 1
Contax GS.book Page 1 Friday, August 20, 2010 1:53 PM Dell Power Connect 5500 Series Getting Started Guide Regulatory Models: Power Connect 5524, 5524P, 5548, 5548P
Page 2
Contax GS.book Page 2 Friday, August 20, 2010 1:53 PM Notes, Cautions, and Warnings NOTE: A NOTE indicates important information that helps you make better use of your system. CAUTION: A CAUTION indic...
Page 3
Contax GS.book Page 3 Friday, August 20, 2010 1:53 PM Contents Installation Overview Site Preparation . Unpacking . Package Contents Unpacking the Switch Installing the Switch. Installing in a Rack . ...
Page 4
Contax GS.book Page 4 Friday, August 20, 2010 1:53 PM Configuring the Switch Configuration Work Flow Connecting the Switch to the Terminal Booting the Switch. Configuring the Stack Configuration Using...
Page 5
Contax GS.book Page 5 Friday, August 20, 2010 1:53 PM Installation Overview This guide describes how to install and run the Power Connect 5500 series switches. For more information, see the Dell Power...
Page 6
Contax GS.book Page 6 Friday, August 20, 2010 1:53 PM Cabling — The cabling is routed to avoid sources of electrical noise, such as radio transmitters, broadcast amplifiers, power lines, and fluoresce...
Page 7
Contax GS.book Page 7 Friday, August 20, 2010 1:53 PM Installing the Switch The Power Connect 5500 Series switches can be: Installed on a rack Placed on a flat surface Installing in a Rack CAUTION: Di...
Page 8
Contax GS.book Page 8 Friday, August 20, 2010 1:53 PM Repeat the process for the rack-mounting bracket on the other side of the switch. Insert the unit into the 48.26-cm (19-inch) rack, ensuring that ...
Page 9
Contax GS.book Page 9 Friday, August 20, 2010 1:53 PM Stacking Overview Each switch is a member in a stack, although the stack may consist of only a single switch. Up to eight switches are supported p...
Page 10
Contax GS.book Page 10 Friday, August 20, 2010 1:53 PM Figure 2-1 shows this process. Figure 2-1. Stacking Cable Diagram HDMI Ports anel Front P HDMI Ports anel Front P HDMI Ports anel Front P HDMI Po...
Page 11
Contax GS.book Page 11 Friday, August 20, 2010 1:53 PM Unit ID Assignment Each switch in the stack has a unique unit ID that defines the unit’s position and function in the stack. Figure 2-2 describes...
Page 12
Contax GS.book Page 12 Friday, August 20, 2010 1:53 PM Manual Assignment To assign unit IDs to the switches in the stack, do the following for each switch in the stack: Connect the switch to the termi...
Page 13
Contax GS.book Page 13 Friday, August 20, 2010 1:53 PM Configuring the Switch This section describes the configuration that must be performed after the switch is installed and connected to power suppl...
Page 14
Contax GS.book Page 14 Friday, August 20, 2010 1:53 PM Connecting the Switch to the Terminal The switch is configured and monitored through a terminal desktop system that runs terminal emulation softw...
Page 15
Contax GS.book Page 15 Friday, August 20, 2010 1:53 PM Booting the Switch After the local terminal is connected, turn on power. The switch then goes through power-on self-test (POST). POST runs every ...
Page 16
Contax GS.book Page 16 Friday, August 20, 2010 1:53 PM Configuring the Stack The switch is always considered to be a stack of switches even if the stack only contains a single switch. If there is more...
Page 17
Contax GS.book Page 17 Friday, August 20, 2010 1:53 PM The IP address to be assigned to the VLAN 1 interface through which the switch is to be managed (by default, every external and internal port is ...
Page 18
Contax GS.book Page 18 Friday, August 20, 2010 1:53 PM To manage the switch using SNMP (required for Dell Network Manager) you can: Setup the initial SNMP version 2 account now. Return later and set u...
Page 19
Contax GS.book Page 19 Friday, August 20, 2010 1:53 PM Set up user account privilege level, as follows: The following information is displayed: Now we need to set up your initial privilege (Level 15) ...
Page 20
Contax GS.book Page 20 Friday, August 20, 2010 1:53 PM Press Enter. The following information is displayed: Finally, set up the default gateway. Please enter the IP address of the gateway from which t...
