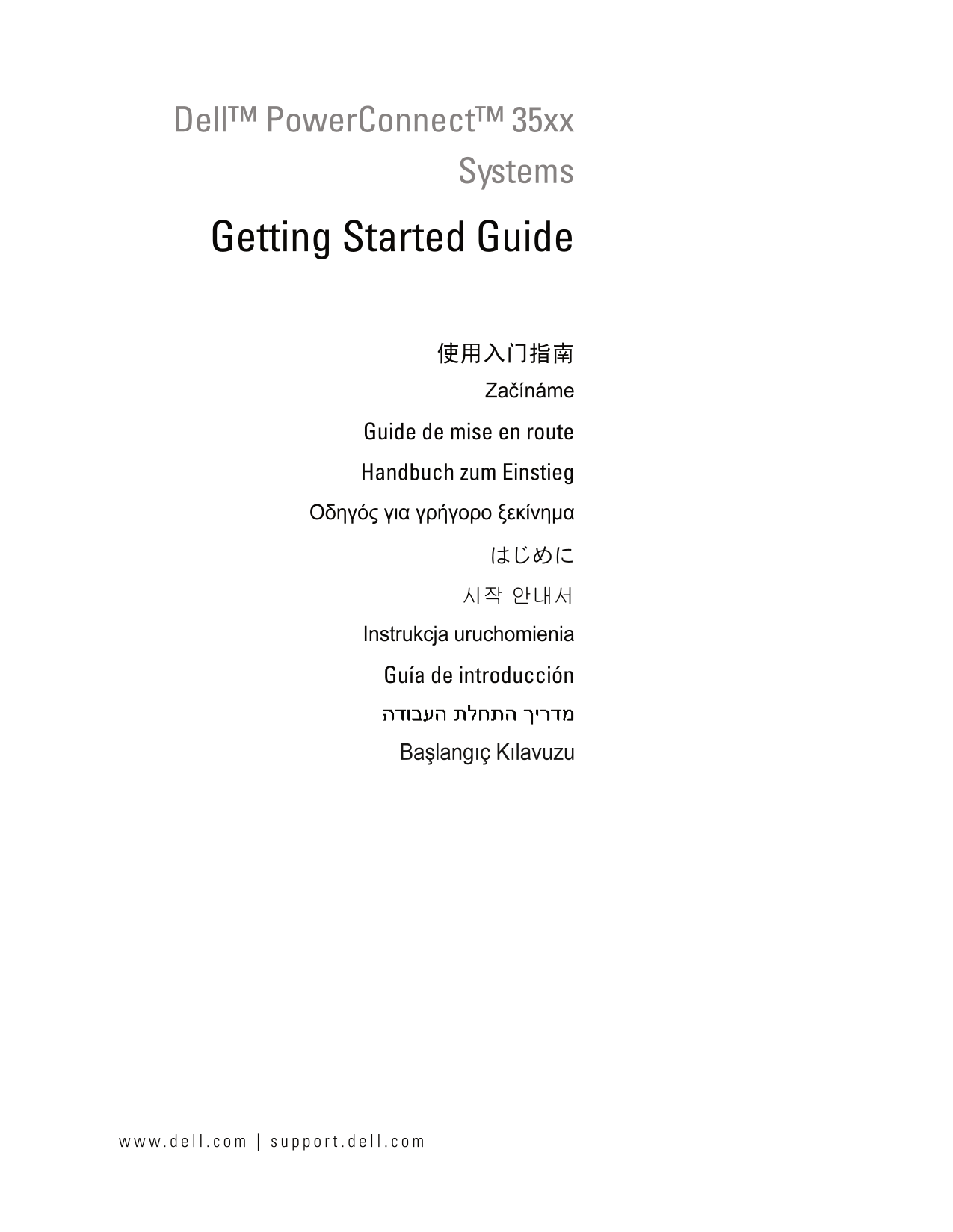

Dell™ Power Connect™ 35xx Systems Getting Started Guide Začínáme Guide de mise en route Handbuch zum Einstieg Οδηγός για γρήγορο ξεκίνημα Instrukcja uruchomienia Guía de introducción
Page 3
Dell™ Power Connect™ 35xx Systems Getting Started Guide
Page 4
Notes, Notices, and Cautions NOTE: A NOTE indicates important information that helps to make better use of the device. NOTICE: A NOTICE indicates either potential damage to hardware or loss of data an...
Page 5
Contents Installation Overview Site Preparation Unpacking Package Contents. Unpacking the Device Mounting the Device Installing in a Rack Installing on a Flat Surface Installing on a Wall . Connecting...
Page 6
Contents
Page 7
Installation Overview This document provides basic information on installing and running the Power Connect 3500 series switches. For more information, see the Dell™ Power Connect™ 3500 Series User's G...
Page 8
Unpacking Package Contents While unpacking the device, ensure that the following items are included: Device/Switch AC power cable RS-232 crossover cable Self-adhesive rubber pads Rack-mount kit for ra...
Page 9
Figure 1-1. Bracket Installation for Rack Mounting Insert the supplied screws into the rack-mounting holes and tighten with a screwdriver. Repeat the process for the rack-mounting bracket on the other...
Page 10
Installing on a Wall To mount the switch on a wall: Ensure that the mounting location meets the following requirements: The surface of the wall must be capable of supporting the switch. Allow at least...
Page 11
Connecting to a Terminal Connect an RS-232 crossover cable to the ASCII terminal or the serial connector of a desktop system running terminal emulation software. Connect the female DB-9 connector at t...
Page 12
Installation
Page 13
Stacking Overview Each device can operate as a stand-alone device or can be a member in a stack. Up to eight devices are supported per stack. All stacks must have a Master unit, and may have a Master ...
Page 14
Figure 2-1. Stacking Cable Diagram For more information on stacking, see the Dell Power Connect 3500 Series User's Guide on the Documentation CD. You can perform the stack unit identification on the d...
Page 15
Figure 2-2. Stacking Configuration and Identification Panel Stack ID Button Stacking LEDs Each stack device has a unique identifying unit ID that defines the unit’s position and function in the stack....
Page 16
Unit ID Selection Process The unit ID selection process is as follows: Power up the device — To power up the device perform the following tasks: Ensure that the stand-alone/Master device Console port ...
Page 17
Starting and Configuring the Device After completing all external connections, connect a terminal to the device to configure the device. Performing the additional advanced functions are described in t...
Page 18
Ensure that the terminal emulation software is set as follows: Select the appropriate serial port (serial port 1 or serial port 2) to connect to the console. Set the data rate to 9600 baud. Set the da...
Page 19
Booting the Switch When the power is turned on with the local terminal already connected, the switch goes through power- on self-test (POST). POST runs every time the device is started and checks hard...
Page 20
The Setup Wizard displays the following information: Welcome to Dell Easy Setup Wizard The Setup Wizard guides you through the initial switch configuration, and gets you up and running easily and quic...
Page 21
To add a management station: Please enter the SNMP community string to be used:[MYSETUPWIZARD] >> Dell Network Manager Please enter the IP address of the Management System (A.B.C.D) or wildcard ...
Page 22
Wizard Step 4 The following information displays: Finally, setup the default gateway. Please enter the IP address of the gateway from which this network is reachable (e.g. 192.168.1.1): Enter the defa...
