Dell OptiPlex 7090 Micro Form Factor Cable Cover Install Guide

Summary

This is the installation guide for the Dell OptiPlex 7090 Micro Form Factor Cable Cover accessory. The manual provides step-by-step instructions for installing the cable cover on OptiPlex 7090 Micro systems, including pre-installation preparation such as shutting down the system and disconnecting peripherals. It covers the installation procedure for attaching the cable cover to the system unit or monitor adapter, along with post-installation verification steps. The guide also includes information on getting help and contacting Dell support. Target users are IT technicians and end-users who need to install this cable management accessory on their OptiPlex 7090 Micro computers.

📄 Preview 📖 Table of Contents Contents ‹ PAGE OF 10 ›

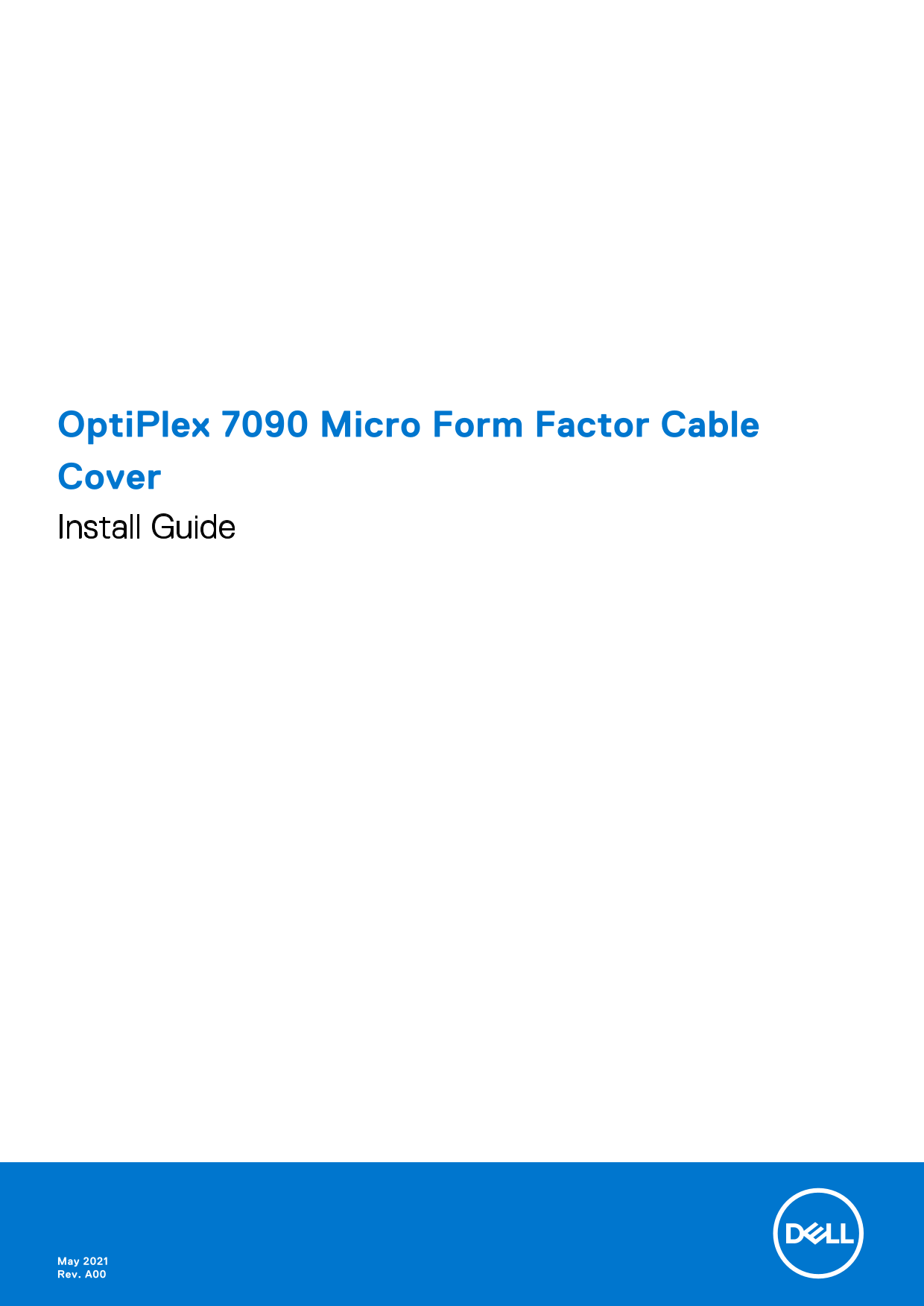

‹ Dell OptiPlex 7090 Micro Form Factor Cable Cover Install Guide - Page 1 ›

Page 1 Text Content

Opti Plex 7090 Micro Form Factor Cable Cover Install Guide

May 2021 Rev. A00

Page Summary Contents For Dell OptiPlex 7090 Micro Form Factor Cable Cover Install Guide

Page 1 Opti Plex 7090 Micro Form Factor Cable Cover Install Guide May 2021 Rev. A00
Page 2 Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3 Contents Chapter 1: Before you begin ......................................................................................................... Chapter 2: Dell Opti Plex Micro form factor Cable Cover.....
Page 4 Before you begin Steps 1. Save and close all open files and exit all open applications. 2. Shut down your system: Click Start > Power > Shut down . NOTE: If you are using a Linux operating syste...
Page 5 Dell Opti Plex Micro form factor Cable Cover The cable cover for the Opti Plex 7090 Micro system protects the ports and organize cables that are connected to the system unit. Steps 1. Follow the instr...
Page 6 3. Align the cable cover retaining hooks into the slots on the system chassis. CAUTION: Take care not to bend or break the delicate plastic hooks. Dell Opti Plex Micro form factor Cable Cover
Page 7 4. Gently press down on the cable cover until it clicks into place. 5. Slide the latch to lock the cable cover in place. Dell Opti Plex Micro form factor Cable Cover
Page 8 NOTE: For added security, use the Kensington cable lock to secure the system unit. Dell Opti Plex Micro form factor Cable Cover
Page 9 After installing the accessory Steps 1. Replace all screws and ensure that no stray screws remain. 2. Connect any external devices, peripherals, or cables you removed before working on your system. 3....
Page 10 Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 1. Self-help resources Self-help resources Re...

Manual Details

Brand Dell
Pages 10
File Size 1.48 MB
Published June 26, 2026
5 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What steps must I follow before installing the cable cover?

Shut down your system, save open files, disconnect all attached devices from both electrical and network outlets.

How is the cable cover secured after installation?

Align the retaining hooks into the slots, gently press it down until it clicks, and slide the latch to lock it in place. A Kensington lock is recommended for added security.

Where can I find support or documentation for my Dell computer?

Visit www.dell.com or enter your Service Tag at www.dell.com/support to access relevant resources, downloads, and diagnostics.

What should I handle with care during assembly?

Be cautious not to bend or break the delicate plastic retaining hooks when mounting the cable cover onto the system chassis.
