Dell OptiPlex 5090 Small Form Factor Cable Cover Install Guide

Summary

An installation guide for the cable cover accessory designed for the Dell OptiPlex 5090 Small Form Factor desktop computer. The document provides step-by-step instructions for preparing the system, installing the cable cover onto the tower chassis, and post-installation procedures. It includes safety precautions about disconnecting power and peripherals before installation. The target audience is IT administrators and technicians responsible for deploying and maintaining Dell OptiPlex 5090 SFF systems in office environments.

📄 Preview 📖 Table of Contents Contents ‹ PAGE OF 10 ›

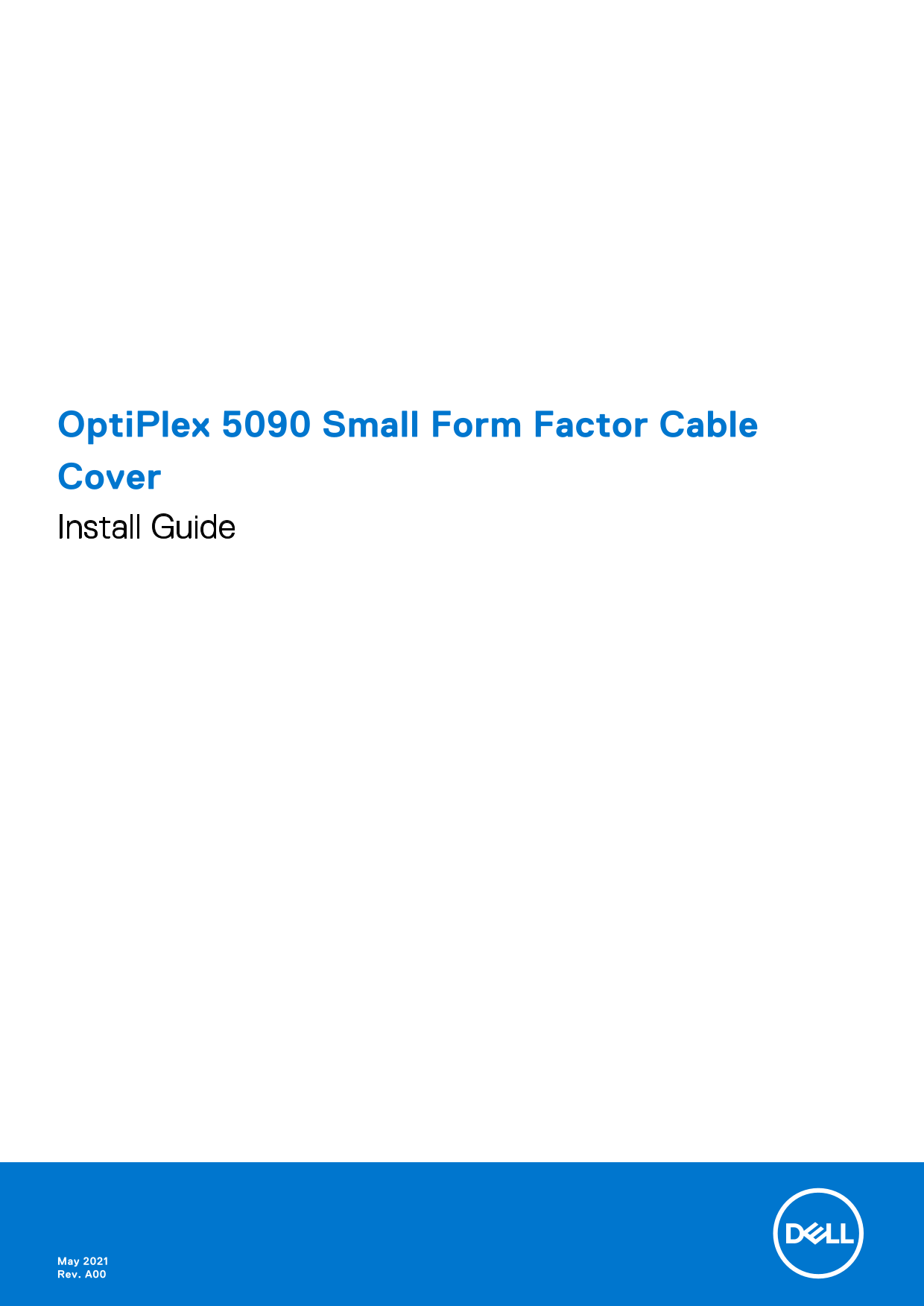

‹ Dell OptiPlex 5090 Small Form Factor Cable Cover Install Guide - Page 1 ›

Page 1 Text Content

Opti Plex 5090 Small Form Factor Cable Cover Install Guide

May 2021 Rev. A00

Page Summary Contents For Dell OptiPlex 5090 Small Form Factor Cable Cover Install Guide

Page 1 Opti Plex 5090 Small Form Factor Cable Cover Install Guide May 2021 Rev. A00
Page 2 Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3 Contents Chapter 1: Before you begin ......................................................................................................... Chapter 2: Dell Opti Plex Tower Cable Cover.................
Page 4 Before you begin Steps 1. Save and close all open files and exit all open applications. 2. Shut down your system: Click Start > Power > Shut down . NOTE: If you are using a Linux operating syste...
Page 5 Dell Opti Plex Tower Cable Cover The cable cover for the Opti Plex 5090 Small Form Factor system protects the ports and organize cables that are connected to the system unit. Steps 1. Follow the instr...
Page 6 3. Align the cable cover retaining hooks into the slots on the Opti Plex 5090 Small Form Factor chassis. CAUTION: Take care not to bend or break the delicate plastic hooks. Dell Opti Plex Tower Cable ...
Page 7 4. Gently press down on the cable cover until it clicks into place. 5. Slide the latch to lock the cable cover in place. Dell Opti Plex Tower Cable Cover
Page 8 NOTE: For added security, use the Kensington cable lock to secure the system unit. Dell Opti Plex Tower Cable Cover
Page 9 After installing the accessory Steps 1. Replace all screws and ensure that no stray screws remain. 2. Connect any external devices, peripherals, or cables you removed before working on your system. 3....
Page 10 Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 1. Self-help resources Self-help resources Re...

Manual Details

Brand Dell
Pages 10
File Size 1.70 MB
Published June 24, 2026
12 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

How do I install the cable cover?

Route cables through the slot, align hooks into chassis slots, press down until it clicks, and slide the latch to lock.

Is the system safe to use while installing the cover?

Yes, but you must shut down the system, disconnect it from power, and unplug all cables first.

Can I use a Kensington cable lock with this system?

Yes, use the Kensington cable lock for added security to secure the system unit.
