Dell OptiPlex 7080 Tower Cable Cover User Guide

Summary

User guide for the Dell OptiPlex Tower cable cover accessory (October 2020 revision A00), documenting installation procedures to protect ports and cables on OptiPlex 7000-series tower systems. Covers cable routing through the bottom slot, antenna passage through the top slot, retaining hook alignment with chassis slots, and security lock engagement. Includes removal instructions and cautions about delicate plastic hooks. Intended for IT administrators securing back-panel connections in public or

📄 Preview 📖 Table of Contents Contents ‹ PAGE OF 8 ›

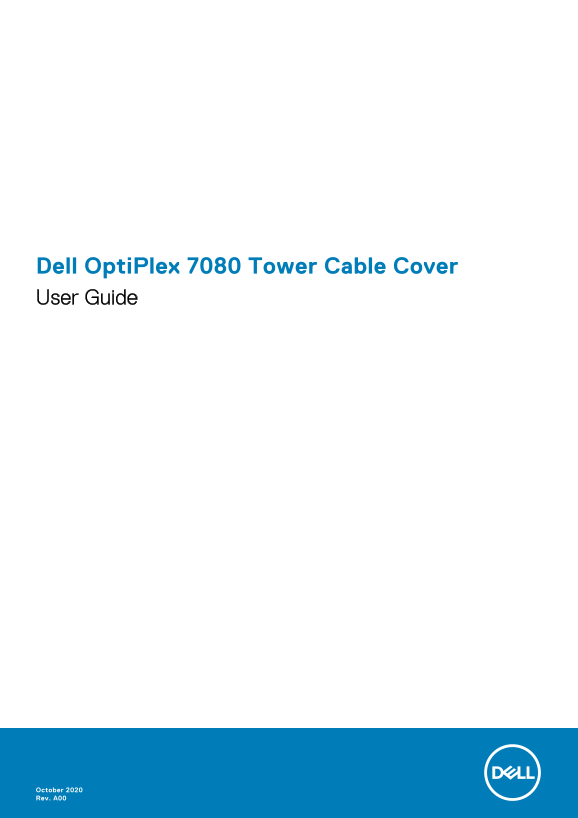

‹ Dell OptiPlex 7080 Tower Cable Cover User Guide - Page 1 ›

Page 1 Text Content

Dell Opti Plex 7080 Tower Cable Cover User Guide

October 2020 Rev. A00

Page Summary Contents For Dell OptiPlex 7080 Tower Cable Cover User Guide

Page 1 Dell Opti Plex 7080 Tower Cable Cover User Guide October 2020 Rev. A00
Page 2 Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3 Contents Chapter 1: Dell Opti Plex Tower Cable Cover.................................................................................. Chapter 2: Getting help.............................................
Page 4 Dell Opti Plex Tower Cable Cover The cable cover for the Dell Opti Plex Tower system helps protect the ports and cables that are connected to the system. About this task Follow these steps to install ...
Page 5 4. Align the cable cover retaining hooks into their slots on the Dell Opti Plex Tower chassis. CAUTION: Take care not to bend or break the delicate plastic hooks. Dell Opti Plex Tower Cable Cover
Page 6 5. Gently press down on the cable cover until it clicks into place. 6. Slide the latch to lock the cable cover in place. Dell Opti Plex Tower Cable Cover
Page 7 NOTE: For added security, use the Noble Wedge slot to secure the system. Dell Opti Plex Tower Cable Cover
Page 8 Getting help Topics: Contacting Dell Contacting Dell Prerequisites NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill...

Manual Details

Brand Dell
Pages 8
File Size 1.81 MB
Published June 18, 2026
4 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

How do I install the cable cover?

Route cables through the bottom slot, draw out cables, connect to ports (turning antennas outwards), align retaining hooks, and gently press down until it clicks.

What should I be careful of during installation?

Take care not to bend or break the delicate plastic retaining hooks. For security, you can use the Noble Wedge slot.

Do the images in the user guide match my system?

No, please note that images shown may vary depending on your specific system configuration.
