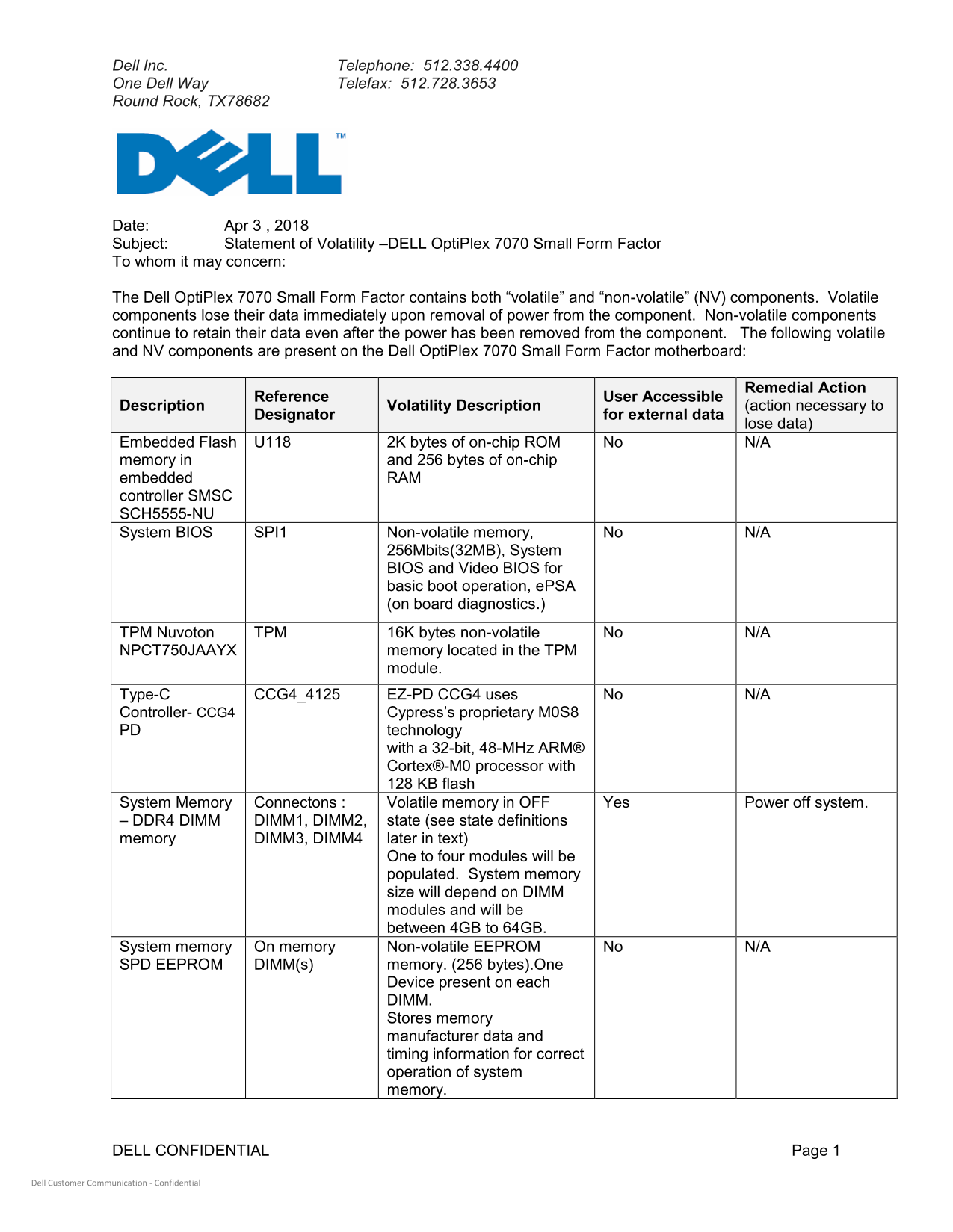

Date: Apr 3 , 2018 Subject: Statement of Volatility –DELL Opti Plex 7070 Small Form Factor To whom it may concern:

The Dell Opti Plex 7070 Small Form Factor contains both “volatile” and “non-volatile” (NV) components. Volatile components lose their data immediately upon removal of power from the component. Non-volatile components continue to retain their data even after the power has been removed from the component. The following volatile and NV components are present on the Dell Opti Plex 7070 Small Form Factor motherboard:

Remedial Action

Reference User Accessible

Description Volatility Description (action necessary to

Designator for external data

lose data)

Embedded Flash U118 2K bytes of on-chip ROM No N/A memory in and 256 bytes of on-chip embedded RAM controller SMSC SCH5555-NU System BIOS SPI1 Non-volatile memory, No N/A

256Mbits(32MB), System BIOS and Video BIOS for basic boot operation, e PSA (on board diagnostics.)

TPM Nuvoton TPM 16K bytes non-volatile No N/A NPCT750JAAYX memory located in the TPM

module.

Type-C CCG4_4125 EZ-PD CCG4 uses No N/A Controller- CCG4 Cypress’s proprietary M0S8 PD technology

with a 32-bit, 48-MHz ARM® Cortex®-M0 processor with 128 KB flash

System Memory Connectons : Volatile memory in OFF Yes Power off system. – DDR4 DIMM DIMM1, DIMM2, state (see state definitions memory DIMM3, DIMM4 later in text)

One to four modules will be populated. System memory size will depend on DIMM modules and will be between 4GB to 64GB.

System memory On memory Non-volatile EEPROM No N/A SPD EEPROM DIMM(s) memory. (256 bytes).One

Device present on each DIMM. Stores memory manufacturer data and timing information for correct operation of system memory.
