Dell Installation Instructions for AMD™ Opteron™ 2000 and 8000 Series Processors Owner's Manual
Summary
This document provides installation instructions for AMD Opteron 2000 and 8000 Series processors. It covers safety precautions, processor socket handling guidelines, thermal grease application procedures, and step-by-step installation procedures including opening the processor socket lever and proper processor seating. The manual is intended for trained service technicians performing system maintenance and upgrades.

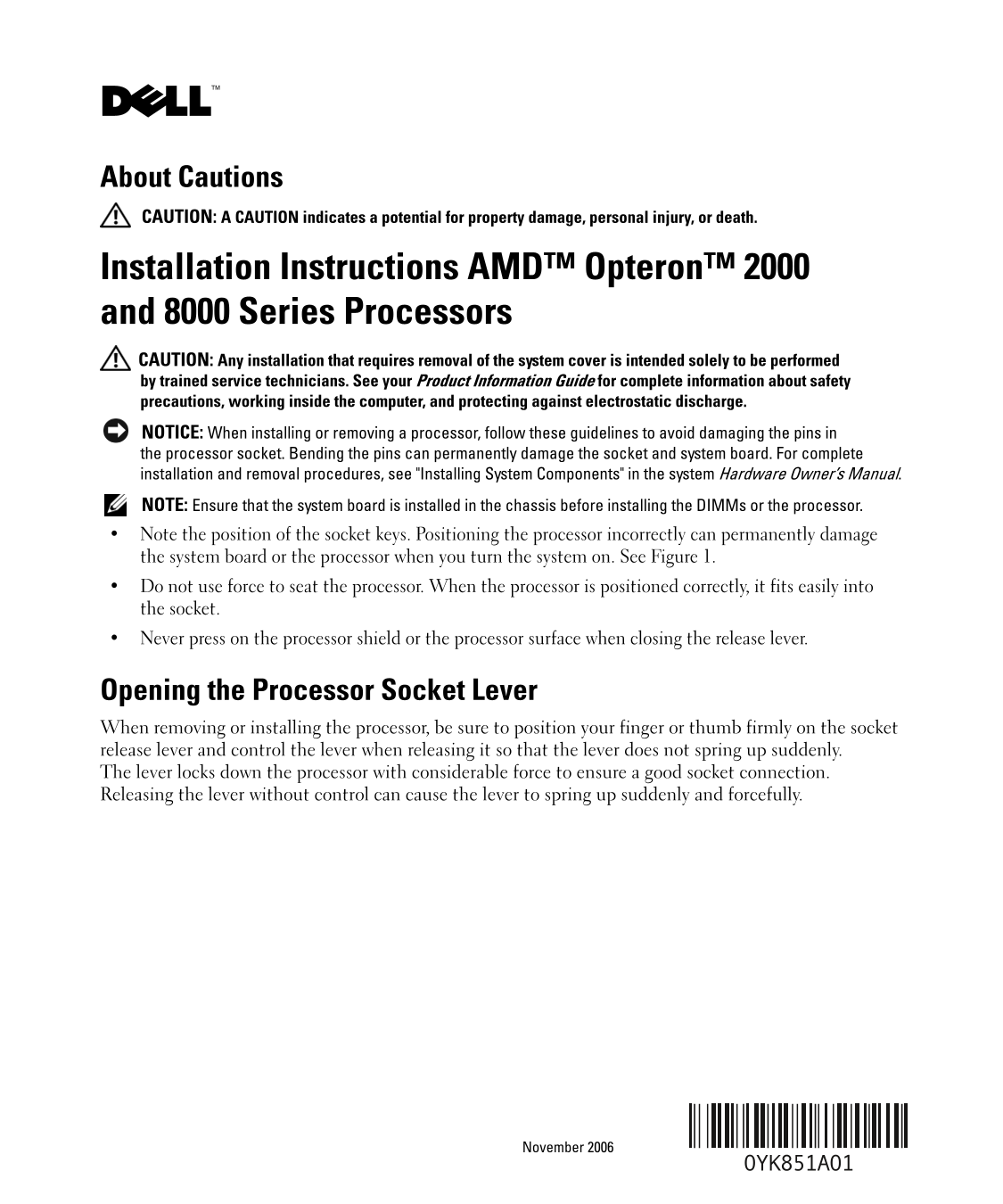

Page 1 Text Content
About Cautions CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.
Installation Instructions AMD™ Opteron™ 2000 and 8000 Series Processors CAUTION: Any installation that requires removal of the system cover is intended solely to be performed by trained service technicians. See your Product Information Guide for complete information about safety precautions, working inside the computer, and protecting against electrostatic discharge. NOTICE: When installing or removing a processor, follow these guidelines to avoid damaging the pins in the processor socket. Bending the pins can permanently damage the socket and system board. For complete installation and removal procedures, see "Installing System Components" in the system Hardware Owner’s Manual. NOTE: Ensure that the system board is installed in the chassis before installing the DIMMs or the processor. Note the position of the socket keys. Positioning the processor incorrectly can permanently damage the system board or the processor when you turn the system on. See Figure 1. Do not use force to seat the processor. When the processor is positioned correctly, it fits easily into the socket. Never press on the processor shield or the processor surface when closing the release lever.
Opening the Processor Socket Lever When removing or installing the processor, be sure to position your finger or thumb firmly on the socket release lever and control the lever when releasing it so that the lever does not spring up suddenly. The lever locks down the processor with considerable force to ensure a good socket connection. Releasing the lever without control can cause the lever to spring up suddenly and forcefully.
November 2006
Page Summary Contents For Dell Installation Instructions for AMD™ Opteron™ 2000 and 8000 Series Processors Owner's Manual
Manual Details
| Brand | Dell |
|---|---|
| Pages | 21 |
| File Size | 2.37 MB |
| Published | June 29, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Who should install or service the computer system cover?
Only trained service technicians are intended to perform installations that require removal of the system cover.
How must I handle the processor socket release lever?
Position your finger firmly on the lever and control it when releasing, otherwise it may spring up suddenly and forcefully.
What is the proper method for applying thermal grease?
Apply an even layer using the enclosed applicator to form three small spirals over the processor, avoiding electrical traces.
Can I damage the system board or CPU socket?
Yes, improper positioning (without correct socket keys) or excessive force when seating the processor can cause permanent damage.
