Page 1

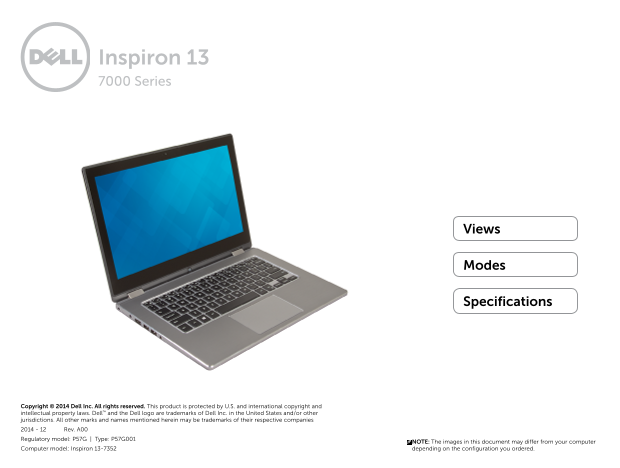

Inspiron 13 7000 Series Views Modes Specifications Copyright © 2014 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell™ a...
Page 2
Views Specifications Power/Battery status light Indicates the power state and battery state of the computer. Solid white — Power adapter is connected to the computer and the battery is being charged. ...
Page 3
Views Specifications Security-cable slot USB 3.0 port Connect a security cable to prevent unauthorized Connect peripherals such as storage devices, printers, movement of your computer. and so on. Prov...
Page 4
Views Specifications Power button USB 2.0 port Press to turn on the computer if it is turned off or in Connect peripherals such as storage devices, printers, Sleep state. and so on. Provides data tran...
Page 5
Views Specifications Left-click area Right-click area Press to left‑click. Press to right‑click. Touch pad Move your finger on the touch pad to move the mouse pointer. Tap to left‑click and two finger...
Page 6
Views Specifications Display Left microphone Camera-status light Provides high‑quality digital sound input for audio Turns on when the camera is in use. recording, voice calls, and so on. Right microp...
Page 7
Modes Notebook Tablet Tablet Stand Tent
Page 8
Specifications Views Dimensions and weight Height 19 mm (0.75 in) Width 330 mm (13 in) Depth 222 mm (8.74 in) Weight (maximum) 1.77 kg (3.90 lb) NOTE: The weight of your computer varies depending on t...
Page 9
Specifications Views System information Computer model Inspiron 13‑7352 Processor 5th generation Intel Core i3 5th generation Intel Core i5 5th generation Intel Core i7 Chipset Integrated in the proce...
Page 10
Specifications Views Memory Slot One SODIMM slot Type DDR3L Speed 1600 MHz Configurations supported 4 GB and 8 GB Dimensions and System Ports and Memory Communications Video Audio Storage weight infor...
Page 11
Specifications Views Ports and connectors External: USB One USB 3.0 port One USB 2.0 port One USB 3.0 port with Power Share Audio/Video One HDMI port One headset port Internal: M.2 card One M.2 card s...
Page 12
Specifications Views Communications Wireless Wi‑Fi 802.11b/g/n Wi‑Fi 802.11ac Bluetooth 4.0 Wi Di Dimensions and System Ports and Memory Communications Video Audio Storage weight information connector...
Page 13
Specifications Views Video Controller Intel HD Graphics Memory Shared system memory Dimensions and System Ports and Memory Communications Video Audio Storage weight information connectors Media‑card C...
Page 14
Specifications Views Audio Controller Realtek ALC3234 with Waves Maxx Audio Speakers Two Speaker output: Average 2 W Peak 2.5 W Microphone Digital‑array microphones in camera assembly Volume controls ...
Page 15
Specifications Views Storage Interface SATA 3 Gbps Hard drive One 2.5‑inch drive Dimensions and System Ports and Memory Communications Video Audio Storage weight information connectors Media‑card Comp...
Page 16
Specifications Views Media-card reader Type One 2‑in‑1 slot Cards supported SD card Multi Media Card (MMC) Dimensions and System Ports and Memory Communications Video Audio Storage weight information ...
Page 17
Specifications Views Display Type 13.3‑inch Full HD WLED touch Refresh rate 60 Hz Operating angle 0 degree (closed) to 360 degrees Viewing angle 160 degrees Controls Brightness can be controlled using...
Page 18
Specifications Views Keyboard Type Backlit keyboard Shortcut keys Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary funct...
Page 19
Keyboard Shortcut keys Mute audio Turn off/on wireless Decrease volume Pause/Break Increase volume Sleep Play previous track/chapter Toggle scroll lock Toggle Fn‑key lock Play/Pause Play next track/ch...
Page 20
Specifications Views Camera Resolution: Still image 0.92 megapixel Video 1280 x 720 (HD) at 30 fps (maximum) Diagonal viewing angle 74 degrees Dimensions and System Ports and Memory Communications Vid...
Page 21
Specifications Views Touch pad Resolution: Horizontal 304.8 dpi Vertical 304.8 dpi Dimensions: Width 102 mm (4.01 in) Height 62 mm (2.44 in) Dimensions and System Ports and Memory Communications Video...
Page 22
Specifications Views Battery Type 3‑cell “smart” lithium ion (65 WHr) Dimensions: Width 77.20 mm (3.04 in) Depth 254 mm (10 in) Height 6.80 mm (0.27 in) Weight (maximum) 0.25 kg (0.55 lb) Voltage 11.4...
Page 23
Specifications Views Power adapter Type 45 W Input voltage 100 VAC–240 VAC Input frequency 50 Hz–60 Hz Input current (maximum) 1.30 A Output current (maximum) 2.31 A Rated output voltage 19.50 VDC Tem...
Page 24
Specifications Views Computer environment Airborne contaminant level G1 as defined by ISA‑S71.04‑1985 Operating Storage Temperature range 0°C to 35°C (32°F to 95°F) –40°C to 65°C (–40°F to 149°F) Rela...
