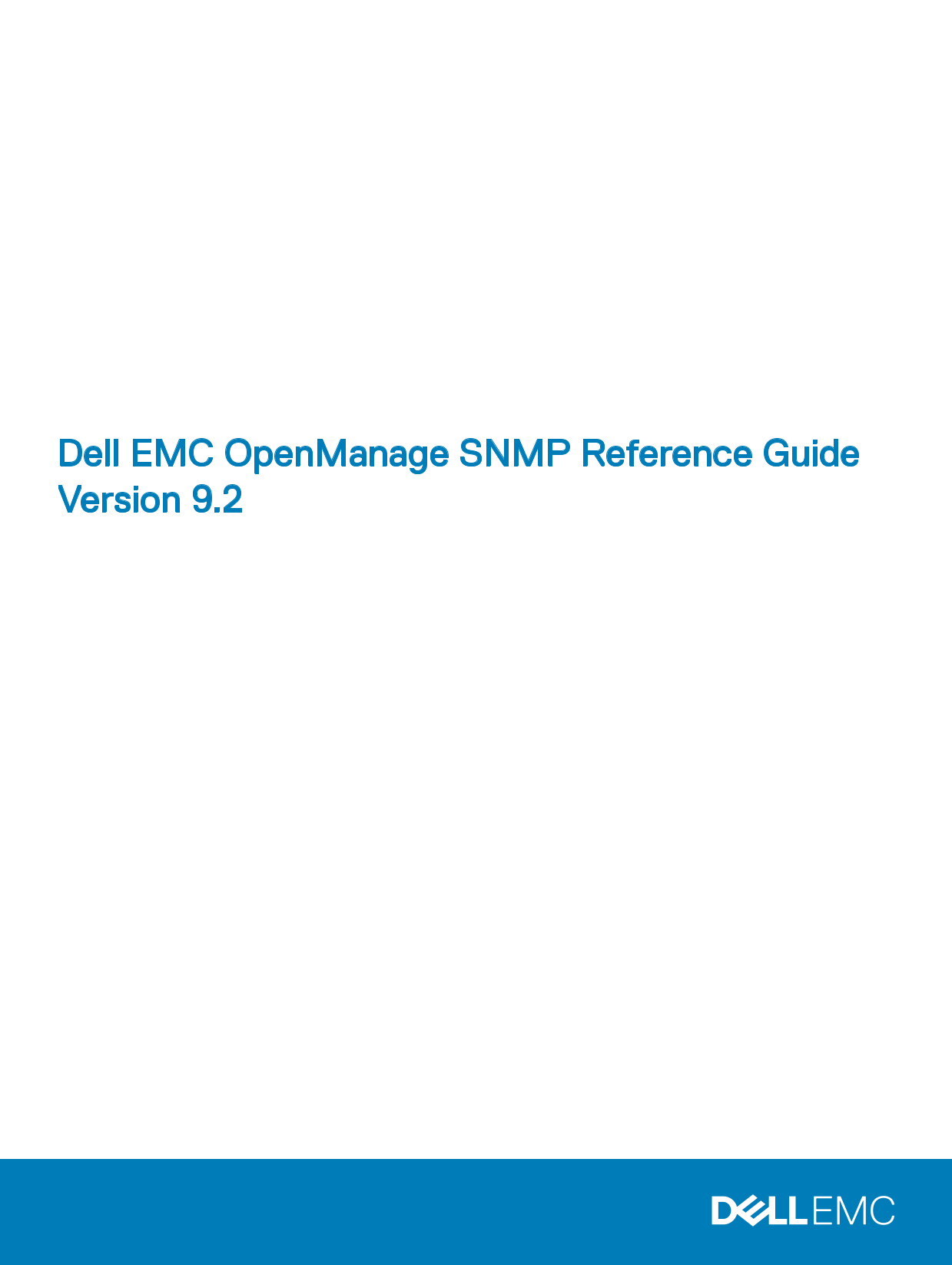

Dell EMC Open Manage SNMP Reference Guide Version 9.2
Page Summary Contents For Dell EMC OpenManage SNMP Reference Guide Version 9.2
Page 1
Dell EMC Open Manage SNMP Reference Guide Version 9.2
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents 1 Introduction....................................................................................................................................................7 What’s New in this release....
Page 4
Thermal Group................................................................................................................................................................ Thermal Group Tables.........
Page 5
Array Disk Enclosure Connection Table.................................................................................................................397 Array Disk Channel Connection Table..............
Page 6
7 Standard Data Type Definitions.................................................................................................................. Common Data Types.......................................
Page 7
Introduction This reference guide provides information about the Simple Network Management Protocol (SNMP) Management Information Base (MIB) which is applicable for Dell EMC Open Manage. NOTE: This gu...
Page 8
Supported SNMP Versions Table 1. Supported SNMP Versions Operating System Supported OMSA SNMP version Windows SNMP v1 Linux SNMP v1 Managed Object Used in This Document The MIB is divided into several...
Page 9
Server Administrator Instrumentation MIB The Server Administrator Instrumentation MIB ( filename 10892.mib ) provides instrumentation data that allows you to monitor the health of a system with SNMP m...
Page 10
Section Topics MIB Group Numbers 16 BIOS Setup Control Group — defines variables for BIOS functions such as boot sequence, speakers, Wake on the local area network (LAN), diskettes, ports, and network...
Page 11
Section Topics MIB Group Numbers 27 Storage Management Alert Reference — lets you monitor the health of NA storage resources such as controllers, connectors, array disks, and virtual disks Server Admi...
Page 12
Frequently Used Terms in Variable Names The following terms are frequently used in the name of a MIB variable: Capability refers to the actions an object can perform, or to actions that can be taken b...
Page 13
Table 8. UUID Table Entry Name u UIDTable Entry Object ID 1.3.6.1.4.1.674.10892.1.300.20.1 Description Defines the UUID table entry. Syntax UUIDTable Entry Access Not accessible Index u UIDIndex u UID...
Page 14
Access Read-only Read-only Section Organization Sections in this reference guide are based on the Server Administrator MIBs, so the complexity of each section depends on the complexity of each MIB gro...
Page 15
Data type of the variable (for example: integer, string, octet string) Whether the variable is accessible, not accessible, or read-only Index or indexes, if applicable For each MIB group that has uniq...
Page 16
Table 13. ROOT CCITT(0) ISO(1) ORG(3) DOD(6) INTERNET(1) MGMT(2) MIB(1) EXPERIMENTAL( 3) PRIVATE(4) ENTERPRISES(1) DELL (674) SNMPv2(6) In the preceding example, the OID prefix for the Dell enterprise...
Page 17
Two drawbacks to SNMP traps are that they are sent using UDP, which is not a guaranteed delivery mechanism, and that they are not acknowledged by the receiver. An SNMP trap message contains the trap’s...
Page 18
Server Administrator Group The Server Administrator group comprises of the following sections: Instrumentation MIB Version Group Systems Management Software Group System State Group Chassis Informatio...
Page 19
Field Replaceable Unit Group Instrumentation MIB Version Group The Instrumentation Management Information Base (MIB) Version Group defines the attributes that identify the version of the Instrumentati...
Page 20
Description Defines the maintenance version number for the version of this MIB supported by the systems management software. For example, if the MIB version is 1.2.3, the maintenance version number is...
Page 21
Table 19. Systems Management Software Build Number Name system Management Software Build Number Object ID 1.3.6.1.4.1.674.10892.1.100.3 Description Defines the build number of the systems management s...
Page 22
Table 24. Systems Management Software URL Name Name system Management Software URLName Object ID 1.3.6.1.4.1.674.10892.1.100.8 Description Defines the universal resource locator (URL) of the systems m...
Page 23
Table 29. Systems Management Software Manufacturer Name Name system Management Software Manufacturer Name Object ID 1.3.6.1.4.1.674.10892.1.100.13 Description Defines the manufacturer of the systems m...
Page 24
System State Group The Management Information Base (MIB) variables presented in this section enable you to track various attributes that describe the state of the critical components supported by your...
Page 25
List 2 Variables that provide health status of each component in associated subsystem in chassis: system State Power Supply Status Details system State Voltage Status Details system State Amperage Sta...
Page 26
Table 35. System State Chassis Index Name system Statechassis Index Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.1 Description Defines the index (one-based) of this chassis. Syntax Dell Object Range Acc...
Page 27
Access Read-only Table 40. System State Power Unit Status Redundancy Name system State Power Unit Status Redundancy Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.6 Description Defines the system status o...
Page 28
Table 44. System State Power Supply Status Details Name system State Power Supply Status Details Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.10 Description Defines the status of all power supplies in t...
Page 29
Table 48. System State Amperage State Details Name system State Amperage State Details Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.14 Description Defines the state of all current probes in this chassis...
Page 30
Table 52. System State Cooling Unit Status Redundancy Name system State Cooling Unit Status Redundancy Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.18 Description Defines the state of all cooling units ...
Page 31
Table 56. System State Cooling Device Status Details Name system State Cooling Device Status Details Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.22 Description Defines the status of all cooling devices...
Page 32
Table 60. System State Memory Device State Details Name system State Memory Device State Details Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.26 Description Defines the state of all memory devices in th...
Page 33
Table 64. System State Chassis Intrusion Status Combined Name system State Chassis Intrusion Status Combined Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.30 Description Defines the intrusion status of a...
Page 34
Description Defines the individual status of all AC power switches in this chassis. The first byte returned represents the status of the first AC power switch, the second byte returned represents the ...
Page 35
Access Read-only Table 73. System State Redundant Memory Unit Status Redundancy Name system State Redundant Memory Unit Status Redundancy Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.39 Description Defi...
Page 36
Description Lists the status of each power unit of this chassis. The results are returned as a binary octet string where each byte of the octet string represents the status of a power unit. The first ...
Page 37
Access Read-only Table 82. System State Redundant Memory Unit Status Combined Name system State Redundant Memory Unit Status Combined Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.48 Description Defines ...
Page 38
Table 86. System State Battery Status Combined Name system State Battery Status Combined Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.52 Description Defines the combined status of all batteries of this ...
Page 39
Syntax Dell Status Access Read-only Table 91. System State SD Card Device Status List Name system State SDCard Device Status List Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.57 Description Lists the st...
Page 40
Table 93. Chassis Information Table Entry Name chassis Information Table Entry Object ID 1.3.6.1.4.1.674.10892.1.300.10.1 Description Defines the chassis information table entry. Syntax Chassis Inform...
