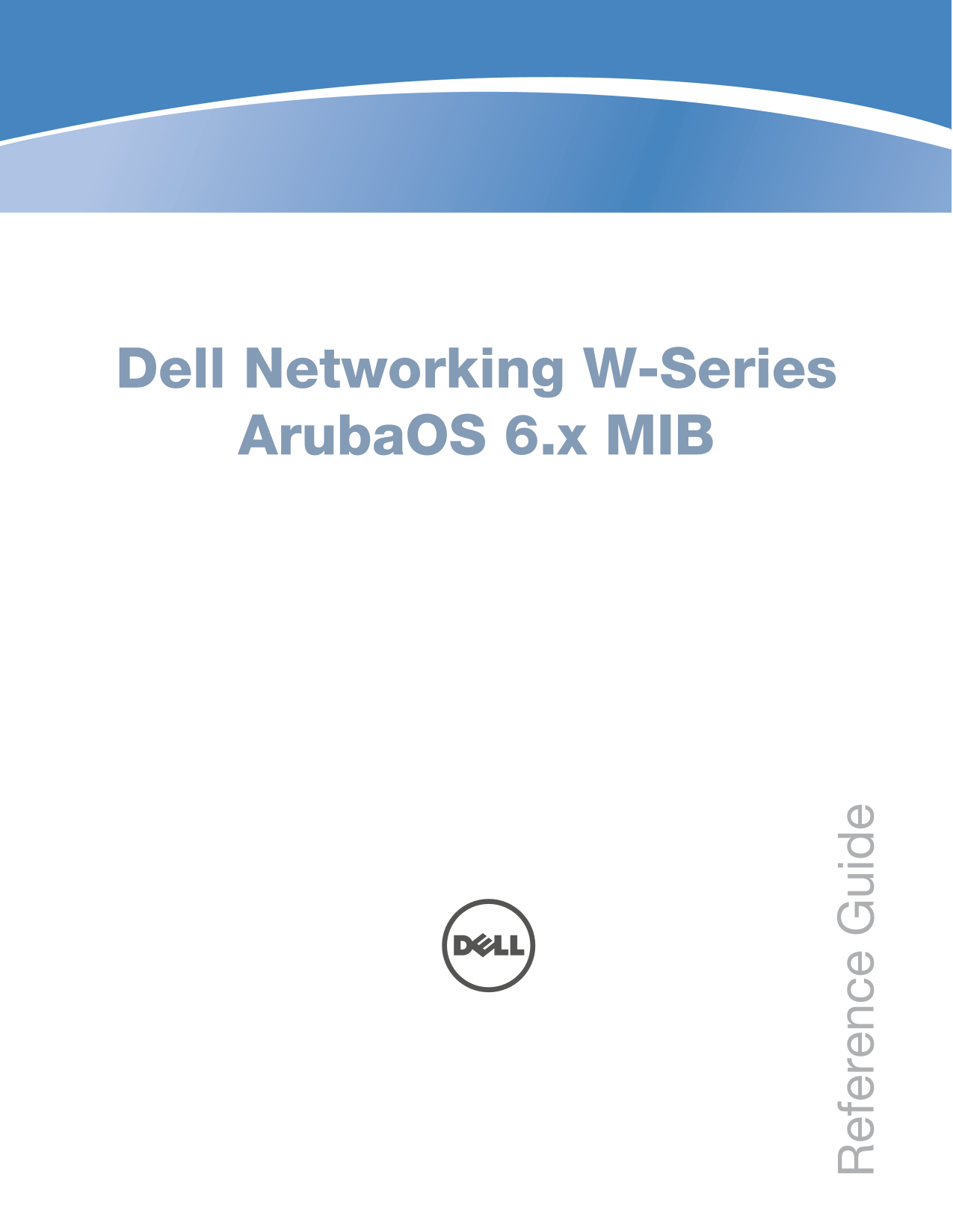

Dell Networking W-Series Aruba OS 6.x MIB
ef er en ce ui
Page Summary Contents For Dell ArubaOS 6.4.x MIB Reference Guide
Page 1
Dell Networking W-Series Aruba OS 6.x MIB ef er en ce ui
Page 2
Copyright © 2014 Aruba Networks, Inc. Aruba Networks trademarks include , Aruba Networks®, Aruba Wireless Networks®, the registered Aruba the Mobile Edge Company logo, and Aruba Mobility Management Sy...
Page 3
Contents Chapter 1 About this Guide ......................................................................................9 Contents ......................................................................
Page 4
4 | Dell Networking W-Series Aruba OS 6.x MIB | Reference Guide
Page 5
Tables Table 1 Contents Overview ................................................................................................9 Table 2 Conventions.....................................................
Page 6
6 | Tables Dell Networking W-Series Aruba OS 6.x MIB | Reference Guide
Page 7
Figures Figure 1 High Level MIB Hierarchy ....................................................................................16 Figure 2 CLI Interface ...................................................
Page 8
8 | Figures Dell Networking W-Series Aruba OS 6.x MIB | Reference Guide
Page 9
Chapter 1 About this Guide This manual is for network administrators and operators responsible for managing the controller. MIB module tables and OIDs are no longer documented in this guide. To view c...
Page 10
Table 2 Conventions Type Style Description System items This fixed-width font depicts the following: Sample screen output, System prompts, Filenames, software devices, and certain commands when mentio...
Page 11
Table 3 Frequently Used Acronyms (Continued) Acronym Definition DPD Dead Peer Detection DSS Direct Spread Spectrum EAP Extensible Authentication Protocol EDCA Enhanced Distributed Channel Access EIRP ...
Page 12
Table 3 Frequently Used Acronyms (Continued) Acronym Definition NTP Network Time Protocol OFDM Orthogonal Frequency Division Multiplexing OID Object Identifier OUI Organizational Unit Identifier PAP P...
Page 13
Table 3 Frequently Used Acronyms (Continued) Acronym Definition VRRP Virtual Router Redundancy Protocol VSA Vendor Specific Attributes WEP Wired Equivalent Protocol WINS Windows Internet Naming Servic...
Page 14
14 | About this Guide Dell Networking W-Series Aruba OS 6.x MIB | Reference Guide
Page 15
Chapter 2 MIBs Overview This chapter provides an overview of the Aruba OS Enterprise MIBs in the following sections: “MIBs” on page 15 “SNMP” on page 16 “Traps” on page 17 MIBs A Management Informatio...
Page 16
Figure 1 High Level MIB Hierarchy MIB is one of the elements of Simple Network Management Protocol (SNMP), which is used to manage network devices. To deliver information between devices, every object...
Page 17
embedded in the controller firmware, unlike some devices such as servers that require the agent to be installed separately. MIBs are used for communication between the Managers and the Agents. The OID...
Page 18
Ping alarms are used to ping network devices at regular intervals. If a device fails to respond, an alarm (SNMP trap) will be sent. Control Relays Relay outputs enable operating remote site equipment....
Page 19
Chapter 3 Using MIBs This chapter provides information on and examples of using MIBs. “Downloading MIB Files” on page 19 “Reading MIB Files” on page 20 “SNMP File” on page 25 “HP Open View” on page 26...
Page 20
Figure 3 Graphical User Interface Reading MIB Files This section describes how to interpret the basic components of a MIB file. To determine the OIDs, viewing the file snmp.h may be necessary, which i...
Page 21
Integer32, Unsigned32, Counter32, Ip Address, NOTIFICATION-TYPE FROM SNMPv2-SMI TDomain, Display String, Phys Address, TAddress, Time Interval, Row Status, Storage Type, Test And Incr, Mac Address, Tr...
Page 22
ORGANIZATION "Aruba Wireless Networks" CONTACT-INFO "Postal: 1322 Crossman Avenue Sunnyvale, CA 94089 E-mail: [email protected] Phone: +1 408 227 4500" DESCRIPTION "...
Page 23
DESCRIPTION INDEX { wlsx Cts Index } ::= { wlsx Cts Request Table 1 } Wlsx Cts Request Entry ::= SEQUENCE wlsx Cts Index Integer32, wlsx Cts Opcode Display String, wlsx Cts Cookie Display String, wlsx...
Page 24
DESCRIPTION CTS row status ::= { wlsx Cts Request Entry 6 } Closing Line Following is the closing line—the end of the MIBs file. END 24 | Using MIBs Dell Networking W-Series Aruba OS 6.x MIB | Referen...
Page 25
OID Flow Chart Figure 4 illustrates the tree of the CTS MIB, relative to the Dell MIB. Figure 4 CTS OIDs Relative to Dell Aruba 1.3.6.1.4.1.14823 Aruba Enterprise MIB Modules 1.3.6.1.4.1.14823.2 Switc...
Page 26
{ "wlsx Enterprise Mib Modules", HASHNEXT("1.3.6.1.4.1.14823.2.2.1") }, The following rows list the CTS MIB OIDs. { "wlsx Cts MIB", HASHNEXT("1.3.6.1.4.1.14823.2.2.1...
Page 27
Chapter 4 MIB Modules and Traps This chapter provides an overview of the Aruba OS MIB modules and traps. It all includes textual conventions. This chapter includes the following sections: “AP and AM M...
Page 28
Controller Transport Service All MIB tables and MIB OIDs in the Controller Transport Service were deprecated in Aruba OS 5.0 and are no longer supported. This module provides information about the Con...
Page 29
packets. The available SNR values include signal strength (total, maximum, minimum). Additional information is the number of packets that were transmitted during the sample time. The SNR MIBs are list...
Page 30
User6 module The User6 module supports IPv6 users. This module provides information about the users, the party connected to the controller. Information includes the total number of users, name and acc...
Page 31
Index IF External (IF EXT) Mesh access point ...............................................................27 mobility monitor agent .....................................................................
Page 32
32 | Index Dell Networking W-Series Aruba OS 6.x MIB | Reference Guide
