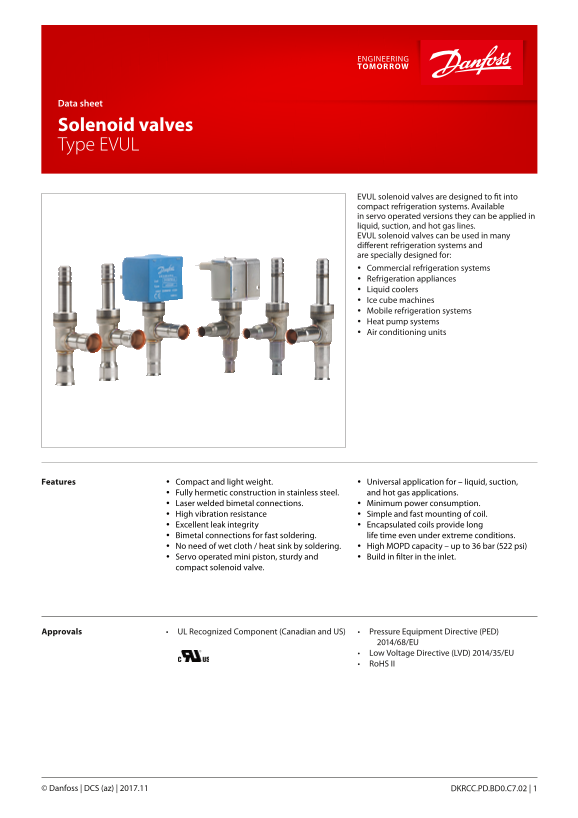

Page 1
Data sheet Solenoid valves Type EVUL EVUL solenoid valves are designed to fit into compact refrigeration systems. Available in servo operated versions they can be applied in liquid, suction, and hot g...
Page 2
Data sheet | Solenoid valves, Type EVUL Technical data Refrigerants Ambient temperature R744, R22/R407C, R404A/R507, R410A, R134a, -40 °C / -40 °F – 50 °C / 122 °F R407A, R23, R290, R407F, R448A, R449...
Page 3
Data sheet | Solenoid valves, Type EVUL Technical data Liquid – Rated capacity 1) [TR] US units (continued) CV–value Type R22/R407C R134a R404A/R507 R407A R410A R290 [gal / min] EVUL 1 0.58 0.47 0.39 ...
Page 4
Data sheet | Solenoid valves, Type EVUL Ordering valve Normally closed (NC) Connections Industrial pack Multi pack Connections Industrial pack Multi pack Valve type an fo ss an fo ss F7 .1 F9 .1 [in.]...
Page 5
Data sheet | Solenoid valves, Type EVUL Ordering coils If coils are below IPx5, they must be protected against ultraviolet, moisture and major impact, Special note for R290: especially the connection ...
Page 6
Data sheet | Solenoid valves, Type EVUL Ordering coils Direct current DC with 1 m cable IP67 (continued) Ambient Supply Power Voltage Frequency Industrial pack Multi pack Type Temp. voltage consumptio...
Page 7
Data sheet | Solenoid valves, Type EVUL Capacity SI Units Liquid capacity Qe [k W] Liquid capacity Qe [k W] Type at pressure drop across valve ∆p [bar] EVUL 1 0.10 1.6 2.2 2.7 3.1 3.5 EVUL 2 0.20 3.1 ...
Page 8
Data sheet | Solenoid valves, Type EVUL Capacity SI Units Suction vapour capacity Qe [k W] Suction vapour capacity Qe [k W] Pressure KV at Evaporating temperature te [°C] Type drop ∆p [bar] EVUL 1 0.1...
Page 9
Data sheet | Solenoid valves, Type EVUL Capacity SI Units Suction vapour capacity Qe [k W] Suction vapour capacity Qe [k W] Pressure (continued) KV at Evaporating temperature te [°C] Type drop ∆p [bar...
Page 10
Data sheet | Solenoid valves, Type EVUL Capacity SI Units Suction vapour capacity Qe [k W] Suction vapour capacity Qe [k W] Pressure (continued) KV at Evaporating temperature te [°C] Type drop ∆p [bar...
Page 11
Data sheet | Solenoid valves, Type EVUL Capacity SI Units Suction vapour capacity Qe [k W] Suction vapour capacity Qe [k W] Pressure (continued) KV at Evaporating temperature te [°C] Type drop ∆p [bar...
Page 12
Data sheet | Solenoid valves, Type EVUL Capacity SI Units Suction vapour capacity Qe [k W] Suction vapour capacity Qe [k W] Pressure (continued) KV at Evaporating temperature te [°C] Type drop ∆p [bar...
Page 13
Data sheet | Solenoid valves, Type EVUL Capacity SI Units Hot gas capacity Qh [k W] Pressure Hot gas capacity Qh [k W] drop KV Evaporating temp. te = -10 °C. Hot gas temp. th = tc + 25 K Type across v...
Page 14
Data sheet | Solenoid valves, Type EVUL Capacity SI Units Hot gas capacity Qh [k W] (continued) Pressure Hot gas capacity Qh [k W] drop KV Evaporating temp. te = -10 °C. Hot gas temp. th = tc + 25 K T...
Page 15
Data sheet | Solenoid valves, Type EVUL Capacity SI Units Hot gas capacity Qh [k W] (continued) Pressure Hot gas capacity Qh [k W] drop KV Evaporating temp. te = -10 °C. Hot gas temp. th = tc + 25 K T...
Page 16
Data sheet | Solenoid valves, Type EVUL Capacity SI Units Hot gas capacity Qh [k W] (continued) Pressure Hot gas capacity Qh [k W] drop KV Evaporating temp. te = -10 °C. Hot gas temp. th = tc + 25 K T...
Page 17
Data sheet | Solenoid valves, Type EVUL Capacity SI Units Hot gas capacity Qh [k W] (continued) Pressure Hot gas capacity Qh [k W] drop KV Evaporating temp. te = -10 °C. Hot gas temp. th = tc + 25 K T...
Page 18
Data sheet | Solenoid valves, Type EVUL Capacity US Units Liquid capacity Qe [TR] Liquid capacity Qe [TR] Type at pressure drop across valve ∆p [psi] [gal / min] EVUL 1 0.12 0.3 0.5 0.6 0.7 0.7 0.8 0....
Page 19
Data sheet | Solenoid valves, Type EVUL Capacity US Units Suction vapour capacity Qe [TR] Pressure Suction vapour capacity Qe [TR] Cv drop at evaporating temperature te [°F] [gal / min] ∆p [psi] -40 -...
Page 20
Data sheet | Solenoid valves, Type EVUL Capacity US Units Suction vapour capacity Qe [TR] Pressure Suction vapour capacity Qe [TR] (continued) Cv drop at evaporating temperature te [°F] [gal / min] ∆p...
Page 21
Data sheet | Solenoid valves, Type EVUL Capacity US Units Suction vapour capacity Qe [TR] Pressure Suction vapour capacity Qe [TR] (continued) Cv drop at evaporating temperature te [°F] [gal / min] ∆p...
Page 22
Data sheet | Solenoid valves, Type EVUL Capacity US Units Suction vapour capacity Qe [TR] Pressure Suction vapour capacity Qe [TR] (continued) Cv drop at evaporating temperature te [°F] [gal / min] ∆p...
Page 23
Data sheet | Solenoid valves, Type EVUL Capacity US Units Suction vapour capacity Qe [TR] Pressure Suction vapour capacity Qe (continued) Cv drop [TR] at evaporating temperature te [°F] [gal / min] ∆p...
Page 24
Data sheet | Solenoid valves, Type EVUL Capacity US Units Hot gas capacity Qh [TR] Pressure drop Hot gas capacity Qh [TR] Cv across valve at condensing temp. tc [°F] Type [gal / min] ∆p [bar] EVUL 1 0...
Page 25
Data sheet | Solenoid valves, Type EVUL Capacity US Units Hot gas capacity Qh [TR] (continued) Pressure drop Hot gas capacity Qh [TR] Cv across valve at condensing temp. tc [°F] Type [gal / min] ∆p [b...
Page 26
Data sheet | Solenoid valves, Type EVUL Capacity US Units Hot gas capacity Qh [TR] Pressure drop Hot gas capacity Qh [TR] (continued) Cv across valve at condensing temp. tc [°F] Type [gal / min] ∆p [b...
Page 27
Data sheet | Solenoid valves, Type EVUL Capacity US Units Hot gas capacity Qh [TR] Pressure drop Hot gas capacity Qh [TR] (continued) Cv across valve at condensing temp. tc [°F] Type [gal / min] ∆p [b...
Page 28
Data sheet | Solenoid valves, Type EVUL Capacity US Units Hot gas capacity Qh [TR] (continued) Pressure drop Hot gas capacity Qh [TR] Cv across valve at condensing temp. tc [°F] Type [gal / min] ∆p [b...
Page 29
Data sheet | Solenoid valves, Type EVUL Design and material specifications No. Description Material No. Description Material an fo ss _0 1A Bi-metallic tube Stainless steel / Cu Armature Stainless ste...
Page 30
Data sheet | Solenoid valves, Type EVUL Dimensions [in.] EVUL 1 – 6 and EVUL 8 mounted with coil with 0.25 in. US spade and weights [lbs] an fo ss .1 Note: the drawings are only representative. an fo ...
Page 31
US Units Connection Net weight Type Solder with coil [in] [in] [in] [in] [in] [in] [in] [in] [in] [in] [mm] [Lbs][in] EVUL 1 2.16 1.18 0.27 0.33 1.45 0.71 0.27 0.38 0.39 1.18 0.4 EVUL 2 2.16 1.18 0.27...
