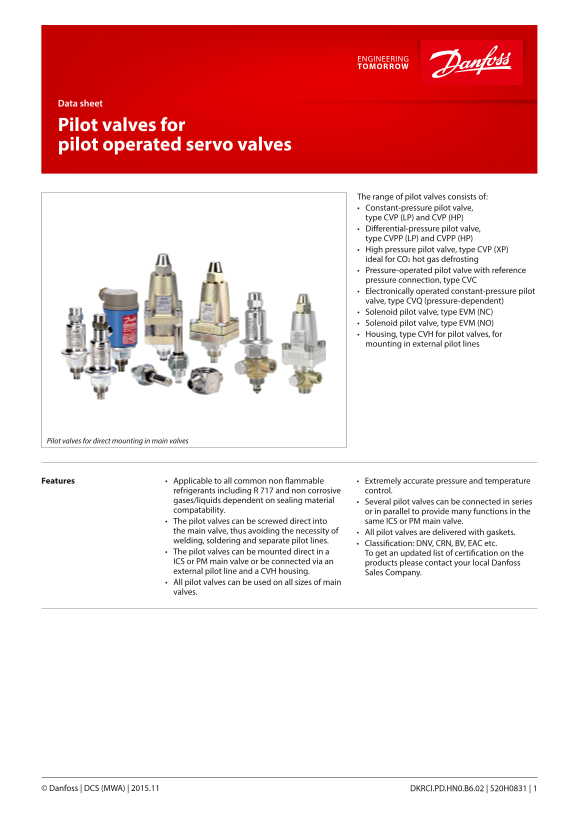

Pilot valves for pilot operated servo valves
The range of pilot valves consists of: • Constant-pressure pilot valve, type CVP (LP) and CVP (HP) • Differential-pressure pilot valve, type CVPP (LP) and CVPP (HP) • High pressure pilot valve, type CVP (XP) ideal for CO2 hot gas defrosting • Pressure-operated pilot valve with reference pressure connection, type CVC • Electronically operated constant-pressure pilot valve, type CVQ (pressure-dependent) • Solenoid pilot valve, type EVM (NC) • Solenoid pilot valve, type EVM (NO) • Housing, type CVH for pilot valves, for mounting in external pilot lines
Pilot valves for direct mounting in main valves
Features • Applicable to all common non flammable • Extremely accurate pressure and temperature
refrigerants including R 717 and non corrosive control. gases/liquids dependent on sealing material • Several pilot valves can be connected in series compatability. or in parallel to provide many functions in the • The pilot valves can be screwed direct into same ICS or PM main valve. the main valve, thus avoiding the necessity of • All pilot valves are delivered with gaskets. welding, soldering and separate pilot lines.
• Classification: DNV, CRN, BV, EAC etc.
• The pilot valves can be mounted direct in a To get an updated list of certification on the ICS or PM main valve or be connected via an products please contact your local Danfoss external pilot line and a CVH housing. Sales Company. • All pilot valves can be used on all sizes of main valves.
DKRCI.PD.HN0.B6.02 | 520H0831 | 1© Danfoss | DCS (MWA) | 2015.11
