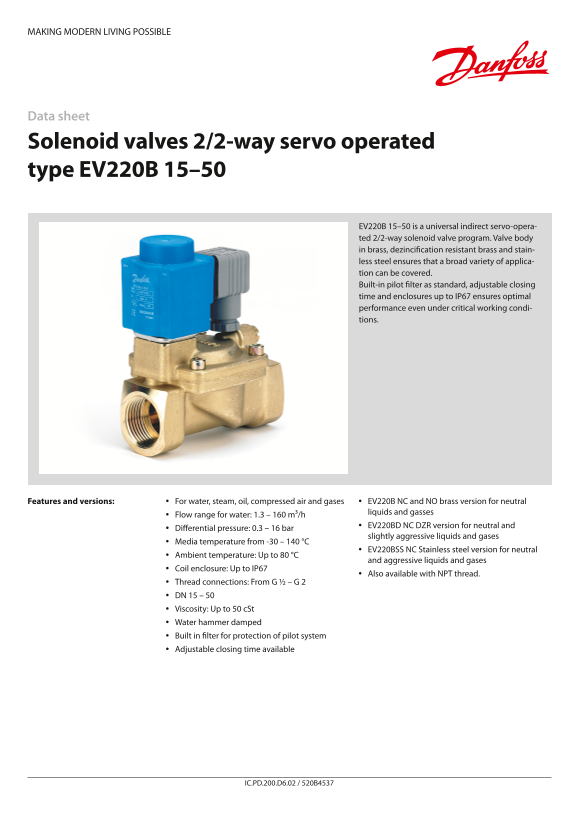

Danfoss Solenoid Valves 2 2-Way Servo Operated Type EV220B 15-50 Datasheet

MAKING MODERN LIVING POSSIBLE

Data sheet

Solenoid valves 2/2-way servo operated type EV220B 15–50

EV220B 15–50 is a universal indirect servo-opera- ted 2/2-way solenoid valve program. Valve body in brass, dezincification resistant brass and stain- less steel ensures that a broad variety of applica- tion can be covered. Built-in pilot filter as standard, adjustable closing time and enclosures up to IP67 ensures optimal performance even under critical working condi- tions.

Features and versions: For water, steam, oil, compressed air and gases EV220B NC and NO brass version for neutral

liquids and gasses

Flow range for water: 1.3 – 160 m³/h

EV220BD NC DZR version for neutral and

Differential pressure: 0.3 – 16 bar

slightly aggressive liquids and gases

Media temperature from -30 – 140 °C

EV220BSS NC Stainless steel version for neutral

Ambient temperature: Up to 80 °C

and aggressive liquids and gases

Coil enclosure: Up to IP67

Also available with NPT thread.

Thread connections: From G ½ – G 2 DN 15 – 50 Viscosity: Up to 50 c St Water hammer damped Built in filter for protection of pilot system Adjustable closing time available

IC.PD.200.D6.02 / 520B4537
