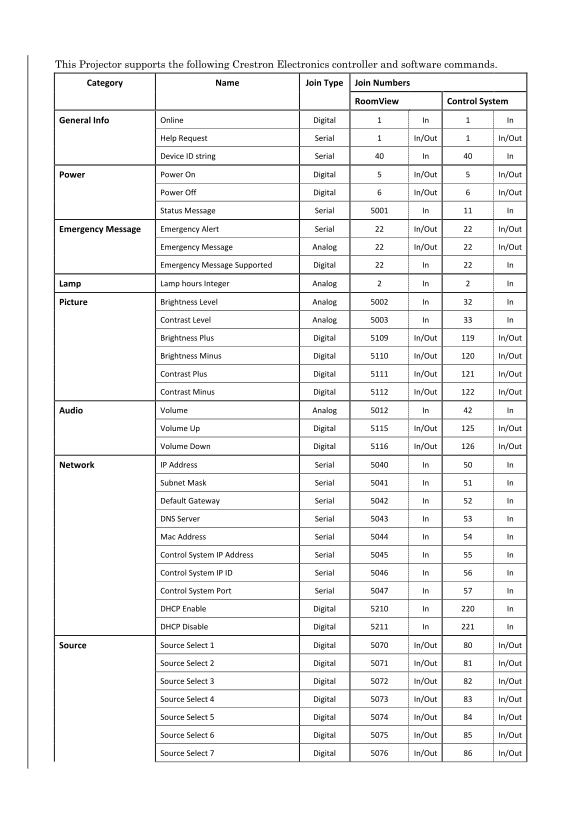

This Projector supports the following Crestron Electronics controller and software commands. Category Name Join Type Join Numbers Room View Control System
General Info Online Digital 1 In 1 In
Help Request Serial 1 In/Out 1 In/Out
Device ID string Serial 40 In 40 In
Power Power On Digital 5 In/Out 5 In/Out
Power Off Digital 6 In/Out 6 In/Out
Status Message Serial 5001 In 11 In
Emergency Message Emergency Alert Serial 22 In/Out 22 In/Out
Emergency Message Analog 22 In/Out 22 In/Out
Emergency Message Supported Digital 22 In 22 In
Lamp Lamp hours Integer Analog 2 In 2 In
Picture Brightness Level Analog 5002 In 32 In
Contrast Level Analog 5003 In 33 In
Brightness Plus Digital 5109 In/Out 119 In/Out
Brightness Minus Digital 5110 In/Out 120 In/Out
Contrast Plus Digital 5111 In/Out 121 In/Out
Contrast Minus Digital 5112 In/Out 122 In/Out
Audio Volume Analog 5012 In 42 In
Volume Up Digital 5115 In/Out 125 In/Out
Volume Down Digital 5116 In/Out 126 In/Out
Network IP Address Serial 5040 In 50 In
Subnet Mask Serial 5041 In 51 In
Default Gateway Serial 5042 In 52 In
DNS Server Serial 5043 In 53 In
Mac Address Serial 5044 In 54 In
Control System IP Address Serial 5045 In 55 In
Control System IP ID Serial 5046 In 56 In
Control System Port Serial 5047 In 57 In
DHCP Enable Digital 5210 In 220 In
DHCP Disable Digital 5211 In 221 In
Source Source Select 1 Digital 5070 In/Out 80 In/Out
Source Select 2 Digital 5071 In/Out 81 In/Out
Source Select 3 Digital 5072 In/Out 82 In/Out
Source Select 4 Digital 5073 In/Out 83 In/Out
Source Select 5 Digital 5074 In/Out 84 In/Out
Source Select 6 Digital 5075 In/Out 85 In/Out
Source Select 7 Digital 5076 In/Out 86 In/Out
