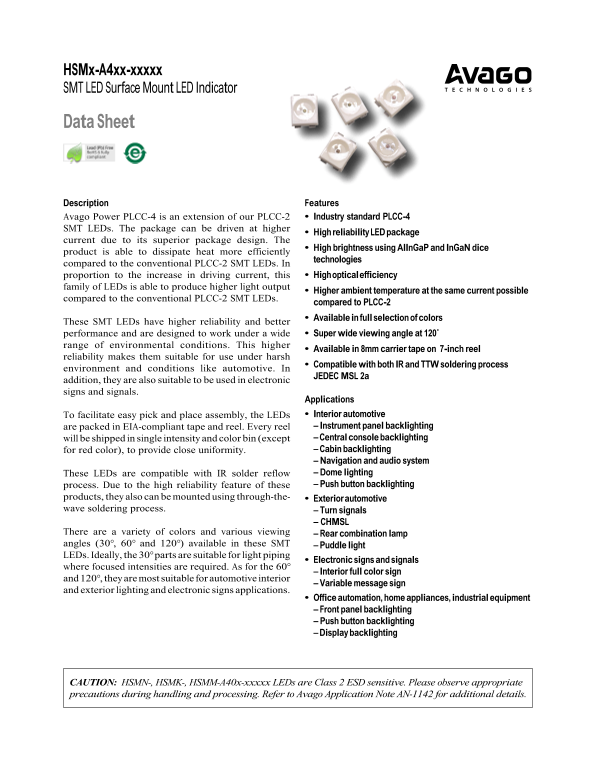

AVAGO TECHNOLOGIES HSMx-A4xx-xxxxx SMT LED Surface Mount LED Indicator Manual

HSMx-A4xx-xxxxx SMT LED Surface Mount LED Indicator

Data Sheet

Description Features Avago Power PLCC-4 is an extension of our PLCC-2 Industry standard PLCC-4 SMT LEDs. The package can be driven at higher

High reliability LED package

current due to its superior package design. The

High brightness using Al In Ga P and In Ga N dice

product is able to dissipate heat more efficiently

technologies

compared to the conventional PLCC-2 SMT LEDs. In proportion to the increase in driving current, this High optical efficiency family of LEDs is able to produce higher light output

Higher ambient temperature at the same current possible

compared to the conventional PLCC-2 SMT LEDs.

compared to PLCC-2 Available in full selection of colors

These SMT LEDs have higher reliability and better performance and are designed to work under a wide Super wide viewing angle at 120˚ range of environmental conditions. This higher

Available in 8mm carrier tape on 7-inch reel

reliability makes them suitable for use under harsh

Compatible with both IR and TTW soldering process

environment and conditions like automotive. In

JEDEC MSL 2a

addition, they are also suitable to be used in electronic signs and signals.

Applications To facilitate easy pick and place assembly, the LEDs Interior automotive are packed in EIA-compliant tape and reel. Every reel – Instrument panel backlighting will be shipped in single intensity and color bin (except – Central console backlighting for red color), to provide close uniformity. – Cabin backlighting – Navigation and audio system These LEDs are compatible with IR solder reflow – Dome lighting process. Due to the high reliability feature of these – Push button backlighting

products, they also can be mounted using through-the- Exterior automotive wave soldering process. – Turn signals

– CHMSL

There are a variety of colors and various viewing – Rear combination lamp angles (30°, 60° and 120°) available in these SMT – Puddle light LEDs. Ideally, the 30° parts are suitable for light piping

Electronic signs and signals

where focused intensities are required. As for the 60°

– Interior full color sign

and 120°, they are most suitable for automotive interior

– Variable message sign

and exterior lighting and electronic signs applications.

Office automation, home appliances, industrial equipment – Front panel backlighting – Push button backlighting – Display backlighting

CAUTION: HSMN-, HSMK-, HSMM-A40x-xxxxx LEDs are Class 2 ESD sensitive. Please observe appropriate precautions during handling and processing. Refer to Avago Application Note AN-1142 for additional details.
