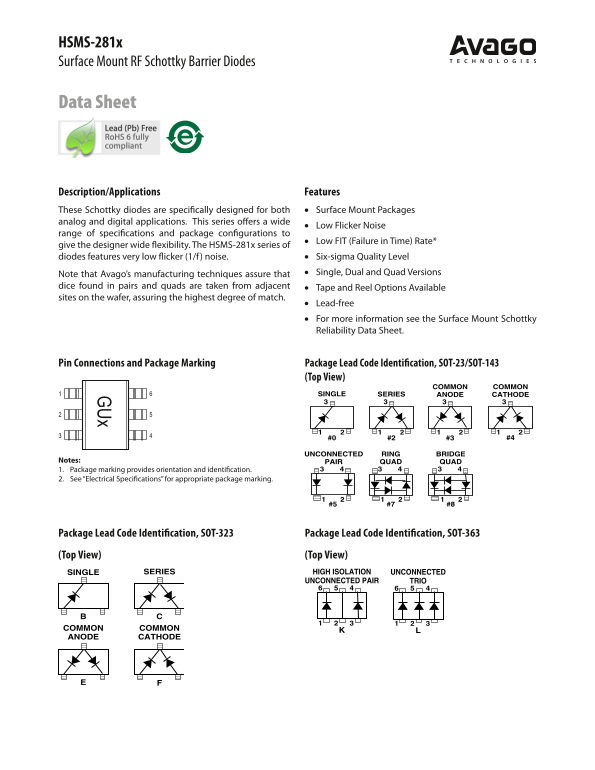

AVAGO TECHNOLOGIES HSMS-281x Surface Mount RF Schottky Barrier Diodes Manual

HSMS-281x Surface Mount RF Schottky Barrier Diodes

Data Sheet

Description/Applications Features These Schottky diodes are specifically designed for both • Surface Mount Packages analog and digital applications. This series offers a wide

• Low Flicker Noise

range of specifications and package configurations to

• Low FIT (Failure in Time) Rate*

give the designer wide flexibility. The HSMS‑281x series of diodes features very low flicker (1/f ) noise. • Six‑sigma Quality Level

Note that Avago’s manufacturing techniques assure that • Single, Dual and Quad Versions

dice found in pairs and quads are taken from adjacent • Tape and Reel Options Available sites on the wafer, assuring the highest degree of match.

• Lead‑free • For more information see the Surface Mount Schottky Reliability Data Sheet.

Pin Connections and Package Marking Package Lead Code Identification, SOT-23/SOT-143

(Top View)

COMMON COMMON

SINGLE SERIES ANODE CATHODE

UNCONNECTED RING BRIDGE

Notes: PAIR QUAD QUAD 1. Package marking provides orientation and identification. 2. See “Electrical Specifications” for appropriate package marking.

GUx #5 #7 #8

Package Lead Code Identification, SOT-323 Package Lead Code Identification, SOT-363 (Top View) (Top View)

SINGLE SERIES HIGH ISOLATION UNCONNECTED

UNCONNECTED PAIR TRIO

COMMON COMMON ANODE CATHODE

COMMON COMMON CATHODE QUAD ANODE QUAD

BRIDGE RING QUAD QUAD
