AVAGO TECHNOLOGIES HSMx-A43x-xxxxx Surface Mount LED Indicator Manual
Summary
Discover high-performance PLCC-4 Surface Mount Technology (SMT) LEDs, featuring a 30° lens design optimized for focused radiation. These durable, high-brightness indicators are essential for demanding applications in the Automotive, Electronic Signs & Signals (ESS), and Industrial sectors. The manual provides comprehensive technical details, covering electrical specifications, color coding, material handling guidelines, and packaging instructions. Ideal for tasks like backlighting displays, exterior lighting, warning signs, and home automation systems requiring high reliability across extreme temperature ranges.

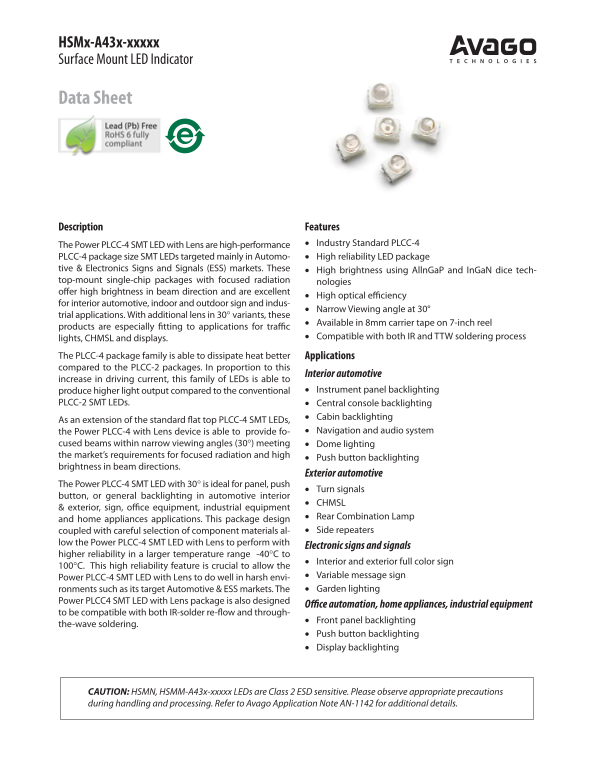

Page 1 Text Content
HSMx-A43x-xxxxx Surface Mount LED Indicator
Data Sheet
Description Features
The Power PLCC-4 SMT LED with Lens are high-performance Industry Standard PLCC-4
PLCC-4 package size SMT LEDs targeted mainly in Automo- High reliability LED package tive & Electronics Signs and Signals (ESS) markets. These High brightness using Alln Ga P and In Ga N dice tech- top-mount single-chip packages with focused radiation nologies offer high brightness in beam direction and are excellent
High optical efficiency
for interior automotive, indoor and outdoor sign and indus-
Narrow Viewing angle at 30°
trial applications. With additional lens in 30 variants, these
Available in 8mm carrier tape on 7-inch reel
products are especially fitting to applications for traffic
lights, CHMSL and displays. Compatible with both IR and TTW soldering process
The PLCC-4 package family is able to dissipate heat better Applications compared to the PLCC-2 packages. In proportion to this
Interior automotive
increase in driving current, this family of LEDs is able to
produce higher light output compared to the conventional Instrument panel backlighting
PLCC-2 SMT LEDs. Central console backlighting
Cabin backlighting
As an extension of the standard flat top PLCC-4 SMT LEDs,
the Power PLCC-4 with Lens device is able to provide fo- Navigation and audio system
cused beams within narrow viewing angles (30) meeting Dome lighting the market’s requirements for focused radiation and high
Push button backlighting
brightness in beam directions.
Exterior automotive
The Power PLCC-4 SMT LED with 30 is ideal for panel, push
Turn signals
button, or general backlighting in automotive interior
CHMSL
& exterior, sign, office equipment, industrial equipment
Rear Combination Lamp
and home appliances applications. This package design
coupled with careful selection of component materials al- Side repeaters
low the Power PLCC-4 SMT LED with Lens to perform with
Electronic signs and signals
higher reliability in a larger temperature range -40C to
Interior and exterior full color sign
100C. This high reliability feature is crucial to allow the
Power PLCC-4 SMT LED with Lens to do well in harsh envi- Variable message sign ronments such as its target Automotive & ESS markets. The Garden lighting
Power PLCC4 SMT LED with Lens package is also designed
Office automation, home appliances, industrial equipment
to be compatible with both IR-solder re-flow and through-
Front panel backlighting
the-wave soldering.
Push button backlighting Display backlighting
CAUTION: HSMN, HSMM-A43x-xxxxx LEDs are Class 2 ESD sensitive. Please observe appropriate precautions during handling and processing. Refer to Avago Application Note AN-1142 for additional details.
Page Summary Contents For AVAGO TECHNOLOGIES HSMx-A43x-xxxxx Surface Mount LED Indicator Manual
Manual Details
| Brand | Avago Technologies |
|---|---|
| Pages | 11 |
| File Size | 221.10 KB |
| Published | May 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How should I handle these PLCC-4 LEDs?
They are Class 2 ESD sensitive; appropriate precautions must be observed during handling and processing.
What soldering processes can this package accommodate?
The PLCC-4 SMT LED is compatible with both IR-wave soldering and through-the-wave soldering.
What viewing angle does the lens version provide?
It provides focused beams within narrow viewing angles of 30°.
In what temperature range can these LEDs operate?
They are designed for high reliability in a large temperature range, from -40°C to 100°C.
