AVAGO TECHNOLOGIES HDSP Series 14.2 mm (0.56 inch) Seven Segment Displays Owner's Manual
Summary
These high-performance 14.2 mm LED seven segment displays are ideal for applications requiring excellent readability, even in strong ambient light. The series offers various colors, sizes, and common anode/cathode options, meeting industry standards for viewing distances up to 7 meters. This manual provides comprehensive data, covering detailed technical specifications, intensity performance graphs, pinouts, and specialized guidance on optimizing contrast enhancement for professional design and integration projects.

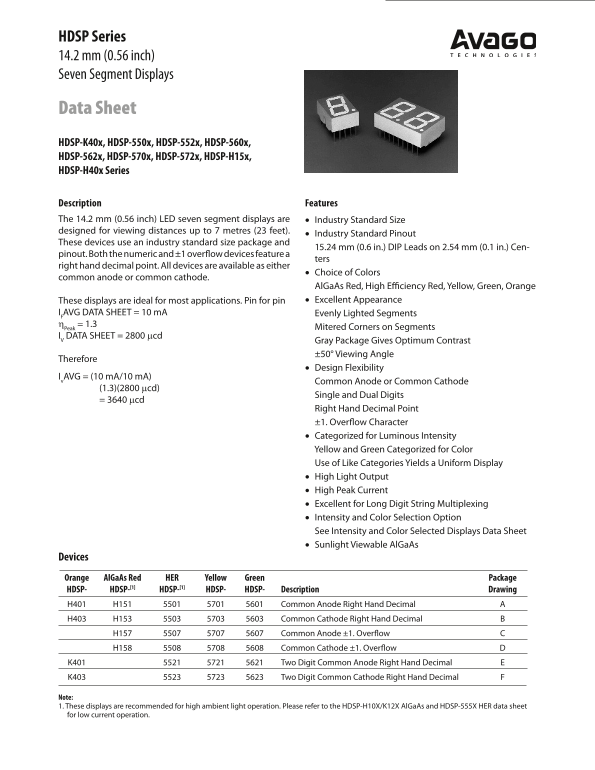

Page 1 Text Content
HDSP Series 14.2 mm (0.56 inch) Seven Segment Displays
Data Sheet HDSP-K40x, HDSP-550x, HDSP-552x, HDSP-560x, HDSP-562x, HDSP-570x, HDSP-572x, HDSP-H15x, HDSP-H40x Series
Description Features The 14.2 mm (0.56 inch) LED seven segment displays are • Industry Standard Size designed for viewing distances up to 7 metres (23 feet).
• Industry Standard Pinout
These devices use an industry standard size package and
15.24 mm (0.6 in.) DIP Leads on 2.54 mm (0.1 in.) Cen-
pinout. Both the numeric and ±1 overflow devices feature a
right hand decimal point. All devices are available as either
• Choice of Colors
common anode or common cathode.
Al Ga As Red, High Efficiency Red, Yellow, Green, Orange These displays are ideal for most applications. Pin for pin • Excellent Appearance
IFAVG DATA SHEET = 10 m A Evenly Lighted Segments h Peak = 1.3
Mitered Corners on Segments
IV DATA SHEET = 2800 mcd
Gray Package Gives Optimum Contrast ±50° Viewing Angle
Therefore
• Design Flexibility
Iv AVG = (10 m A/10 m A)
Common Anode or Common Cathode
(1.3)(2800 mcd)
Single and Dual Digits
= 3640 mcd
Right Hand Decimal Point ±1. Overflow Character • Categorized for Luminous Intensity Yellow and Green Categorized for Color Use of Like Categories Yields a Uniform Display • High Light Output • High Peak Current • Excellent for Long Digit String Multiplexing • Intensity and Color Selection Option See Intensity and Color Selected Displays Data Sheet • Sunlight Viewable Al Ga As
Devices Orange Al Ga As Red HER Yellow Green Package HDSP- HDSP-[1] HDSP-[1] HDSP- HDSP- Description Drawing H401 H151 5501 5701 5601 Common Anode Right Hand Decimal A H403 H153 5503 5703 5603 Common Cathode Right Hand Decimal B H157 5507 5707 5607 Common Anode ±1. Overflow C H158 5508 5708 5608 Common Cathode ±1. Overflow D K401 5521 5721 5621 Two Digit Common Anode Right Hand Decimal E K403 5523 5723 5623 Two Digit Common Cathode Right Hand Decimal F
Note: 1. These displays are recommended for high ambient light operation. Please refer to the HDSP-H10X/K12X Al Ga As and HDSP-555X HER data sheet for low current operation.
Page Summary Contents For AVAGO TECHNOLOGIES HDSP Series 14.2 mm (0.56 inch) Seven Segment Displays Owner's Manual
Manual Details
| Brand | Avago Technologies |
|---|---|
| Pages | 11 |
| File Size | 330.90 KB |
| Published | May 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the standard dimensions and pinout for these displays?
They feature an industry standard size package with 15.24 mm DIP Leads on a 2.54 mm center-pinout.
How should I properly clean or maintain the encapsulation epoxy?
Recommended cleaning solutions include Freon T-E35, Ethanol, Isopropanol, or water with a mild detergent. Ketone family and chlorinated hydrocarbons are not suggested.
Are there versions suitable for battery-powered or low-power use?
Yes, low current displays are available as an option and are recommended for portable applications.
What is the maximum effective viewing angle of the display?
The LED seven segment displays are rated with a consistent ±50° viewing angle.
