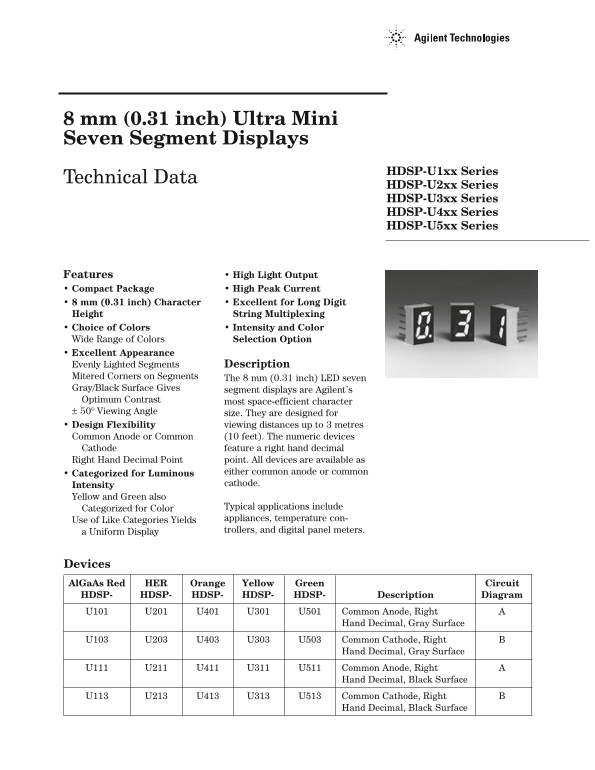

8 mm (0.31 inch) Ultra Mini Seven Segment Displays

HDSP-U1xx Series

Technical Data

HDSP-U2xx Series HDSP-U3xx Series HDSP-U4xx Series HDSP-U5xx Series

Features • High Light Output • Compact Package • High Peak Current • 8 mm (0.31 inch) Character • Excellent for Long Digit Height String Multiplexing • Choice of Colors • Intensity and Color Wide Range of Colors Selection Option • Excellent Appearance Evenly Lighted Segments Description Mitered Corners on Segments The 8 mm (0.31 inch) LED seven Gray/Black Surface Gives segment displays are Agilent’s Optimum Contrast most space-efficient character 50° Viewing Angle size. They are designed for • Design Flexibility viewing distances up to 3 metres Common Anode or Common (10 feet). The numeric devices Cathode feature a right hand decimal Right Hand Decimal Point point. All devices are available as

• Categorized for Luminous either common anode or common Intensity cathode.

Yellow and Green also

Categorized for Color Typical applications include Use of Like Categories Yields appliances, temperature con- a Uniform Display trollers, and digital panel meters.

Devices Al Ga As Red HER Orange Yellow Green Circuit HDSP- HDSP- HDSP- HDSP- HDSP- Description Diagram U101 U201 U401 U301 U501 Common Anode, Right

Hand Decimal, Gray Surface

U103 U203 U403 U303 U503 Common Cathode, Right

Hand Decimal, Gray Surface

U111 U211 U411 U311 U511 Common Anode, Right

Hand Decimal, Black Surface

U113 U213 U413 U313 U513 Common Cathode, Right

Hand Decimal, Black Surface
