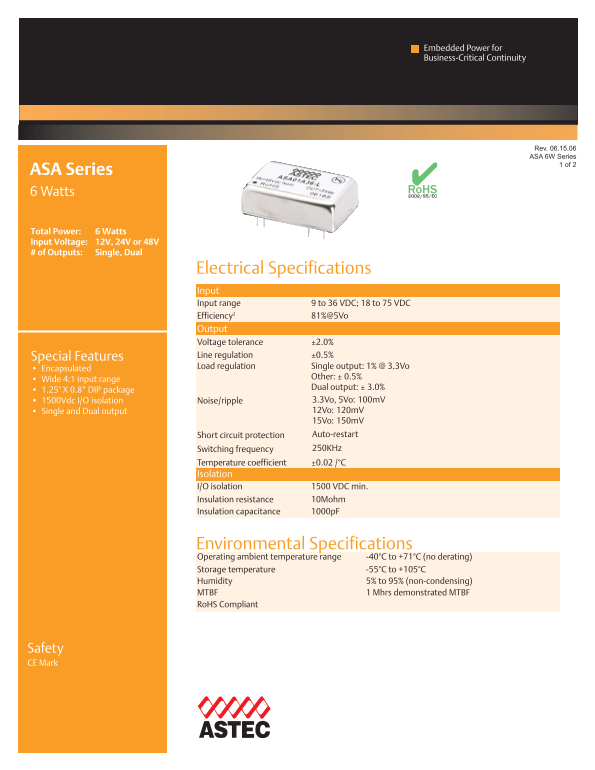

Embedded Power for Business-Critical Continuity
Rev. 06.15.06 ASA 6W Series
ASA Series
6 Watts Ro HS
Total Power: 6 Watts Input Voltage: 12V, 24V or 48V # of Outputs: Single, Dual
Electrical Specifications Input Input ra nge 9 to 36 VDC; 18 to 75 VDC Efficiency2 81%@5Vo Output Voltage tolerance ±2.0% Special Features Line regulation ±0.5% Load regulation Single output: 1% @ 3.3Vo
Encapsulated
Other: ± 0.5%
Wide 4:1 input range
Dual output: ± 3.0%
1.25" X 0.8” DIP package
1500Vdc I/O isolation Noise/ripple 3.3Vo, 5Vo: 100m V Single and Dual output 12Vo: 120m V 15Vo: 150m V Short circuit protection Auto-restart Switching frequency 250KHz
Temperature coefficient ±0.02 /°C Isolation I/O isolation 1500 VDC min. Insulation resistance 10Mohm Insulation capacitance 1000p F
Environmental Specifications Operating ambient temperature range -40°C to +71°C (no derating) Storage temperature -55°C to +105°C Humidity 5% to 95% (non-condensing) MTBF 1 Mhrs demonstrated MTBF Ro HS Compliant
