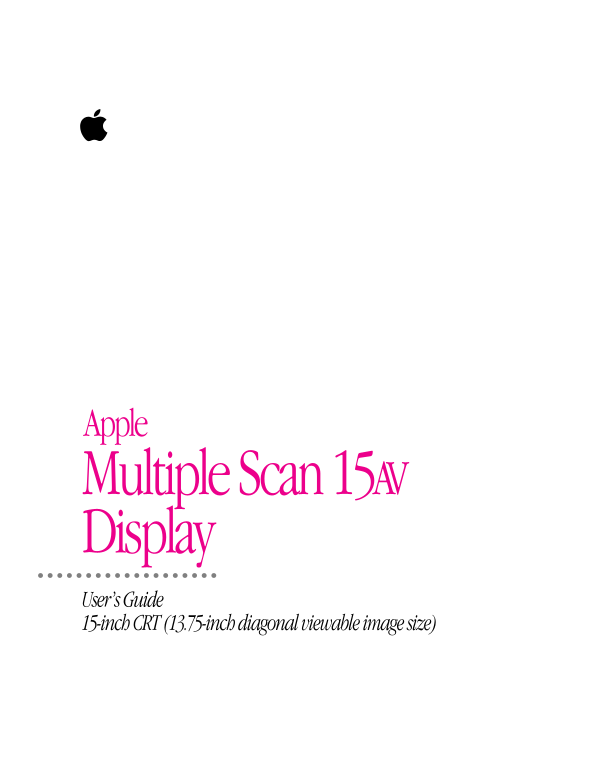

Apple Multiple Scan 15AV Display User’s Guide 15-inch CRT (13.75-inch diagonal viewable image size)
Page Summary Contents For Apple Multiple Scan 15AV Display User's Guide
Page 1
Apple Multiple Scan 15AV Display User’s Guide 15-inch CRT (13.75-inch diagonal viewable image size)
Page 2
K Apple Computer, Inc. 1996 Apple Computer, Inc. All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Apple. Your rights to...
Page 3
Contents Communications regulation information v Setting Up 1 Important safety instructions 1 What about electromagnetic emissions? 2 Getting ready to set up 3 Your Multiple Scan 15AV Display at a gla...
Page 4
Using the Display Software 15 About the Control Strip 15 Working with the Control Strip 16 Changing screen resolution 17 Other things you can do with the Monitors control panel 19 Conserving energy 20...
Page 5
Communications regulation information FCC statement This equipment has been tested and found to comply with the limits for a Class B digital device in accordance with the specifications in Part 15 of ...
Page 6
DOC statement DOC Class B Compliance This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standar...
Page 7
Setting Up The Apple Multiple Scan 15AV Display is a 15-inch color monitor (diagonal viewable image size is 13.75 inches) that supports a variety of resolutions and has a built-in amplifier and stereo...
Page 8
Be sure that you always do the following: Keep your monitor away from sources of liquids, such as wash basins, bathtubs, shower stalls, and so on. Don’t remove the cover of the monitor. Don’t set anyt...
Page 9
Getting ready to set up As you begin to set up your display system, be sure you have easy access to the following items for your Multiple Scan 15AV Display: Apple Multiple Scan 15AV Display Sound cabl...
Page 10
Your Multiple Scan 15AV Display at a glance Stereo speakers I Power button f Headphone _ Volume control Control panel O Contrast control ¤ Brightness control F Security slot _ Sound input port ™ Monit...
Page 11
Choosing a good location for your monitor Here are some key factors to consider when determining where to place your monitor: Be sure that the desk or table can support the monitor’s weight— approxima...
Page 12
Connecting the monitor’s base The monitor and base are packaged separately. To connect the monitor’s base, follow these steps: Place the monitor on its left side on a table or other firm surface. Plac...
Page 13
Positioning the monitor Once your monitor is in place, either on top of your computer or next to it on a desk or table, follow these steps: Place the monitor so that the screen faces the user. To slid...
Page 14
Do you need a video card? To use the Multiple Scan 15AV Display, you need compatible video circuitry built into your computer or a compatible video card installed in your computer. If you are unsure w...
Page 15
Connecting the monitor to your computer Follow these steps to connect the Multiple Scan 15AV Display to your computer: IMPORTANT Before you connect any cords or cables, make sure that your computer is...
Page 16
Plug the other end of the power cord into an outlet or power strip. If your computer has an available power socket, you can use a detachable power cord with a recessed end to plug the monitor directly...
Page 17
Connecting headphones to your monitor If you wish, you can plug a pair of headphones (or other sound output device) into the Multiple Scan 15AV Display. To plug your headphones into the monitor, follo...
Page 18
Note: If the power light is yellow or amber, one of the following may be the cause: The computer isn’t turned on. The monitor’s cable isn’t connected properly to the computer. The video circuitry or v...
Page 19
Read the Welcome screen and click OK. The Installer screen appears. Make sure the disk named in the box is the one on which you want to install the software. If not, click Switch Disk until the correc...
Page 21
Using the Display Software This chapter explains how to use the new display software you have installed. Your software includes a new feature called the Control Strip, which you can use to change moni...
Page 22
You can change the following settings with the Control Strip modules: Monitor Resolution lets you change the resolution of the screen. Monitor Bit Depth lets you change the number of colors on your sc...
Page 23
Changing screen resolution You can change the resolution of your monitor to zoom in for detail work or to zoom out and see a whole page or more at a time. To change screen resolution with the Control ...
Page 24
Make the following choices in the control panel: Note: The choices you see in this window may differ from those shown here, depending on your computer, your video capability, and the monitors attached...
Page 25
Click OK to return to the main window of the Monitors control panel. Depending on which option you selected in the control panel, the new resolution will be displayed when you close the dialog box or ...
Page 26
Conserving energy When you save energy, you save natural resources and reduce pollution. Your Multiple Scan 15AV Display includes features that automatically save energy. You can increase the energy s...
Page 27
What happens after you turn on the energy-saving feature When Energy Saver is on, the monitor “goes to sleep” after a specified period of inactivity. The monitor screen looks dark and the monitor is u...
Page 28
Using Color Sync Color Sync is Apple’s unique color-matching software that ensures that Apple color printers print the best possible reproduction of the colors that appear on your monitor screen. Colo...
Page 29
Click Set Profile. A dialog box appears that enables you to select the name of the monitor you want to use. Click a monitor name to select it. Click Select to return to the main window of the Color Sy...
Page 30
To show or hide the Control Strip, click the button labeled Show Control Strip or Hide Control Strip. The change takes effect immediately. Click the close box to close the control panel. Setting a key...
Page 31
To change the keyboard command, click “Define hot key.” A box appears. Press the keys you want to use, then click OK. You must include either the x (Command) key or a function key (F1–F15). If you cho...
Page 32
To change the font, choose a font from the Font pop-up menu. To change the font size, choose a size from the Size pop-up menu. Click the close box to close the control panel. Chapter
Page 33
Adjusting the Picture In most cases, you won’t need to make any adjustments to the picture. However, you can fine-tune the screen display to suit your preferences using the controls on the front of th...
Page 34
Making adjustments to the picture Adjusting the brightness of the picture Turn the brightness control to increase or decrease brightness. Adjusting the contrast of the picture Turn the contrast contro...
Page 35
Press the Select button until the indicator light for the horizontal center icon goes on. SELECT Adjust the horizontal center of the picture by pressing the Down button to move the center of the pictu...
Page 36
Press the Select button until the indicator light for the height icon goes on. SELECT Adjust the height of the picture by pressing the Down button to shorten the picture or the Up button to lengthen t...
Page 37
Tips and Troubleshooting This chapter includes information on the care and cleaning of your monitor, protecting your monitor from theft, and troubleshooting. Care and cleaning Do not block the monitor...
Page 38
To clean the screen of the monitor: Turn your computer and monitor off. Disconnect the monitor’s power plug from the back of the monitor. (Pull the plug, not the cord.) Use a mild, non-abrasive cleane...
Page 39
The monitor’s power indicator light doesn’t come on. Make sure the monitor is turned on. Make sure that the power cord is plugged in properly. If the monitor power cord is plugged into a wall outlet, ...
Page 40
If the power indicator light is yellow or amber, one of the following may be the cause: The computer isn’t turned on. The monitor’s cable isn’t connected properly to the computer. The video circuitry ...
