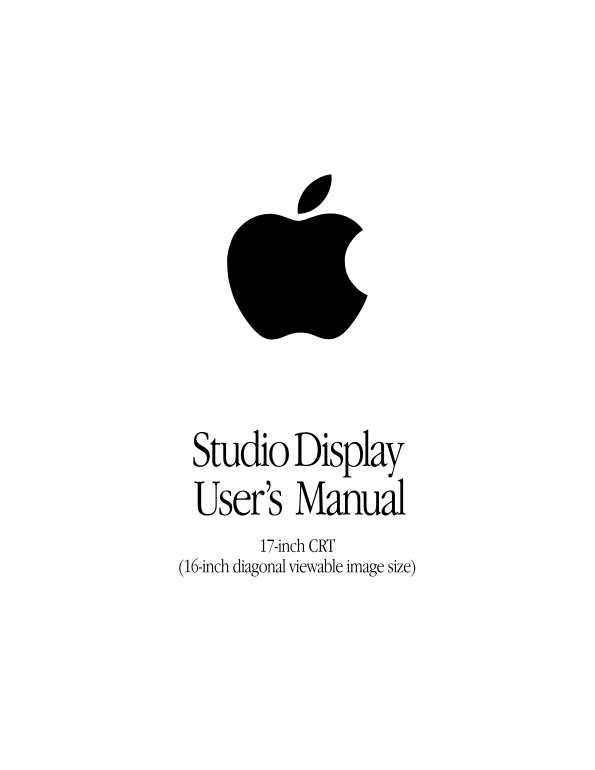

Studio Display User’s Manual 17-inch CRT (16-inch diagonal viewable image size)
Page Summary Contents For Apple Studio Display (17-inch, CRT) User Guide
Page 1
Studio Display User’s Manual 17-inch CRT (16-inch diagonal viewable image size)
Page 2
Apple Computer, Inc. 1998 Apple Computer, Inc. All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Apple. Your rights to t...
Page 3
Contents Communications Regulation Information 5 Your Display at a Glance 8 Setting Up 9 Getting Ready to Set Up 9 Do You Need a Graphics Card? 9 Using More Than One Monitor 10 Connecting the Display ...
Page 4
Using Color Sync 24 Conserving Energy 25 What Happens After You Turn On the Energy-Saving Feature? 25 Setting Up Energy Saver 25 Using Energy Saver With a Screen Saver 25 Health, Safety, and Maintenan...
Page 5
Communications Regulation Information FCC statement This equipment has been tested and found to comply with the limits for a Class B digital device in accordance with the specifications in Part 15 of ...
Page 6
VCCI statement Communications Regulation Information
Page 8
Your Display at a Glance ® Power button ¤ Brightness controls On-Screen Display O Contrast controls controls Power cord receptacle Recessed Recessed area for area for lifting the lifting the monitor m...
Page 9
Setting Up Read this chapter to learn how to set up and connect the Studio Display to your computer. This chapter also contains important safety information and troubleshooting tips. Getting Ready to ...
Page 10
Ranges of supported modes Resolution Vertical Refresh Rate1 (Hertz) 640 x 480 60–85 800 x 600 60–85 832 x 624 1024 x 768 60–85 1152 x 870 1280 x 1024 1600 x 1200 These are ranges only; the actual reso...
Page 11
Connecting the Display to Your Computer Warning This equipment is intended to be electrically grounded. This is a safety feature. Ensure that the computer you are connecting to is grounded. If you use...
Page 12
Insert the monitor connector into the monitor port (marked with ™) on the back of the computer and tighten the thumbscrews. Monitor port icon Monitor connector If you installed a graphics card in your...
Page 13
Note: When you start up your computer or when your system wakes up from sleep, you may notice a shimmering effect on the screen for a few moments. This is normal. Your monitor automatically degausses ...
Page 14
Double-click the Apple Displays Software folder. Double-click the Apple Displays Software Read Me file and read the document that appears. The Read Me file contains important information about the fil...
Page 15
The software is now installed and the monitor is ready for use. (To adjust your monitor, use the Monitors & Sound control panel, available from the Control Panels folder in the Apple [K] menu.) Im...
Page 16
Troubleshooting Warning If you have a problem with your monitor and nothing presented in this manual solves it, consult the service and support information that came with your monitor for instructions...
Page 17
The screen flickers. The flickering could be caused by interference from a nearby power line, a fluorescent light, or an electrical device—for example, a radio, a microwave oven, or other computer equ...
Page 18
The screen image is off-center. Try using one of the preset resolutions listed in the section “Factory Adjusted Video Modes” on page 35. Try changing to another resolution using the Monitors & Sou...
Page 19
When you select a different resolution, the monitor goes blank, and the resolution does not change. Your monitor may go blank for 10 seconds if you select a resolution that does not work with your mon...
Page 21
Using the Apple Displays Software This chapter provides an overview of the features of the Apple Displays Software. What’s Included in the Apple Displays Software? The Apple Displays Software consists...
Page 22
About the Monitors & Sound Control Panel You use the Monitors & Sound control panel to change basic settings that affect the way your computer displays images and processes sound. Because comp...
Page 23
If necessary, change the desired settings. Changes you make take effect immediately. Important When you change resolutions, the screen will go dark for a few seconds, then switch to the new resolution...
Page 24
Choose Digital Color Meter from the Apple (K) menu. The Digital Color Meter window opens. Click the question mark (h) icon in the upper-right corner of the window for information on how to use Digital...
Page 25
Conserving Energy You can use the Energy Saver control panel to set the monitor to conserve energy after a specified period of inactivity. Note: You can save even more energy by turning the monitor of...
Page 27
Health, Safety, and Maintenance For your own safety and that of your equipment, follow all the instructions in this chapter. Keep these instructions available for reference. Health-Related Information...
Page 28
Another type of musculoskeletal concern is repetitive stress injuries (RSIs), also known as cumulative trauma disorders (CTDs). These problems can occur when a certain muscle or tendon is repeatedly o...
Page 29
Some computer users may develop discomfort in their hands, wrists, or arms after intensive work without breaks. If you begin to develop chronic pain or discomfort in your hands, wrists, or arms, consu...
Page 30
Position the monitor so that when you use it, no bright light is behind the monitor or reflected on the screen. Your eyes should be about level with the top edge of the screen and between 18 and 28 in...
Page 31
Maintaining and Cleaning Your Monitor Maintaining Your Monitor Follow these procedures for maintaining your monitor: Turn down the screen brightness control if you leave the computer turned on for ext...
Page 32
Protecting Your Monitor From Theft The slot on the back of the monitor is for connecting a security lock. It lets you attach a narrow, flexible cable that you can use to secure your monitor (and the r...
Page 33
Technical Information Specifications Picture Tube 17-inch diagonal flat square CRT, 16.0-inch diagonal viewable image size Anti-static, anti-glare surface treatment 0.25 millimeter (mm) aperture grill...
Page 34
For instructions on adjusting the system and monitor sleep settings and additional energy-conservation information, see “Conserving Energy” on page 25. You can also see Mac OS Help. TCO 95/NUTEK Compl...
Page 35
Factory Adjusted Video Modes Adjusted at the factory for the following standard modes: Resolution Vertical refresh rate Horizontal scan rate (hertz) (kilohertz) Technical Information
Page 36
Input Electrical Requirements Voltage: 90–264 volts ( ) AC Frequency: 47–63 hertz (Hz) Amperage: 2.0 Power: 120 watts ( ) maximum Weight 48 pounds (21.8 kilograms) Dimensions Height: 18.9 inches (in.)...
Page 37
Display Cable Specifications 15-pin miniature D-type connector Pin Output signal Red video ground Red video Not used ID 1 Green video Green video ground ID 2 (SCL) Not used Blue video ID 3 (SDA) Not u...
