Apple Multiple Scan 14 Display User’s Guide
Summary
Enhance your workspace with the comprehensive Apple Multiple Scan 14 Display monitor. This user guide is essential reading for Mac users seeking to fully optimize their viewing experience. It provides step-by-step instructions covering everything from physical setup and connecting multiple displays, to advanced configuration using Control Strip software. Learn how to adjust resolution, calibrate color settings with ColorSync, manage power efficiency, and fine-tune the picture quality for professional accuracy.
Page 1 Text Content
Apple Multiple Scan 14 Display User’s Guide 14-inch CRT (12.4-inch diagonal viewable image size)
Page Summary Contents For Apple Multiple Scan 14 Display User’s Guide

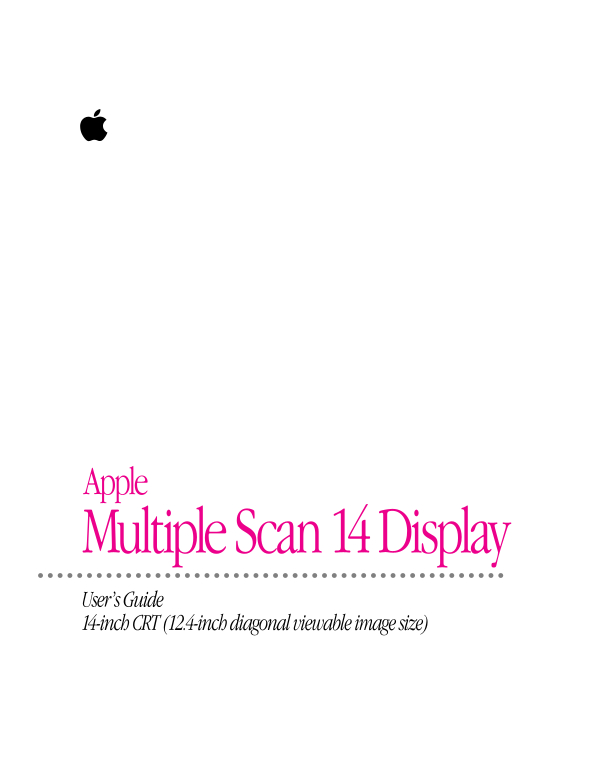

Page 1
Apple Multiple Scan 14 Display User’s Guide 14-inch CRT (12.4-inch diagonal viewable image size)
Page 2
K Apple Computer, Inc. 1996 Apple Computer, Inc. All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Apple. Your rights to...
Page 3
Contents Communications regulation information v Setting Up 1 Important safety instructions 1 What about electromagnetic emissions? 2 Getting ready to set up 3 Your Apple Multiple Scan 14 Display at a...
Page 4
Using the Display Software 13 About the Control Strip 13 Working with the Control Strip 14 Changing screen resolution 15 Other things you can do with the Monitors control panel 16 Conserving energy 17...
Page 5
Communications regulation information FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device in accordance with the specifications in Part 15 of ...
Page 6
DOC statement DOC Class B Compliance This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standar...
Page 7
Setting Up The Apple Multiple Scan 14 Display is a color monitor with a diagonal viewable image size of 12.4 inches that supports a variety of resolutions, and has a built-in amplifier and stereo spea...
Page 8
IMPORTANT The only way to disconnect power completely is to unplug the power cord. Make sure at least one end of the power cord is within easy reach so that you can unplug the monitor when you need to...
Page 9
Apple has reviewed scientific reports and sought the counsel of government regulatory agencies and respected health organizations. Based on the prevailing evidence and opinions, Apple believes that th...
Page 10
Your Apple Multiple Scan 14 Display at a glance Power button Stereo speakers Contrast control Headphone jack Control panel Brightness control Security slot Sound input port Monitor cable Power cord re...
Page 11
Choosing a good location for your monitor Here are some key factors to consider when determining where to place your monitor: Be sure that the desk or table can support the monitor’s weight— approxima...
Page 12
Slide the base forward to lock it into the mounting. Push the base forward about 1⁄4 inch (.5 cm) toward the front of the monitor to seat the base. With the base now mounted, turn the monitor upright ...
Page 13
For your greatest comfort, use the following illustration to help you in positioning your monitor. 45–70 cm (18–28 in.) Shoulders relaxed Top of the screen at or slightly below eye level (You may need...
Page 14
Do you need an adapter connector? Some models of Macintosh computers with built-in video and some third-party video cards require an adapter connector to connect the monitor to the computer. You can g...
Page 15
Connect the socket end of the power cord to the power cord receptacle on the back of the monitor. Plug the other end of the power cord into a three-hole grounded outlet or power strip. If your compute...
Page 16
Attach one end of the included sound output cable to the sound output port (marked by on the back of the computer. If you have headphones attached to the sound output port (marked by -) on the back of...
Page 17
The green power indicator light goes on. If the green light does not go on, check that the monitor is plugged in and press the power switch again. Also, make sure your computer is plugged in and turne...
Page 18
Double-click the Installer icon to start the Installer program. After a moment, the Installer opens and you see the Welcome screen. Read the Welcome screen and click OK. The Installer screen appears. ...
Page 19
Using the Display Software This chapter explains how to use the new display software you have installed. Your software includes a new feature called the Control Strip, which you can use to change moni...
Page 20
You can change the following settings with the Control Strip modules: Monitor Resolution lets you change the resolution of the screen. Monitor Bit Depth lets you change the number of colors on your sc...
Page 21
Changing screen resolution You can change the resolution of your monitor to zoom in for detail work or to zoom out and see a whole page or more at a time. To change screen resolution with the Control ...
Page 22
Click the Options button to see what resolutions you can choose. Click a resolution to select it. The choices you see in this window depend on your computer, video capability, and the monitors that ar...
Page 23
Conserving energy Use the Energy Saver control panel to tell the monitor whether to conserve energy after a specified period of inactivity. You can use the control panel if you have an Apple monitor a...
Page 24
To “wake up” the monitor, move the mouse or press any key on the keyboard. Your computer beeps while the monitor is waking up. The process takes about 20 seconds, and you can begin work as soon as the...
Page 25
The Color Sync software works automatically in the background. When you install the monitor software, your computer is automatically set to use Color Sync with your monitor. If you use more than one c...
Page 26
Click Select to return to the main window of the Color Sync control panel. Close the Color Sync control panel by clicking the close box in the upper-left corner. Configuring the Control Strip With the...
Page 27
Setting a keyboard command to show and hide the Control Strip To set a keyboard command to show and hide the Control Strip, follow these steps: Choose Control Panels from the Apple (K) menu. Double-cl...
Page 28
Changing the font in Control Strip menus When you press a Control Strip control, you see a menu you can use to make changes. You can change the font and size of items in the menu. Follow these steps: ...
Page 29
Adjusting the Picture In most cases, you won’t need to make any adjustments to the picture. However, you can fine-tune the screen display to suit your preferences using the controls on the front of th...
Page 30
Making adjustments to the picture Adjusting the brightness of the picture Use this control Move the brightness control to increase or decrease brightness. Adjusting the contrast of the picture Use thi...
Page 31
Adjusting the size of the picture Use these controls Turn this knob to increase or decrease the height of the picture. Turn this knob to increase or decrease the width of the picture. ing the Pic ture...
Page 33
Tips and Troubleshooting This chapter includes information on the care and cleaning of your monitor, protecting your monitor from theft, and troubleshooting. Care and cleaning Do not block the monitor...
Page 34
To clean the screen of the monitor: Turn your computer and monitor off. Disconnect the monitor’s power plug from the back of the monitor. (Pull the plug, not the cord.) Use a mild, non-abrasive cleane...
Page 35
The monitor’s power indicator light doesn’t come on. Make sure that the power cord is plugged in properly. If the monitor power cord is plugged into a wall outlet, make sure the cord is firmly plugged...
Page 36
If the power indicator light is yellow, check that your monitor cable is properly connected to the computer. If the cable is properly connected and the yellow light is on, you may need to install a vi...
Page 37
If you are using a video card that has a very low refresh rate (below 60 hertz), the monitor may flicker. You may be able to change the refresh rate for the card. See the manual that came with your vi...
Page 38
After many hours of use, the screen image appears dim. Increase the brightness of the picture to your preference. See “Adjusting the Brightness of the Picture” in Chapter 3. Over time, you experience ...
Page 39
After you change the screen resolution, a window is stuck, halfway off the screen, or missing; or you can’t see the whole screen. Try one of the following: If you changed the resolution in the control...
Page 40
The monitor does not go to sleep. Some monitors, computers, and video cards do not support the Energy Saver feature. See the documentation that came with your monitor and video card for more informati...
Manual Details
| Brand | Apple |
|---|---|
| Pages | 46 |
| File Size | 423.71 KB |
| Published | May 14, 2026 |
187 views
Enter the captcha to get the download link:
Frequently Asked Questions
What is the product weight and approximate dimensions?
The monitor weighs approximately 25 pounds (11 kilograms) and measures 14.9 inches high, 14.4 inches wide, and 15 inches deep.
How do I connect multiple monitors or devices?
Connecting a second monitor requires careful placement—always select a good location for your monitor and use the designated ports.
What are the operating voltage and frequency requirements?
The equipment operates on an electrical requirement of 90–132 volts (V), 198–264 V, with a frequency range of 47–63 hertz (Hz).
How do I adjust the picture settings like brightness and contrast?
You can make adjustments using the monitor's controls to modify the brightness, contrast, center, or size of the picture.
How can I prevent interference with radio or television reception?
If interference is suspected, move the computer device away from the television or radio, or try adjusting the antenna until the issue stops.
