ANALOG DEVICES ADIS16006 Data Sheet
Summary
Achieve precise motion and vibration measurement with this highly integrated, low-power dual-axis accelerometer featuring robust SPI digital output and an embedded temperature sensor. The manual serves as a comprehensive technical guide, detailing setup procedures for bandwidth selection, self-test functionality, and optimal performance tuning. Ideal for engineers developing sophisticated industrial monitoring, platform stabilization systems, or advanced security/tracking devices requiring reliable inertial data.

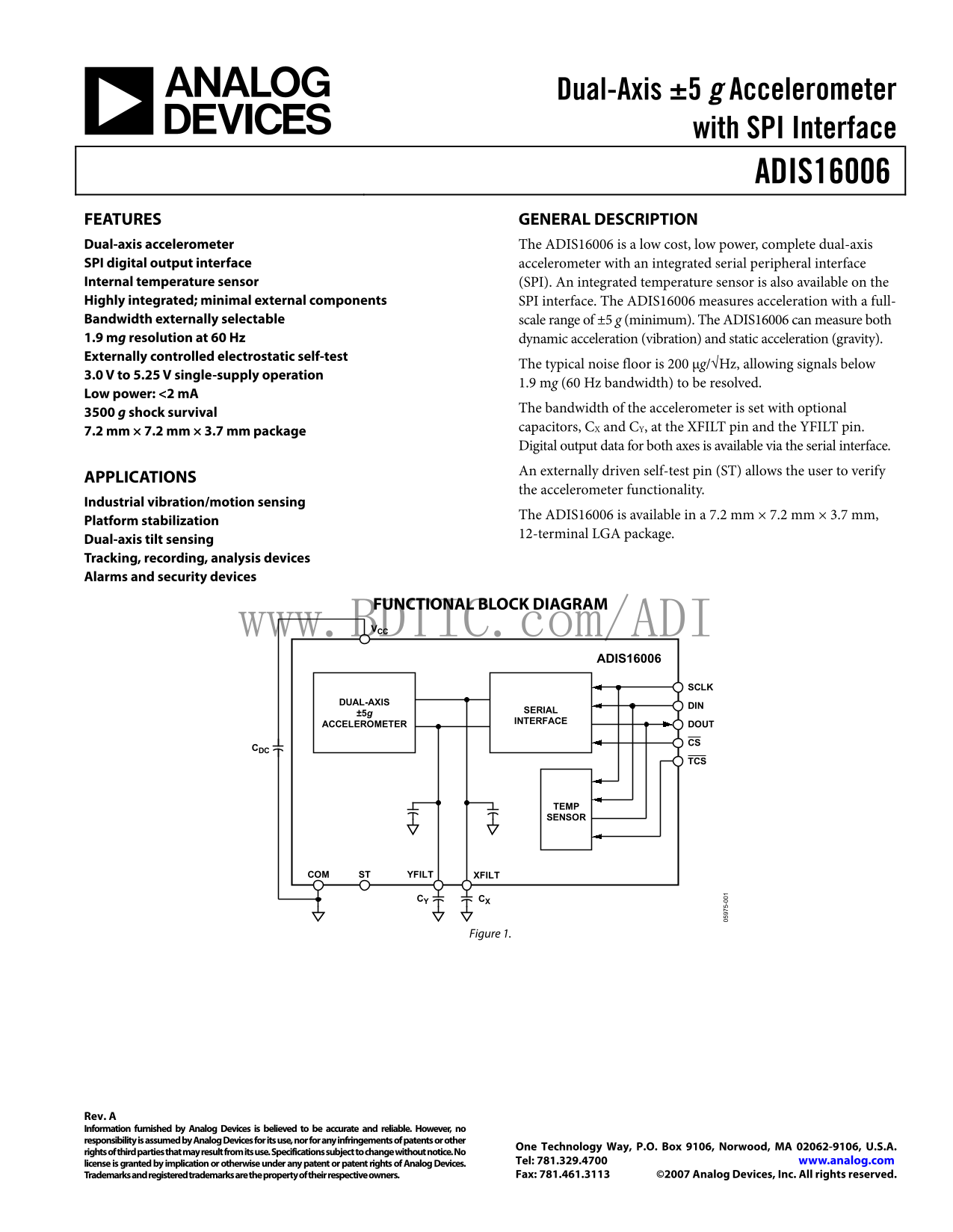

Page 1 Text Content
Dual-Axis ±5 g Accelerometer
with SPI Interface
ADIS16006 FEATURES GENERAL DESCRIPTION Dual-axis accelerometer The ADIS16006 is a low cost, low power, complete dual-axis SPI digital output interface accelerometer with an integrated serial peripheral interface Internal temperature sensor (SPI). An integrated temperature sensor is also available on the Highly integrated; minimal external components SPI interface. The ADIS16006 measures acceleration with a full- Bandwidth externally selectable scale range of ±5 g (minimum). The ADIS16006 can measure both 1.9 mg resolution at 60 Hz dynamic acceleration (vibration) and static acceleration (gravity). Externally controlled electrostatic self-test
The typical noise floor is 200 μg/√Hz, allowing signals below
3.0 V to 5.25 V single-supply operation
1.9 mg (60 Hz bandwidth) to be resolved.
Low power: <2 m A
The bandwidth of the accelerometer is set with optional
3500 g shock survival
capacitors, CX and CY, at the XFILT pin and the YFILT pin.
7.2 mm × 7.2 mm × 3.7 mm package
Digital output data for both axes is available via the serial interface. An externally driven self-test pin (ST) allows the user to verify
APPLICATIONS
the accelerometer functionality.
Industrial vibration/motion sensing
The ADIS16006 is available in a 7.2 mm × 7.2 mm × 3.7 mm,
Platform stabilization
12-terminal LGA package.
Dual-axis tilt sensing Tracking, recording, analysis devices Alarms and security devices
FUNCTIONAL BLOCK DIAGRAM www.BDTIC.com/ADI VCC
ADIS16006
DUAL-AXIS
±5g SERIAL INTERFACE
ACCELEROMETER 5- DOUT
TEMP SENSOR
COM ST YFILT XFILT
CY CX
Figure 1.
Rev. A Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 www.analog.com Trademarks and registered trademarks are the property of their respective owners. Fax: 781.461.3113 ©2007 Analog Devices, Inc. All rights reserved.
Page Summary Contents For ANALOG DEVICES ADIS16006 Data Sheet
Manual Details
| Brand | Analog Devices |
|---|---|
| Pages | 16 |
| File Size | 302.93 KB |
| Published | July 16, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How can I control the accelerometer's bandwidth?
The bandwidth is set using optional capacitors, CX and CY, connected to the XFILT pin and YFILT pin.
What voltage range does this chip support?
It supports single-supply operation from 3.0 V to 5.25 V.
How can I test the functionality of the sensor before use?
An externally driven self-test pin (ST) allows the user to verify the accelerometer functionality.
Does the device have an integrated temperature reading feature?
Yes, it incorporates an internal temperature sensor that is accessible via the SPI interface.
