ANALOG DEVICES AD8013 Data Sheet
Summary
The AD8013 is a low-power, single supply triple video amplifier designed specifically for high-speed, professional video signal transmission. Featuring an industry-leading 140 MHz bandwidth and 1000 V/μs slew rate, this device excels at driving large capacitive loads typical in broadcast equipment. The manual details its operational specifications, including pin configuration, gain flatness, error differentials, and low power consumption (max 4 mA per amplifier). It is ideal for engineers developing robust video line drivers and multiplexing solutions in professional and consumer video systems.

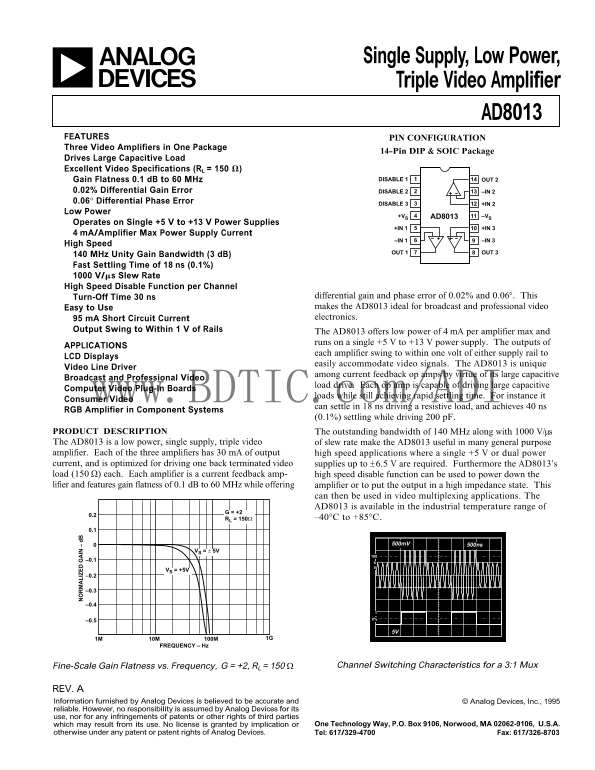

Page 1 Text Content
Single Supply, Low Power,
IZ IN Triple Video Amplifier
AD8013
FEATURES PIN CONFIGURATION Three Video Amplifiers in One Package
14-Pin DIP & SOIC Package
Drives Large Capacitive Load Excellent Video Specifications (RL = 150 V)
Gain Flatness 0.1 d B to 60 MHz DISABLE 1 OUT 2
0.02% Differential Gain Error DISABLE 2 –IN 2 0.06° Differential Phase Error
DISABLE 3 +IN 2
Low Power
+VS AD8013 –VS
Operates on Single +5 V to +13 V Power Supplies
+IN 1 +IN 3
m A/Amplifier Max Power Supply Current
–IN 1 –IN 3
High Speed
OUT 1 OUT 3
140 MHz Unity Gain Bandwidth (3 d B) Fast Settling Time of 18 ns (0.1%) 1000 V/ms Slew Rate High Speed Disable Function per Channel
Turn-Off Time 30 ns differential gain and phase error of 0.02% and 0.06°. This Easy to Use makes the AD8013 ideal for broadcast and professional video 95 m A Short Circuit Current electronics.
Output Swing to Within 1 V of Rails
The AD8013 offers low power of 4 m A per amplifier max and runs on a single +5 V to +13 V power supply. The outputs of
APPLICATIONS
each amplifier swing to within one volt of either supply rail to
LCD Displays
easily accommodate video signals. The AD8013 is unique
Video Line Driver
among current feedback op amps by virtue of its large capacitive
Broadcast and Professional Video
load drive. Each op amp is capable of driving large capacitive
Computer Video Plug-In Boards
www.BDTIC.com/ADI loads while still achieving rapid settling time. For instance it
Consumer Video
can settle in 18 ns driving a resistive load, and achieves 40 ns
RGB Amplifier in Component Systems
(0.1%) settling while driving 200 p F.
PRODUCT DESCRIPTION The outstanding bandwidth of 140 MHz along with 1000 V/µs The AD8013 is a low power, single supply, triple video of slew rate make the AD8013 useful in many general purpose amplifier. Each of the three amplifiers has 30 m A of output high speed applications where a single +5 V or dual power current, and is optimized for driving one back terminated video supplies up to ±6.5 V are required. Furthermore the AD8013’s load (150 Ω) each. Each amplifier is a current feedback amp- high speed disable function can be used to power down the lifier and features gain flatness of 0.1 d B to 60 MHz while offering amplifier or to put the output in a high impedance state. This
can then be used in video multiplexing applications. The AD8013 is available in the industrial temperature range of
RL = 150Ω –40°C to +85°C.
500ns500m V
VS = ± 5V
VS = +5V
FREQUENCY – Hz
Fine-Scale Gain Flatness vs. Frequency, G +2, RL Channel Switching Characteristics for a 3:1 Mux
REV. A Information furnished by Analog Devices is believed to be accurate and © Analog Devices, Inc., 1995 reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties
which may result from its use. No license is granted by implication or One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
otherwise under any patent or patent rights of Analog Devices. Tel: 617/329-4700 Fax: 617/326-8703
Page Summary Contents For ANALOG DEVICES AD8013 Data Sheet
Manual Details
| Brand | Analog Devices |
|---|---|
| Pages | 12 |
| File Size | 181.43 KB |
| Published | June 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the power supply requirement for the AD8013?
The AD8013 operates on a single +5 V to +13 V power supply, drawing up to 4 mA per amplifier max.
How fast can this device settle when driving a resistive load?
It has a rapid settling time of 18 ns (0.1%) while driving a resistive load, making it ideal for broadcast video.
What is the maximum output current for one amplifier?
The typical operating output current is 30 mA per amplifier, with a short-circuit current capability reaching 95 mA.
