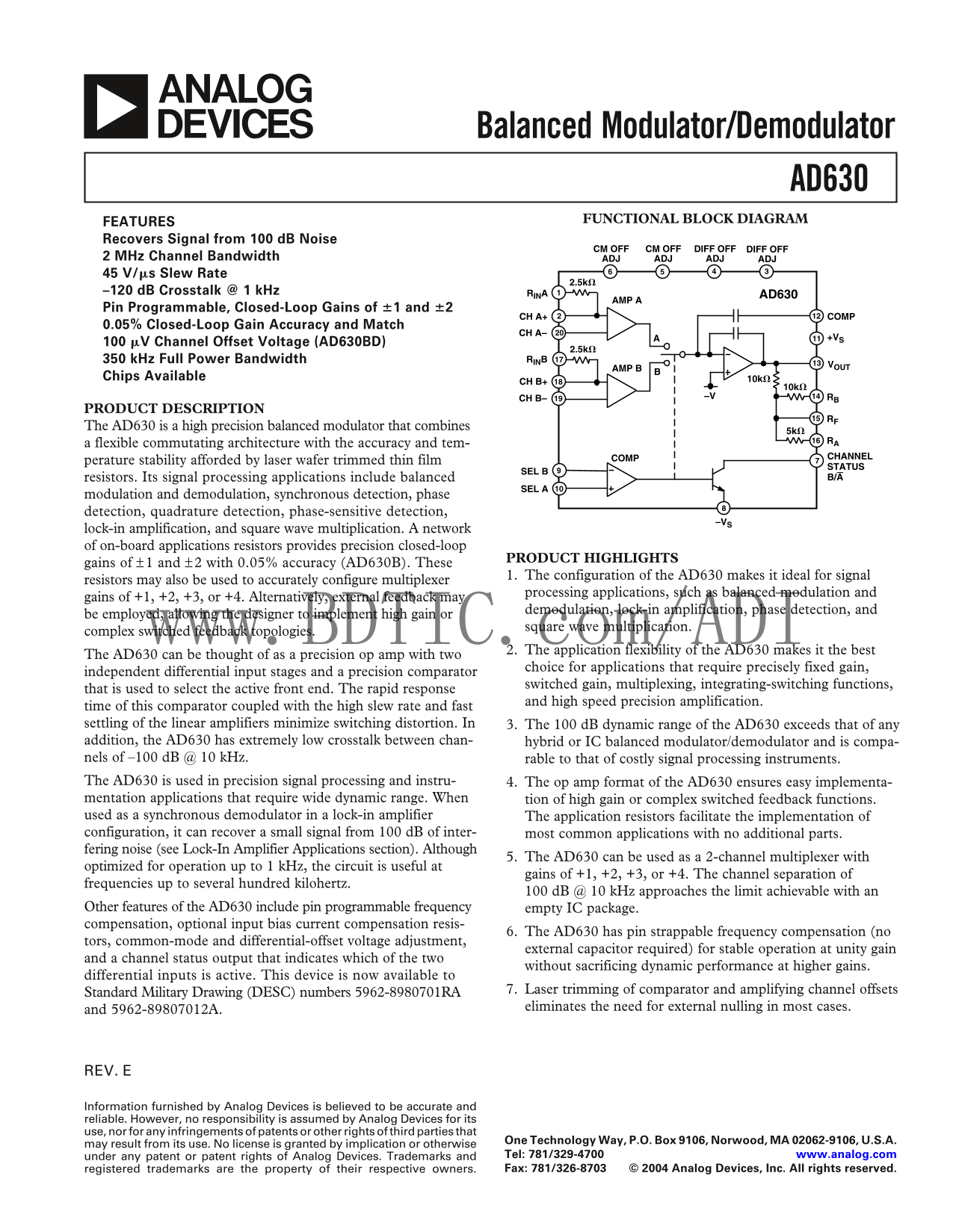

Page 1 Text Content

Balanced Modulator/Demodulator

AD630

FUNCTIONAL BLOCK DIAGRAM

FEATURES Recovers Signal from 100 d B Noise

CM OFF CM OFF DIFF OFF DIFF OFF

2 MHz Channel Bandwidth ADJ ADJ ADJ ADJ 45 V/s Slew Rate

–120 d B Crosstalk @ 1 k Hz RINA

AD630

AMP A

Pin Programmable, Closed-Loop Gains of 1 and 2

CH A+ COMP

0.05% Closed-Loop Gain Accuracy and Match

CH A–

100 V Channel Offset Voltage (AD630BD)

350 k Hz Full Power Bandwidth RINB

AMP B

Chips Available 10k

CH B+

CH B– –V RB

PRODUCT DESCRIPTION

The AD630 is a high precision balanced modulator that combines

a flexible commutating architecture with the accuracy and tem-

COMP CHANNEL

perature stability afforded by laser wafer trimmed thin film

STATUS

SEL B

resistors. Its signal processing applications include balanced B/A

SEL A

modulation and demodulation, synchronous detection, phase detection, quadrature detection, phase-sensitive detection,

lock-in amplification, and square wave multiplication. A network of on-board applications resistors provides precision closed-loop

PRODUCT HIGHLIGHTS

gains of ± 1 and ± 2 with 0.05% accuracy (AD630B). These

1. The configuration of the AD630 makes it ideal for signal

resistors may also be used to accurately configure multiplexer

processing applications, such as balanced modulation and

gains of +1, +2, +3, or +4. Alternatively, external feedback may

demodulation, lock-in amplification, phase detection, and

be employed, allowing the designer to implement high gain or

square wave multiplication.

complex switched feedback topologies.

ww.BDTIC.com/A

2. The application flexibility of the AD630 makes it the best

The AD630 can be thought of as a precision op amp with two

choice for applications that require precisely fixed gain,

independent differential input stages and a precision comparator

switched gain, multiplexing, integrating-switching functions,

that is used to select the active front end. The rapid response

and high speed precision amplification.

time of this comparator coupled with the high slew rate and fast settling of the linear amplifiers minimize switching distortion. In 3. The 100 d B dynamic range of the AD630 exceeds that of any addition, the AD630 has extremely low crosstalk between chan- hybrid or IC balanced modulator/demodulator and is compa- nels of –100 d B @ 10 k Hz. rable to that of costly signal processing instruments. The AD630 is used in precision signal processing and instru- 4. The op amp format of the AD630 ensures easy implementa- mentation applications that require wide dynamic range. When tion of high gain or complex switched feedback functions. used as a synchronous demodulator in a lock-in amplifier The application resistors facilitate the implementation of configuration, it can recover a small signal from 100 d B of inter- most common applications with no additional parts. fering noise (see Lock-In Amplifier Applications section). Although

5. The AD630 can be used as a 2-channel multiplexer with

optimized for operation up to 1 k Hz, the circuit is useful at

gains of +1, +2, +3, or +4. The channel separation of

frequencies up to several hundred kilohertz.

100 d B @ 10 k Hz approaches the limit achievable with an

Other features of the AD630 include pin programmable frequency empty IC package. compensation, optional input bias current compensation resis-

6. The AD630 has pin strappable frequency compensation (no

tors, common-mode and differential-offset voltage adjustment,

external capacitor required) for stable operation at unity gain

and a channel status output that indicates which of the two

without sacrificing dynamic performance at higher gains.

differential inputs is active. This device is now available to

Standard Military Drawing (DESC) numbers 5962-8980701RA 7. Laser trimming of comparator and amplifying channel offsets eliminates the need for external nulling in most cases.

and 5962-89807012A.

Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

may result from its use. No license is granted by implication or otherwise

under any patent or patent rights of Analog Devices. Trademarks and Tel: 781/329-4700 www.analog.com registered trademarks are the property of their respective owners. Fax: 781/326-8703 © 2004 Analog Devices, Inc. All rights reserved.

Page Summary Contents For ANALOG DEVICES AD630 Data Sheet

Page 1 Balanced Modulator/Demodulator AD630 FUNCTIONAL BLOCK DIAGRAM FEATURES Recovers Signal from 100 d B Noise CM OFF CM OFF DIFF OFF DIFF OFF 2 MHz Channel Bandwidth ADJ ADJ ADJ ADJ 45 V/s Slew Rate –120...
Page 2 AD630–SPECIFICATIONS (@ 25C and VS = 15 V, unless otherwise noted.) AD630J/AD630A AD630K/AD630B AD630S Model Min Typ Max Min Typ Max Min Typ Max Unit GAIN Open-Loop Gain d B ±1, ±2 Closed-Loop Gain...
Page 3 AD630 ABSOLUTE MAXIMUM RATINGS THERMAL CHARACTERISTICS Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±18 V JC JA Internal Power Dissipation . . . . . . . . . . . . . ....
Page 4 -M JE IO AD630 –Typical Performance Characteristics RL= 2k CL = 100p F VO CL = 100p F f = 1k Hz 2k VO Vi 100p F f = 1k Hz CAP IN CL = 100p F FREQUENCY (Hz) RESISTIVE LOAD () SUPPLY VOLTAGE (V) (V s)...
Page 5 AD630 10V 20k Hz (Vi) 20m V/DIV (Vo) 1m V/DIV (B) 20m V/DIV 10V/DIV (Vi) 0% (Vo) 0% 20m V 500ns 10V TOP TRACE: Vo TOP TRACE: Vi BOTTOM TRACE: Vi MIDDLE TRACE: SETTLING ERROR (B) BOTTOM TRACE: Vo VO VO...
Page 6 AD630 TWO WAYS TO LOOK AT THE AD630 The two closed-loop gain magnitudes will be equal when RF/RA The functional block diagram of the AD630 (see page 1) shows = 1 + RF/RB, which will result from making...
Page 7 AD630 The collectors of each switching cell connect to an input trans- desired signal multiplied by the low frequency gain (which may conductance stage. The selected cell conveys bias currents i22 be ...
Page 8 AD630 the system input tied to 0 V, and a switching or carrier wave- AD630 when used to modulate a 100 k Hz square wave carrier form applied to the comparator, a low level square wave will with a 10 k...
Page 9 AD630 BALANCED DEMODULATOR E1000 SCHAEVITZ AD544 FOLLOWER AD630 The balanced modulator topology described above will also act as LVDT 2 DEMODULATOR 5k a balanced demodulator if a double sideband suppr...
Page 10 AD630 500s/DIV B. 200m V/DIV MODULATED SIGNAL (A) (UNATTENUATED) ATTENUATED SIGNAL PLUS NOISE (B) 0% OUTPUT C. 200m V/DIV A. 200m V/DIV Figure 15. Lock-In Amplifier Waveforms The test signal is produ...
Page 11 AD630 OUTLINE DIMENSIONS 20-Lead Side-Brazed Ceramic Dual In-Line Package [SBDIP] Dimensions shown in inches and (millimeters) 0.080 (2.03) MAX0.005 (0.13) MIN 0.300 (7.62) 0.280 (7.11)PIN 1 0.200 (5....
Page 12 AD630 20-Lead Standard Small Outline Package [SOIC] Wide Body (R-20) Dimensions shown in millimeters and (inches) 1.27 0.51 (0.0201) SEATING COPLANARITY 0.33 (0.0130) 1.27 (0.0500) (0.0500) 0.31 (0.01...
