Aiptek Pocket DV Digital Video Camera User Guide
Summary
This comprehensive guide provides everything you need to operate your Pocket DV Digital Video Camera. Learn how to set up the device via USB connection and install necessary software for seamless PC integration. The manual details core functions including still image capture (VGA/QVGA), AVI movie recording, voice annotation, and live view setup. Ideal for photographers and videographers looking for a versatile, compact camera solution.
Page 1 Text Content
Digital
Video Camera Manager
E-manual
Page Summary Contents For Aiptek Pocket DV Digital Video Camera User Guide

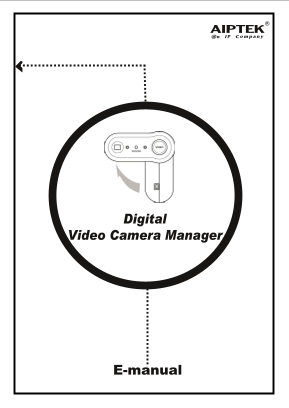

Page 1
Digital Video Camera Manager E-manual
Page 2
Chapter 1: Installation Software Installation Digital Video Camera Manager Installation Place the CD into your CD-ROM and click on the Digital Video Camera Manager Icon to begin the installation. If t...
Page 3
The dialog box that appears asks if you would like to restart your computer now or later. Press "Finish" to complete installation. Hardware Installation Connect the smaller end of the USB ca...
Page 4
Chapter2: How to Use Your Digital Video Camera Introduction The Pocket DV is equipped with MB (128Mbits). It offers digital cam- corder, digital still camera, voice annotation and Video Conferencing f...
Page 5
Your camera Mode Switch Audio Button LCD Display Shutter Switch Lens Video Button Microphone Working LED Battery Cover View Finder USB port
Page 6
Turning on off your camera Hold the mode button for seconds to activate the camera. Then press the shutter button in seconds to select the operation mode. If the shutter button is not pressed in secon...
Page 7
Quality Still Image QVGAVGASize QVGAVGA Quality Maximum to250 pic. Up to pic. Up to1000 pic.Up Up to2000 pic. Photos Choosing the Quality Press the mode button until star icons with or are shown. To c...
Page 8
Chapter 3: Taking Pictures Adjusting Viewfinder Axis After choosing the LCD functions, turn the viewfinder axis to locate the viewfinder. Then aim at your objects by positioning the viewfinder vertica...
Page 9
Taking Pictures Still Image Mode Press the mode button. The LCD shows the Still Image Mode icon. Press the shutter button to take single picture. AVI Movie Mode Press the Video button to begin to take...
Page 10
Erase All Press the mode button. The LCD shows the Erase All icon. Press the shutter button. The Erase All icon starts to blink. Press the shutter button again and all the stored picture and AVI Movie...
Page 11
Chapter 4: How to Transfer Pictures and AVI files to PC Start Digital Video Camera Manager Pictures can be transferred to your PC at all times. To connect your camera with your PC, you need USB cable ...
Page 12
Select All Image Minimize Work area DSC Mode Exit Delete DSC Function (DSC Mode) Transfer pictures to the work area Transfer pictures to the album Create AVI file Send Mail Select All Delete Album Man...
Page 13
Preview Slide Show You can preview any picture file you want by double clicking the picture icon to display the Slide window. To display the next image, click Go to the next picture" or Go to the...
Page 14
Making AVI file To create an AVI file from separate images, select JPG or BMP pictures and click on the Create AVI" icon to create an AVI file. Picture sequence and frame rate are adjustable Play...
Page 15
Playing Audio Double click the WAV icon on the work area to launch your default media player and play the file. Deleting files To delete JPG(BMP), AVI or audio files, select the file and click the Del...
Page 16
Album Delete Click the button. All the files you select in the album window are cleared forever. Please be very careful when deleting images!! Select All This button will allow you to select all of th...
Page 17
Live View Mode The current view is displayed in the "preview" window. Live View Mode Video Record Snapshot Set Video Format Set Video Source Live preview Video Recording If you wish to chang...
Page 18
Press "Snapshot" button to capture picture to the work area. Press "Video Format" button to set picture size. Go to Output size" to change resolution and video quality. QVGA i...
Page 19
TWAIN Manager To start using the TWAIN Manager, simply click on the "Start" menu and go up to "Programs" Then go to the folder named "Imaging" and select it. How to enter...
Page 20
Transfer Snapshot Transfer All Save AVI Select single picture and transfer it to the work area Select all pictures and transfer them to the work area Select an AVI or WAV file and click "Save AVI...
Manual Details
| Brand | AIPTEK |
|---|---|
| Pages | 20 |
| File Size | 829.07 KB |
| Published | May 13, 2026 |
153 views
Enter the captcha to get the download link:
Frequently Asked Questions
How do I install the Digital Video Camera Manager software?
Place the CD in your CD-ROM, double-click 'Setup.exe', and follow the prompts until you press 'Finish'.
What are the battery limitations for continuous recording?
With AA batteries, continuous AV recording lasts 2 hours, and standby time is 7 days.
Is data stored on the camera safe if the batteries die?
No. When batteries are out of power or removed, all stored pictures will be erased.
What are the different image qualities supported by the camera?
It supports VGA (640x480), QVGA (320x240), and also allows taking standard and large quality photos.
