Aiptek Mini DV Digital Camcorder User Guide
Summary
This essential guide provides complete instructions for using your digital camcorder, perfect for new photographers and videographers. It comprehensively covers setup procedures, including battery management and inserting memory cards. Learn how to record high-quality video clips with optimal focus and zoom settings, interpret all LCD indicators, and safely operate the device while adhering to critical safety warnings. Furthermore, detailed steps are provided for using file conversion software to ensure your recorded footage is seamlessly transferred and played back on a PC.
Page 1 Text Content
English
Page Summary Contents For Aiptek Mini DV Digital Camcorder User Guide

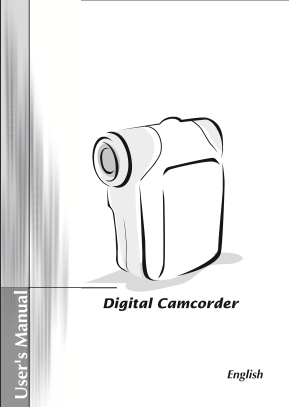

Page 1
English
Page 2
Safety Notice: 1. Do not drop, puncture or disassemble the camera; otherwise the warranty will be voided. 2. Avoid all contact with water, and dry hands before using. 3. Do not expose the camera to hi...
Page 3
Loading the battery Please use two AA batteries. 1. Slide open the battery compartment cover as indicated. 2. Load the batteries into the battery compartment with + and - ends correctly installed. 3. ...
Page 4
Turning on the camcorder Open the LCD panel. OR Press and hold down the Power button ( ) for 3 seconds. Turning off the camcorder Close the LCD panel. OR Press and hold down the Power button ( ) for 3...
Page 5
Reading LCD indicators Digital Camcorder mode: Flash mode Focus mode Photo resolution Night Shot 1.1x Zoom ratio Smart Zoom SD card inserted Battery life Number of pictures/files Playback thumbnail mo...
Page 6
Recording a video clip 1. Set the focus to an appropriate setting. Normally, you may set the focus to ( ) for most filming conditions. Select ( ) only for close-ups. 2. Press the Record button ( ) to ...
Page 7
Connecting the camcorder to a TV Connect your camcorder and TV via the accessory AV cable for real-time display. You can display your video clips, still pictures, and audio recordings directly on your...
Page 8
Mode selection 1. Turn on the camcorder. 2. Press the button. 3. Use the Zoom buttons ( ) to select the desired item. 4. Press the button to confirm. Basic operation How to... Action Move the highligh...
Page 9
Menu items in Camera mode (2) Item Option Description VGA Set the video resolution to VGA (640x480 pixels). Video QVGA Set the video resolution to QVGA (320x240 pixels). Stabilizer On/Off Minimize blu...
Page 10
Menu items in Playback mode Power-on → Press the Mode button → Enter the Playback ( ) mode → Press the Shutter button ( ). Item Option Description Delete One Yes/No Delete current file. Delete All Yes...
Page 11
Menu items in Setting mode (2) Item Option Description Language Lets you select the language used for OSD. When connected to a PC, the camcorder displays a menu for you to choose a desired connection ...
Page 12
Advanced Instructions English
Page 13
Copying files to Your PC Installing the driver to your PC You need to install the camcorder driver to ensure that video clips can be played back on your PC. To install the software: 1. Insert the driv...
Page 14
Copying files to Your PC (continued) 4. Install codecs. After the driver installation is completed, the program will prompt you to install Windows Media Player Codecs. If you are not sure whether the ...
Page 15
Connecting the camcorder to your PC 1. Turn on the camcorder. 2. Connect the USB cable to your computer. Turn on your computer, and then connect the accessory USB cable to the USB port of your compute...
Page 16
File location After connecting the camcorder to your computer, a removable disk will appear in your computer. The removable disk actually represents the storage medium of your camcorder. In the disk y...
Page 17
Using PC Camera Installing the software The PC camera software is included in the camera driver, and therefore you should install the driver before using the PC camera function. Starting the applicati...
Page 18
Using DV xxxx PC Camera Start recording a video clip Start/Stop preview window Stop recording Setting * Snapshot Open album Format * Select video source Source * * Sub-menu available. To view pictures...
Page 19
Using DV xxxx PC Camera (Continued) Recording an AVI movie 1. Click on the icon. 2. Press to specify the path and name of the AVI file. 3. Set the frame rate and recording time according to your needs...
Page 20
Using DV xxxx PC Camera (Continued) Configuring Source options Device Control: - Brightness: You can check the “Auto” item and let the program adjust image brightness for you, or uncheck the “Auto” it...
Page 21
Appendix: A Troubleshooting When using the camcorder: Problem Cause Solution The battery is out of power. Replace the battery. The camcorder can not be powered on normally. The battery is incorrectly ...
Page 22
Appendix: A When using the camcorder: Problem Cause Solution If the battery icon indicates low battery, the flash strobe Cannot use the flash strobe. Replace the battery. may be disabled due to insuff...
Page 23
Appendix: A When connecting the camcorder to the computer or TV: Problem Cause Solution Install Direct X 9.0c or above and Windows Media 9.0 Codecs to solve this problem. See “Installing the driver I ...
Page 24
Appendix: A Flicker Settings Country England Germany France Italy Spain Russia Setting 50Hz 50Hz 50Hz 50Hz 50Hz 50Hz Country Portugal America Taiwan China Japan Korea Setting 50Hz 60Hz 60Hz 50Hz 50/60...
Page 25
Appendix: B Instruction for Arc Soft Media Converter™ Introduction Arc Soft Media Converter is a powerful all-in-one multimedia file converter. This utility quickly and effortlessly converts photo, vi...
Page 26
Appendix: B Supported file formats Video Video files are converted and copied to the selected location as MPEG-4 encoded AVI files, WMV files or MPEG-4 encoded ASF files (Default). Supported file type...
Page 27
Appendix: B Converted files
Page 28
Appendix: B Step 1: Select media Adding files for conversion 1 Click the “Select Media” button. 2 An “Open” window will appear. Navigate to the folder that contains the files you’d like to convert. a....
Page 29
Appendix: B Step 2: Select destination Click the “Select Destination” button to select the location where your converted files will be saved. The default save location is “C:\Documents and Settings\ [...
Page 30
Appendix: B Video settings When converting a video file, there are several different parameters: - Resolution (Options include QVGA (320 x 240) [default] and VGA (640 x 480)) - File Format (MPEG-4 enc...
Page 31
Appendix: B Playing the converted ASF files in your camcorder To play the video clips or movies (MPEG-4 in ASF format only) converted by Arc Soft Media Converter in your MPEG-4 digital camcorder, plea...
Page 32
Appendix: C System Requirements Operating System: Windows 2000/XP CPU: Pentium III or above System RAM: 128MB or above Graphic Card: 64MB, 24 bit true color CD-ROM speed: 4x or above Software: Direct ...
Manual Details
| Brand | AIPTEK |
|---|---|
| Pages | 32 |
| File Size | 2.86 MB |
| Published | May 13, 2026 |
195 views
Enter the captcha to get the download link:
Frequently Asked Questions
What should I do if I store the camera for an extended period?
Remove the battery, as a deteriorated battery may affect functionality.
How can I reset my file's serial number count on the SD card?
Use the camcorder's 'Format' function to format the card.
What steps are needed to watch converted ASF files on the camcorder?
Insert the SD card, connect to PC via USB, save the files in the 100MEDIA folder, and rename them.ASF.
What should I do if my camera interferes with nearby radio or TV equipment?
Try reorienting the receiving antenna, moving the equipment away from the receiver, or using a different electrical circuit.
