Page 1

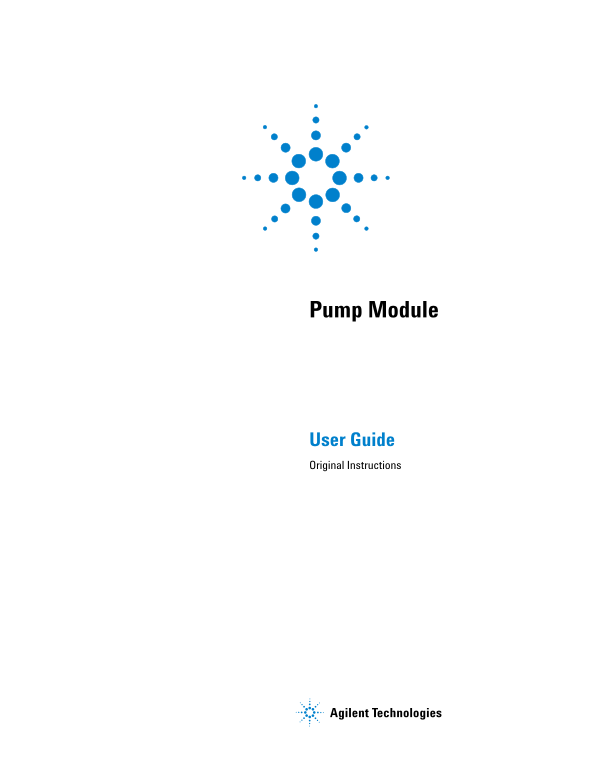

Pump Module User Guide Original Instructions Agilent Technologies
Page 2
Notices © Agilent Technologies, Inc. 2011 Warranty (June1987) or DFAR 252.227-7015 (b)(2) (November 1995), as applicable in any No part of this manual may be reproduced The material contained in this ...
Page 3
Pump Module User Guide Pump Module User Guide This guide describes the Agilent Pump Module, which fills and empties Agilent autofilling reservoirs. This guide contains the following topics: “Safety an...
Page 4
Pump Module User Guide Safety and regulatory compliance Safety and regulatory compliance General safety information Agilent Technologies products must only be used in the manner described in the Agile...
Page 5
Pump Module User Guide Safety and regulatory compliance The following figure shows symbols that are located underneath each pump head cover. Figure Safety symbols under the opened pump head cover Pump...
Page 6
Pump Module User Guide Safety and regulatory compliance Compliance standards The Pump Module complies with the applicable EU Directives and bears the CE mark. See the Declaration of Conformity for det...
Page 7
Pump Module User Guide Laboratory setup requirements Laboratory setup requirements Placement considerations The Pump Module must be located near a power source to connect the power cord, and near the ...
Page 8
Pump Module User Guide Pump Module overview and components Specification Value Environmental Operating temperature 0–40 °C Humidity condition 10–90% RH, non- condensing Elevation 1–2000 m Related info...
Page 9
Pump Module User Guide Pump Module overview and components Figure Pump Module front view (left) and rear view (right) 100V-240V 50/60Hz 1.5 Amps Item Feature Description Power Turns on or turns off th...
Page 10
Pump Module User Guide Setup workflow Related information For information about... See... Pump Module specificationsj “Laboratory setup requirements” on Pump Module maintenance “Maintenance and troubl...
Page 11
Pump Module User Guide Autofilling reservoir options Autofilling reservoir options About this topic This topic describes the following containers that can be automatically filled and emptied using the...
Page 12
Pump Module User Guide Autofilling reservoir options Figure Tip Wash Station: 96-chimney (left) and 384-chimney (right) Bravo micro wash tray assy 96 Item Description Inlet ports. Fill the wash statio...
Page 13
Pump Module User Guide Autofilling reservoir options Figure Open Wash Reservoir To set up the tubing for each mode: Item Description Overflow mode Fill and empty mode Inlet ports Connected to input Co...
Page 14
Pump Module User Guide Connecting the Pump Module Connecting the Pump Module About this topic This topic describes how to connect the cables and route the tubing. Connecting power and communication Be...
Page 15
Pump Module User Guide Connecting the Pump Module Figure Pump Module communications cable (1) with EMI filter (2) 100V-240V 50/60Hz 1.5 Amps To connect multiple Pump Modules, use a second serial cable...
Page 16
Pump Module User Guide Connecting the Pump Module Figure Example tubing configuration showing components Item Component Description Source Supplies the fill liquid for an autofilling reservoir, such a...
Page 17
Pump Module User Guide Connecting the Pump Module WARNING Ensure that the Pump Module and the liquid-handling device are turned off before routing the tubing. Workflow for routing the tubing Perform t...
Page 18
Pump Module User Guide Connecting the Pump Module Figure Example tubing configuration for a Tip Wash Station: (1) input ports, (2) 3-way connectors, (3) quick-disconnect fittings, and (4) output ports...
Page 19
Pump Module User Guide Connecting the Pump Module CAUTION Ensure that the tubing is not kinked, twisted, or stretched against the rollers. Make sure that the tube is not crushed in the clamps. Determi...
Page 20
Pump Module User Guide Connecting the Pump Module Figure Open pump head (side view) showing fully open clamp and clamp dial Tip Wash Station only. For the input flow (fill direction) into the Tip Wash...
Page 21
Pump Module User Guide Connecting the Pump Module Connect the other end of tube A to the quick- disconnect fitting on the end of tube A that is connected to the reservoir output ports. To connect the ...
Page 22
Pump Module User Guide Installing a Weigh Station Disconnect the Pump Module power and communication cables. Unplug the Weigh Station cable from the Pump Module. Disconnect the tubing from the reservo...
Page 23
Pump Module User Guide Installing a Weigh Station Figure Weigh Station Installing the Weigh Station Before you begin Determine where to install the Weigh Station. The Weigh Station must be close enoug...
Page 24
Pump Module User Guide Maintenance and troubleshooting For information about... See... Calibrating the Weigh Station User documentation for the automation software at www.agilent.com/ lifesciences/aut...
Page 25
Pump Module User Guide Maintenance and troubleshooting WARNING Ensure that the Pump Module is turned off before you clean the device. CAUTION Do not use any abrasives, corrosive cleaning agents, or me...
Page 26
Pump Module User Guide Maintenance and troubleshooting Figure Open pump head (side view) showing (1) open clamp and (2) clamp dial To change the tube clamp adjustment: Lift the flip- top cover on the ...
Page 28
Agilent Technologies User Guide G5406-90001 Revision 02, October 2011
