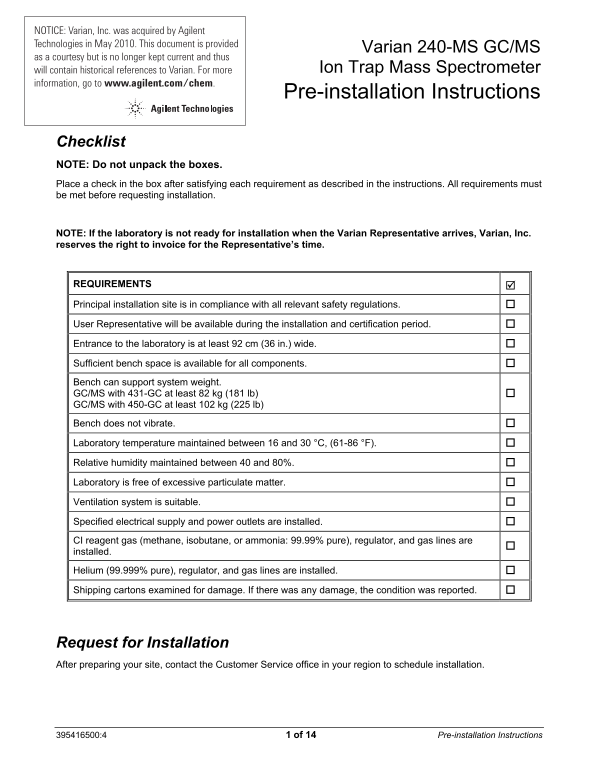

Varian 240-MS GC/MS Ion Trap Mass Spectrometer
Pre-installation Instructions
Checklist NOTE: Do not unpack the boxes. Place a check in the box after satisfying each requirement as described in the instructions. All requirements must be met before requesting installation.
NOTE: If the laboratory is not ready for installation when the Varian Representative arrives, Varian, Inc. reserves the right to invoice for the Representative’s time.
REQUIREMENTS
Principal installation site is in compliance with all relevant safety regulations.
User Representative will be available during the installation and certification period.
Entrance to the laboratory is at least 92 cm (36 in.) wide.
Sufficient bench space is available for all components. Bench can support system weight. GC/MS with 431-GC at least 82 kg (181 lb) GC/MS with 450-GC at least 102 kg (225 lb) Bench does not vibrate.
Laboratory temperature maintained between 16 and 30 °C, (61-86 °F).
Relative humidity maintained between 40 and 80%.
Laboratory is free of excessive particulate matter.
Ventilation system is suitable.
Specified electrical supply and power outlets are installed. CI reagent gas (methane, isobutane, or ammonia: 99.99% pure), regulator, and gas lines are installed. Helium (99.999% pure), regulator, and gas lines are installed.
Shipping cartons examined for damage. If there was any damage, the condition was reported.
Request for Installation After preparing your site, contact the Customer Service office in your region to schedule installation.
395416500:4 1 of 14 Pre-installation Instructions
Page Summary Contents For Agilent GC MS Ion Trap Mass Spectrometer Pre-Installation Instructions
Manual Details
| Brand | ION |
|---|---|
| Pages | 14 |
| File Size | 509.34 KB |
| Published | May 24, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What environmental conditions must the lab maintain?
The temperature must be between 16 and 30 °C (61-86 °F), relative humidity between 40 and 80%, and the area should be free of excessive particulate matter.
Is specialized training needed before operation?
No; the Varian Representative will demonstrate fundamental operation and maintenance procedures during installation, but routine preventive maintenance is the customer's responsibility.
What is required for proper installation site preparation?
The lab must comply with all relevant safety regulations and provide sufficient bench space that can support the system weight (e.g., at least 102 kg for GC/MS with 450-GC).
If the gas supply causes a problem, is it covered by warranty?
No, any instrument problems resulting from a contaminated gas supply are billable and not included in the Warranty.
