Ensure seamless setup of your Varian LC/MS Mass Spectrometer System. This comprehensive guide provides essential pre-installation instructions and a detailed checklist, ensuring all site requirements are met before the expert representative arrives. It covers critical aspects such as safety compliance, required power specifications, proper environmental controls (temperature and humidity), bench capacity, and material readiness. Essential reading for laboratory managers and technical staff responsible for preparing a functional and compliant environment for optimal system performance.
Page 1 Text Content

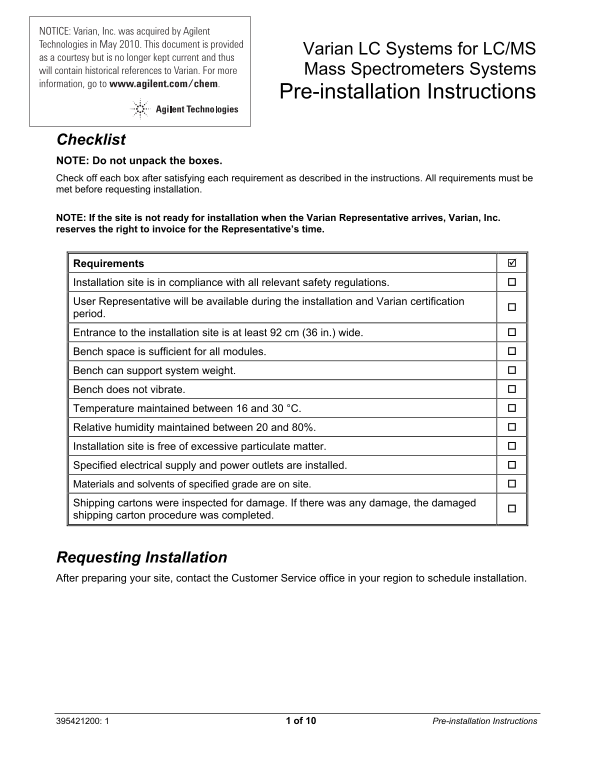

Varian LC Systems for LC/MS Mass Spectrometers Systems Pre-installation Instructions
Checklist NOTE: Do not unpack the boxes. Check off each box after satisfying each requirement as described in the instructions. All requirements must be met before requesting installation.
NOTE: If the site is not ready for installation when the Varian Representative arrives, Varian, Inc. reserves the right to invoice for the Representative’s time.
Requirements Installation site is in compliance with all relevant safety regulations. User Representative will be available during the installation and Varian certification period. Entrance to the installation site is at least 92 cm (36 in.) wide. Bench space is sufficient for all modules. Bench can support system weight. Bench does not vibrate. Temperature maintained between 16 and 30 °C. Relative humidity maintained between 20 and 80%. Installation site is free of excessive particulate matter. Specified electrical supply and power outlets are installed. Materials and solvents of specified grade are on site. Shipping cartons were inspected for damage. If there was any damage, the damaged shipping carton procedure was completed.
Requesting Installation After preparing your site, contact the Customer Service office in your region to schedule installation.
395421200: 1 1 of 10 Pre-installation Instructions
Page Summary Contents For Agilent Technologies LC Systems for LC-MS Mass Spectrometers Systems - Pre-Installation Instructions & Manuals
Manual Details
| Brand | Agilent Technologies |
|---|---|
| Pages | 10 |
| File Size | 699.79 KB |
| Published | May 13, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What environmental conditions must the installation site maintain?
The temperature must be maintained between 16 and 30 °C, and relative humidity between 20 and 80% in a particulate matter-free area.
Who is responsible for system upkeep after installation?
The user is responsible for performing routine and preventive maintenance of the LC, autosampler, MS, and data system.
What safety requirements must I confirm before scheduling installation?
You must ensure the site complies with all relevant local safety regulations and that there is sufficient clearance to move the shipping container.
When can I begin analyzing samples after the unit arrives?
Plan to analyze your samples only after the installation is complete and you have accepted the conditions of delivery, which requires at least three days.
