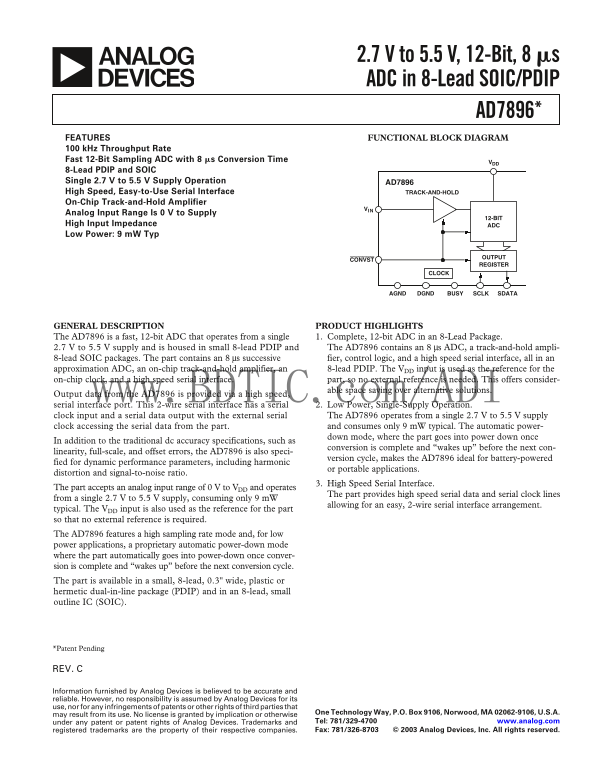

Page 1 Text Content

2.7 V to 5.5 V, 12-Bit, 8 s ADC in 8-Lead SOIC/PDIP

AD7896*

FEATURES FUNCTIONAL BLOCK DIAGRAM 100 k Hz Throughput Rate Fast 12-Bit Sampling ADC with 8 s Conversion Time

8-Lead PDIP and SOIC Single 2.7 V to 5.5 V Supply Operation AD7896 High Speed, Easy-to-Use Serial Interface TRACK-AND-HOLD On-Chip Track-and-Hold Amplifier

Analog Input Range Is 0 V to Supply

12-BIT

High Input Impedance ADC Low Power: 9 m W Typ

OUTPUT

CONVST

REGISTER

CLOCK

AGND DGND BUSY SCLK SDATA

GENERAL DESCRIPTION PRODUCT HIGHLIGHTS The AD7896 is a fast, 12-bit ADC that operates from a single 1. Complete, 12-bit ADC in an 8-Lead Package. 2.7 V to 5.5 V supply and is housed in small 8-lead PDIP and The AD7896 contains an 8 µs ADC, a track-and-hold ampli- 8-lead SOIC packages. The part contains an 8 µs successive fier, control logic, and a high speed serial interface, all in an approximation ADC, an on-chip track-and-hold amplifier, an 8-lead PDIP. The VDD input is used as the reference for the

on-chip clock, and a high speed serial interface. part, so no external reference is needed. This offers consider- able space saving over alternative solutions.

Output data from the AD7896 is provided via a high speed,

www.BDTIC.c m/ADI

serial interface port. This 2-wire serial interface has a serial 2. Low Power, Single-Supply Operation. clock input and a serial data output with the external serial The AD7896 operates from a single 2.7 V to 5.5 V supply clock accessing the serial data from the part. and consumes only 9 m W typical. The automatic power- down mode, where the part goes into power down once

In addition to the traditional dc accuracy specifications, such as

conversion is complete and “wakes up” before the next con-

linearity, full-scale, and offset errors, the AD7896 is also speci-

version cycle, makes the AD7896 ideal for battery-powered

fied for dynamic performance parameters, including harmonic

or portable applications.

distortion and signal-to-noise ratio.

3. High Speed Serial Interface.

The part accepts an analog input range of 0 V to VDD and operates

The part provides high speed serial data and serial clock lines

from a single 2.7 V to 5.5 V supply, consuming only 9 m W

allowing for an easy, 2-wire serial interface arrangement.

typical. The VDD input is also used as the reference for the part so that no external reference is required. The AD7896 features a high sampling rate mode and, for low power applications, a proprietary automatic power-down mode where the part automatically goes into power-down once conver- sion is complete and “wakes up” before the next conversion cycle. The part is available in a small, 8-lead, 0.3'' wide, plastic or hermetic dual-in-line package (PDIP) and in an 8-lead, small outline IC (SOIC).

*Patent Pending

Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

may result from its use. No license is granted by implication or otherwise

under any patent or patent rights of Analog Devices. Trademarks and Tel: 781/329-4700 www.analog.com registered trademarks are the property of their respective companies. Fax: 781/326-8703 © 2003 Analog Devices, Inc. All rights reserved.

Page Summary Contents For AD7896 Analog Devices Data Handbook/Manual

Page 1 2.7 V to 5.5 V, 12-Bit, 8 s ADC in 8-Lead SOIC/PDIP AD7896* FEATURES FUNCTIONAL BLOCK DIAGRAM 100 k Hz Throughput Rate Fast 12-Bit Sampling ADC with 8 s Conversion Time 8-Lead PDIP and SOIC Single 2...
Page 2 (VDD = 2.7 V to 5.5 V, AGND = DGND = 0 V. All specifications TMIN to TMAX, AD7896–SPECIFICATIONS unless otherwise noted.) Test Conditions/ Parameter A Version1 B Version J Version S Version Unit Comme...
Page 3 AD7896 Test Conditions/ Parameter A Version1 B Version J Version S Version Unit Comments POWER REQUIREMENTS VDD 2.7/5.5 2.7/5.5 2.7/5.5 2.7/5.5 V min/max IDD m A max Digital Input @ DGND, VDD = 2.7 V ...
Page 4 AD7896 ABSOLUTE MAXIMUM RATINGS* PDIP Package, Power Dissipation . . . . . . . . . . . . . . . . 450 m W (TA = 25°C, unless otherwise noted.) JA Thermal Impedance . . . . . . . . . . . . . . . . . . ....
Page 5 AD7896 PIN CONFIGURATION VIN BUSY VDD AD7896 CONVST TOP VIEW AGND (Not to Scale) DGND SCLK SDATA PIN FUNCTION DESCRIPTIONS Pin No. Mnemonic Description VIN Analog Input. The analog input range is 0 V ...
Page 6 AD7896 TERMINOLOGY Total Harmonic Distortion Relative Accuracy Total harmonic distortion (THD) is the ratio of the rms sum of This is the maximum deviation from a straight line passing harmonics to th...
Page 7 AD7896 CONVERTER DETAILS track-and-hold is greater than the Nyquist rate of the ADC even The AD7896 is a fast, 12-bit ADC that operates from a single when the ADC is operated at its maximum throughput...
Page 8 AD7896 OPERATING MODES before the next conversion takes place. This is achieved by Mode 1 Operation (High Sampling Performance) keeping CONVST low at the end of conversion, whereas it was The timing d...
Page 9 AD7896 Serial Interface must be low when CONVST goes low in order to reset the The serial interface to the AD7896 consists of three wires: a output shift register correctly. serial clock input (SCLK),...
Page 10 AD7896 To chip select the AD7896 in systems where more than one The BUSY line can be connected to the IRQ line of the device is connected to the 8X51/L51 serial port, a port bit, 68HC11/L11 if an inte...
Page 11 AD7896 An alternative scheme is to configure the ADSP-2103/ADSP-2105 Figure 9 shows a histogram plot for 8192 conversions of a dc such that it accepts an external noncontinuous serial clock. In input ...
Page 12 AD7896 Dynamic Performance (Mode 1 Only) 12.00 With a combined conversion and acquisition time of 9.5 µs, the AD7896 is ideal for wide bandwidth signal processing applications. These applications requ...
Page 13 AD7896 OUTLINE DIMENSIONS 8-Lead Plastic Dual In-Line Package [PDIP] 8-Lead Ceramic Dual In-Line Package [CERDIP] Dimensions shown in inches and (millimeters) Dimensions shown in inches and (millimete...
Page 14 AD7896 Revision History Location Page 7/03—Data Sheet changed from REV. B to REV. C. Changes to SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ....
