AD9215 Analog Devices Data Handbook/Manual
Summary

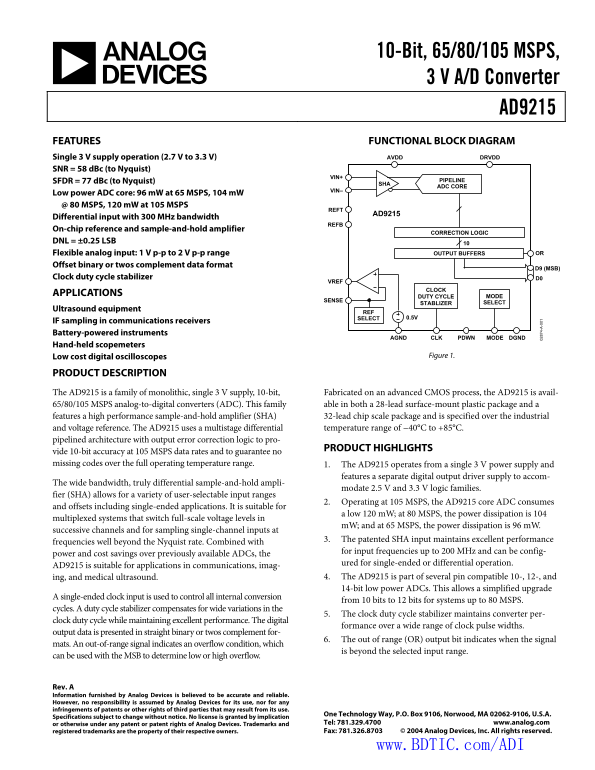

This 10-bit ADC family provides high-speed, low-power signal conversion across multiple rates (65–105 MSPS) using a single 3V supply. Designed with ultra-wideband differential inputs and advanced correction logic, it guarantees reliable, high-accuracy data over extreme temperature ranges. The manual details the architecture, application modes, functional diagrams, and specifications required for integration into complex measurement systems like medical ultrasound equipment, communications receivers, and digital oscilloscopes. This device is essential for engineers developing advanced, miniaturized hardware requiring superior analog signal fidelity.
Manual Details
| Brand | Analog Devices |
|---|---|
| Pages | 36 |
| File Size | 1.17 MB |
| Published | May 14, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What power supply does the AD9215 use?
It operates from a single 3 V power supply (range: 2.7 V to 3.3 V).
How is the maximum power consumption at various speeds?
At 105 MSPS, it consumes 120 mW; at 80 MSPS, it's 104 mW; and at 65 MSPS, it's 96 mW.
What is the operational temperature range?
The device temperature range is industrial: −40°C to +85°C.
How does the clock duty cycle stabilizer work?
It compensates for wide variations in the clock pulse width while maintaining excellent performance of the converter.
