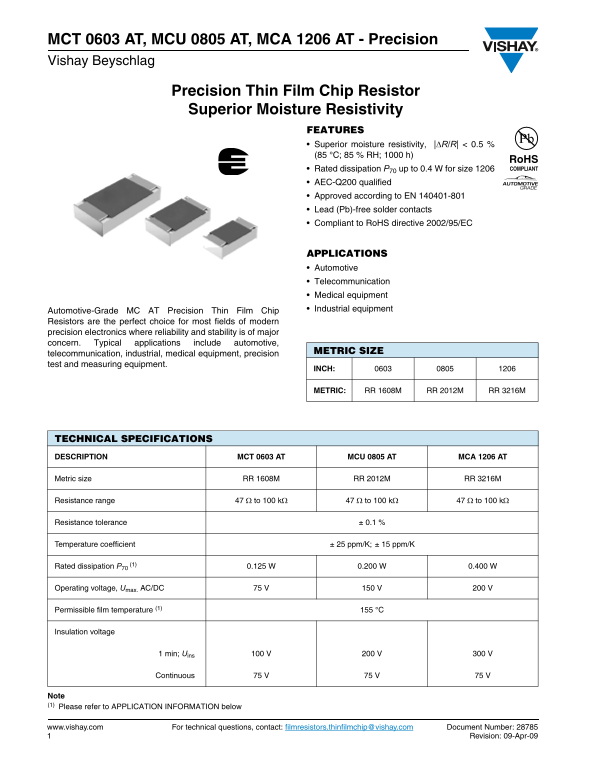

MCT 0603 AT, MCU 0805 AT, MCA 1206 AT - Precision Vishay Beyschlag
Precision Thin Film Chip Resistor Superior Moisture Resistivity
FEATURES Superior moisture resistivity, |ΔR/R| < 0.5 % (85 °C; 85 % RH; 1000 h) Rated dissipation P70 up to 0.4 W for size 1206 AEC-Q200 qualified Approved according to EN 140401-801 Lead (Pb)-free solder contacts Compliant to Ro HS directive 2002/95/EC
APPLICATIONS Automotive Telecommunication Medical equipment Automotive-Grade MC AT Precision Thin Film Chip Industrial equipment
Resistors are the perfect choice for most fields of modern precision electronics where reliability and stability is of major concern. Typical applications include automotive,
METRIC SIZE
telecommunication, industrial, medical equipment, precision test and measuring equipment.
INCH:
METRIC: RR 1608M RR 2012M RR 3216M
TECHNICAL SPECIFICATIONS DESCRIPTION MCT 0603 AT MCU 0805 AT MCA 1206 AT
Metric size RR 1608M RR 2012M RR 3216M
Resistance range to 100 kΩ to 100 kΩ to 100 kΩ
Resistance tolerance ± 0.1 %
Temperature coefficient ± 25 ppm/K; ± 15 ppm/K
Rated dissipation P70 0.125 W 0.200 W 0.400 W
Operating voltage, Umax. AC/DC
Permissible film temperature (1) 155 °C
Insulation voltage
1 min; Uins
Continuous
Note (1) Please refer to APPLICATION INFORMATION below
www.vishay.com For technical questions, contact: [email protected] Document Number: 28785
Revision: 09-Apr-09
