ViewSonic E771 Monitor User Guide and Manual
Summary
This product specification sheet details the features and technical specifications of the ViewSonic E771 17-inch CRT monitor, highlighting its 0.27mm dot pitch, 1280 x 1024 maximum resolution, flicker-free refresh rates, OnView on-screen display controls with color calibration, anti-static anti-glare screen coating, and PC and Macintosh compatibility for home and office users.

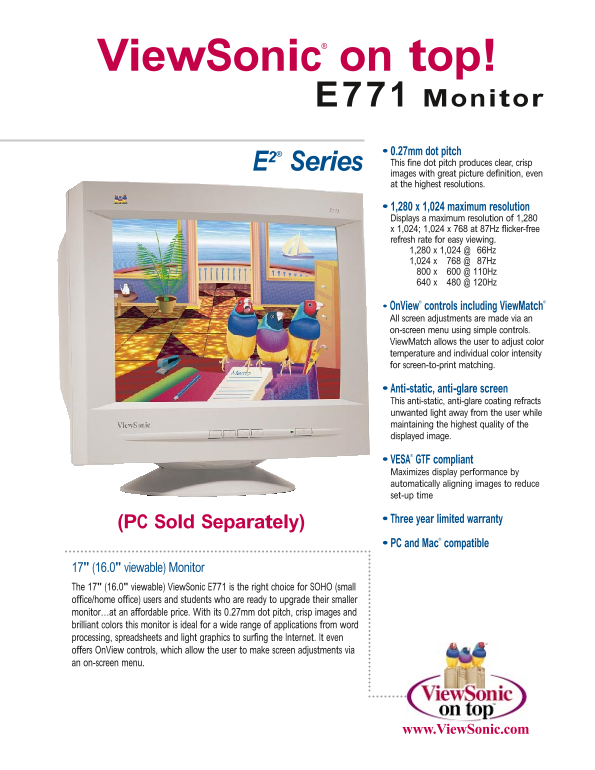

Page 1 Text Content
View Sonic® on top!
E771 Monitor • 0.27mm dot pitch E2® Series This fine dot pitch produces clear, crisp images with great picture definition, even at the highest resolutions.
1,280 x 1,024 maximum resolution Displays a maximum resolution of 1,280 x 1,024; 1,024 x 768 at 87Hz flicker-free refresh rate for easy viewing. 1,280 x 1,024 @ 66Hz 1,024 x ,768 @ 87Hz ,800 x ,600 @ 110Hz ,640 x ,480 @ 120Hz
• On View® controls including View Match® All screen adjustments are made via an on-screen menu using simple controls. View Match allows the user to adjust color temperature and individual color intensity for screen-to-print matching.
• Anti-static, anti-glare screen This anti-static, anti-glare coating refracts unwanted light away from the user while maintaining the highest quality of the displayed image.
• VESA® GTF compliant Maximizes display performance by automatically aligning images to reduce set-up time
• Three year limited warranty
(PC Sold Separately)
• PC and Mac® compatible
17" (16.0" viewable) Monitor The 17" (16.0" viewable) View Sonic E771 is the right choice for SOHO (small office/home office) users and students who are ready to upgrade their smaller monitor…at an affordable price. With its 0.27mm dot pitch, crisp images and brilliant colors this monitor is ideal for a wide range of applications from word processing, spreadsheets and light graphics to surfing the Internet. It even offers On View controls, which allow the user to make screen adjustments via an on-screen menu.
www.View Sonic.com
Page Summary Contents For ViewSonic E771 Monitor User Guide and Manual
Manual Details
| Brand | VIEWSONIC |
|---|---|
| Pages | 2 |
| File Size | 96.57 KB |
| Published | June 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum resolution supported by this monitor?
The maximum resolution displayed is 1,280 x 1,024.
Does the monitor have built-in color adjustment features?
Yes, it includes OnView controls and ViewMatch to adjust color temperature and individual color intensity for matching.
What kind of input signals are supported?
It supports Video RGB analog (75 ohms), Sync H/V Separate (TTL), and other connections via specified cables.
Is the physical screen protected from glare?
The monitor features an anti-static, anti-glare screen coating to refract unwanted light while maintaining image quality.
