This comprehensive user guide provides professionals with everything needed to properly install and operate large format commercial display units. It covers detailed technical specifications, robust system connection procedures (including RS-232 control), and comprehensive setup controls for advanced features like video wall tiling (stitching) and signal source selection. Perfect for IT integrators, corporate installers, and dealers, this manual ensures safe operation, optimal performance, and efficient troubleshooting for complex display environments.

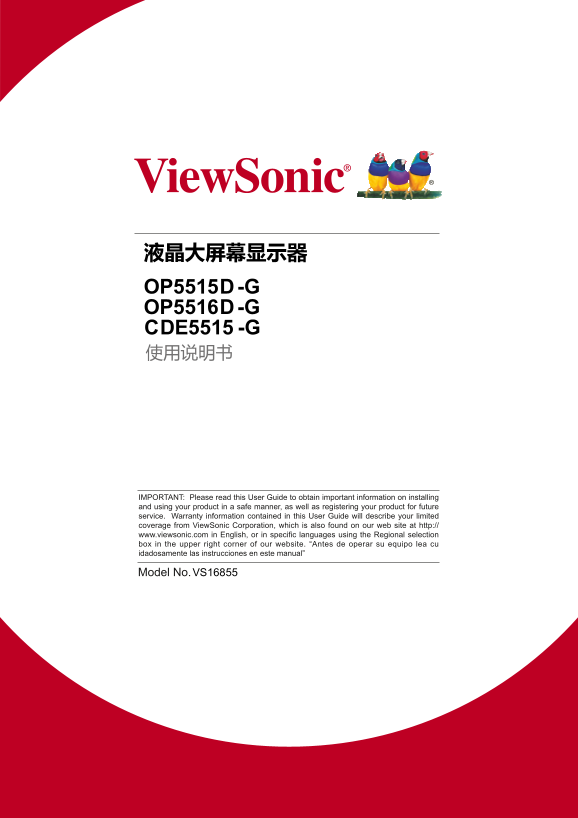

Page 1 Text Content
OP5515D-G OP5516D-G CDE5515 -G
IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in a safe manner, as well as registering your product for future service. Warranty information contained in this User Guide will describe your limited coverage from View Sonic Corporation, which is also found on our web site at http:// www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right corner of our website. “Antes de operar su equipo lea cu idadosamente las instrucciones en este manual”
Model No. VS16855
Page Summary Contents For ViewSonic CDE5515-G User Guide (English)
Manual Details
| Brand | VIEWSONIC |
|---|---|
| Pages | 23 |
| File Size | 1.58 MB |
| Published | May 31, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How should I clean the display and casing?
After turning off and unplugging the unit, use a specialized dust cloth. If necessary, wipe with clear water or water-free ethanol (99.99%); alternatively, use dry, oil-free compressed air.
What precautions must I take during maintenance?
Before any maintenance, always turn off the AC input switch or unplug the cable. The LCD screen is fragile; never press it with hands or sharp objects, and do not place it face down.
How do I connect the control lines for a video wall system?
Use RS-232 signals. For inter-screen linking, use an RJ45 connector pair (both ends 568B standard wiring). Screen to computer uses two ends of 568B and an RJ45 to RS232 adapter.
If the display doesn't turn on, what should I check?
Check the power cable for damage, ensure it is connected to mains electricity, confirm the unit's power switch is on, and verify that there are no blown fuses.
