ST DCPL-WB-00C2 Wide-band, dual-path directional coupler with ISO port

Summary

This versatile dual-path directional coupler is specifically designed for measuring cellular transmission output power across a wide bandwidth, covering frequencies from 824 MHz to 2170 MHz. It ensures low insertion loss (<0.2 dB) and high directivity via dedicated Low Band (LB) and High Band (HB) paths. The manual provides RF engineers and designers with comprehensive technical specifications, detailed electrical characteristics, and measurement data needed for integrating the module into GSM/WCDMA base stations and multi-band mobile phone front-end modules.

📄 Preview 📖 Table of Contents Contents PAGE OF 11

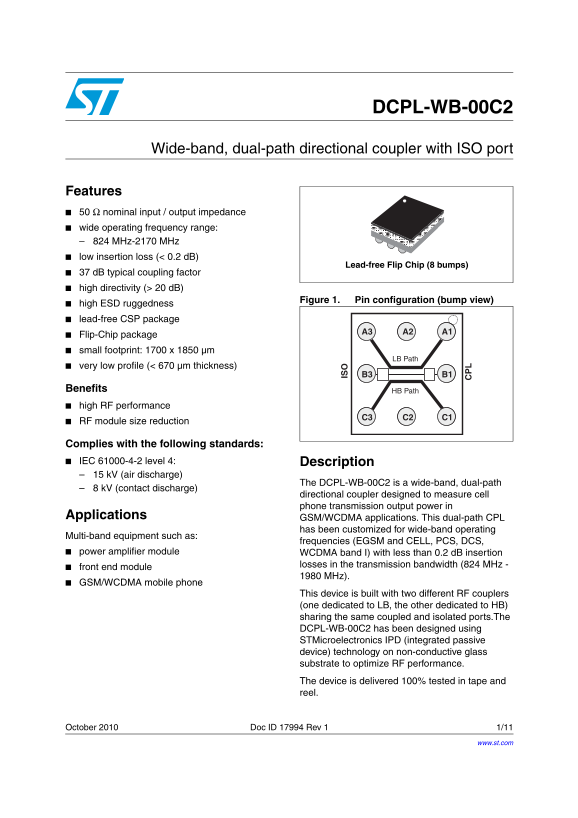

Page 1 Text Content

DCPL-WB-00C2

Wide-band, dual-path directional coupler with ISO port

Features 50 Ω nominal input / output impedance wide operating frequency range: 824 MHz-2170 MHz low insertion loss (< 0.2 d B)

Lead-free Flip Chip (8 bumps)

37 d B typical coupling factor high directivity (> 20 d B)

Figure 1. Pin configuration (bump view)

high ESD ruggedness lead-free CSP package

Flip-Chip package small footprint: 1700 x 1850 µm

LB Path

very low profile (< 670 µm thickness)

B1B3IS

Benefits HB Path

high RF performance

RF module size reduction

Complies with the following standards: IEC 61000-4-2 level 4: Description 15 k V (air discharge)

The DCPL-WB-00C2 is a wide-band, dual-path

8 k V (contact discharge)

directional coupler designed to measure cell phone transmission output power in

Applications GSM/WCDMA applications. This dual-path CPL

has been customized for wide-band operating

Multi-band equipment such as:

frequencies (EGSM and CELL, PCS, DCS,

power amplifier module WCDMA band I) with less than 0.2 d B insertion

losses in the transmission bandwidth (824 MHz -

front end module

1980 MHz).

GSM/WCDMA mobile phone

This device is built with two different RF couplers (one dedicated to LB, the other dedicated to HB) sharing the same coupled and isolated ports.The DCPL-WB-00C2 has been designed using STMicroelectronics IPD (integrated passive device) technology on non-conductive glass substrate to optimize RF performance. The device is delivered 100% tested in tape and reel.

October 2010 Doc ID 17994 Rev 1 1/11

www.st.com

Page Summary Contents For ST DCPL-WB-00C2 Wide-band, dual-path directional coupler with ISO port

Page 1 DCPL-WB-00C2 Wide-band, dual-path directional coupler with ISO port Features 50 Ω nominal input / output impedance wide operating frequency range: 824 MHz-2170 MHz low insertion loss (&lt; 0.2 d B) Le...
Page 2 Characteristics DCPL-WB-00C2 1 Characteristics Table 1. Device pin configuration Bump Name Description A1 Lbin LB coupler RF input A2 GND RF ground A3 Lbout LB coupler RF output B1 CPLD Coupler port B...
Page 3 DCPL-WB-00C2 Characteristics Table 4. Electrical characteristics - LB path RF performance (Tamb = 25 °C) Value Symbol Parameter Test condition Unit Min. Typ. Max. Operating temperature -30 +85 °C Freq...
Page 4 Characteristics DCPL-WB-00C2 1.1 RF measurement (on reference evaluation board) Measurements done on reference evaluation board under 50 Ω, de-embedding at DCPL-WB-00D3 bumps. Figure 2. Low band path ...
Page 5 DCPL-WB-00C2 Characteristics Figure 5. High band path coupling factor CPLD - HB (d B) -28 -29 -30 -31 -32 -33 -34 -35 F (MHz) Figure 6. Low band path directivity DIR - LB (d B) F (MHz) Figure 7. High ...
Page 6 Characteristics DCPL-WB-00C2 Figure 8. Demo board description - layer 1 Copper pad diameter: 275 µm Figure 9. Solder mask 1 + layer 1 Solder mask diameter: 375 µm 6/11 Doc ID 17994 Rev 1
Page 7 DCPL-WB-00C2 Ordering information scheme 2 Ordering information scheme Figure 10. Ordering information scheme DCPL WB C2 Dual high directivity coupler Wide band Version Package C2 = Coated Flip Chip, ...
Page 8 Package information DCPL-WB-00C2 3 Package information Epoxy meets UL94, V0 Lead-free package In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK® packa...
Page 9 DCPL-WB-00C2 Package information Figure 14. Flip-Chip tape and reel specifications Dot identifying Pin A1 location ST ST ST xxz xxz xxz 8. yww yww yww User direction of unreeling All dimensions are ty...
Page 10 Ordering information DCPL-WB-00C2 4 Ordering information Table 6. Ordering information Order code Marking Package Weight Base qty Delivery mode DCPL-WB-00C2 RN Flip Chip 3.65 mg 5000 Tape and reel 5 R...
Page 11 DCPL-WB-00C2 Please Read Carefully: Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes,...

Manual Details

Brand Dual
Pages 11
File Size 139.14 KB
Published June 01, 2026
50 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What operating frequency bandwidth does this coupler support?

It supports a wide operating range from 824 MHz to 2170 MHz.

How low is the insertion loss on either path (LB or HB)?

The insertion loss must be less than 0.2 dB across the transmission bandwidth.

What technology was used for optimization to enhance RF performance?

It uses STMicroelectronics IPD (integrated passive device) technology built on a non-conductive glass substrate.

What are the recommended ESD ratings for this device?

The ratings include ±15 kV for air discharge and ±8 kV for contact discharge.

Are there specific impedances defined for the input/output ports?

Yes, both nominal input, output, coupled, and isolated port impedances are 50 Ω.
