Sound Spectrum for Optyma Slim Pack OP-MSXM068ML Data Sheet
Summary
Essential technical documentation providing comprehensive acoustic performance data for industrial condensing units. This manual features detailed sound power spectra and calculated noise levels across a wide frequency range, accounting for compressor and fan motor output under standard operating conditions. Designed for HVAC professionals, mechanical engineers, and system integrators, this resource ensures accurate specifications are available for equipment planning, compliance validation, and facility design.
Page 1 Text Content

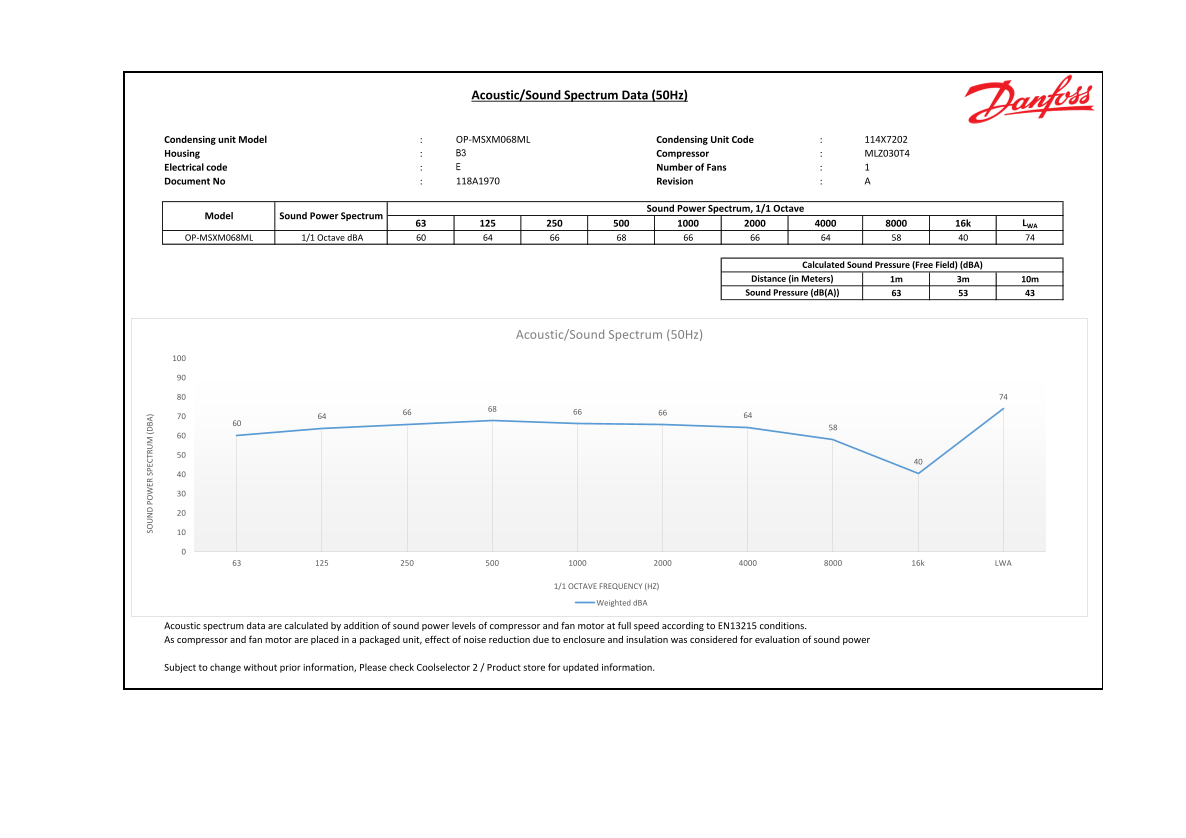

Acoustic/Sound Spectrum Data (50Hz)
Condensing unit Model OP-MSXM068ML Condensing Unit Code : 114X7202
SO ER EC TR
Housing B3 Compressor : MLZ030T4
Electrical code Number of Fans : 1
Document No 118A1970 Revision : A
Sound Power Spectrum, 1/1 Octave
Model Sound Power Spectrum
16k LWA
OP-MSXM068ML 1/1 Octave d BA
Calculated Sound Pressure (Free Field) (d BA)
Distance (in Meters) 1m 3m 10m Sound Pressure (d B(A))
Acoustic/Sound Spectrum (50Hz)
16k LWA
1/1 OCTAVE FREQUENCY (HZ)
Weighted d BA
Acoustic spectrum data are calculated by addition of sound power levels of compressor and fan motor at full speed according to EN13215 conditions. As compressor and fan motor are placed in a packaged unit, effect of noise reduction due to enclosure and insulation was considered for evaluation of sound power
