Sound Spectrum for Optyma Slim Pack OP-MSBM034AJ Data Sheet
Summary
This technical documentation provides comprehensive acoustic and sound power spectrum data for the condensing unit, including its compressor and fan motor. It details calculated noise levels across octave frequencies and varying distances (1m to 10m), ensuring full transparency regarding operational acoustics. This manual is essential for HVAC engineers, system integrators, and commercial specifiers who must verify performance compliance with industry standards like EN13215 during installation planning and equipment selection.
Page 1 Text Content

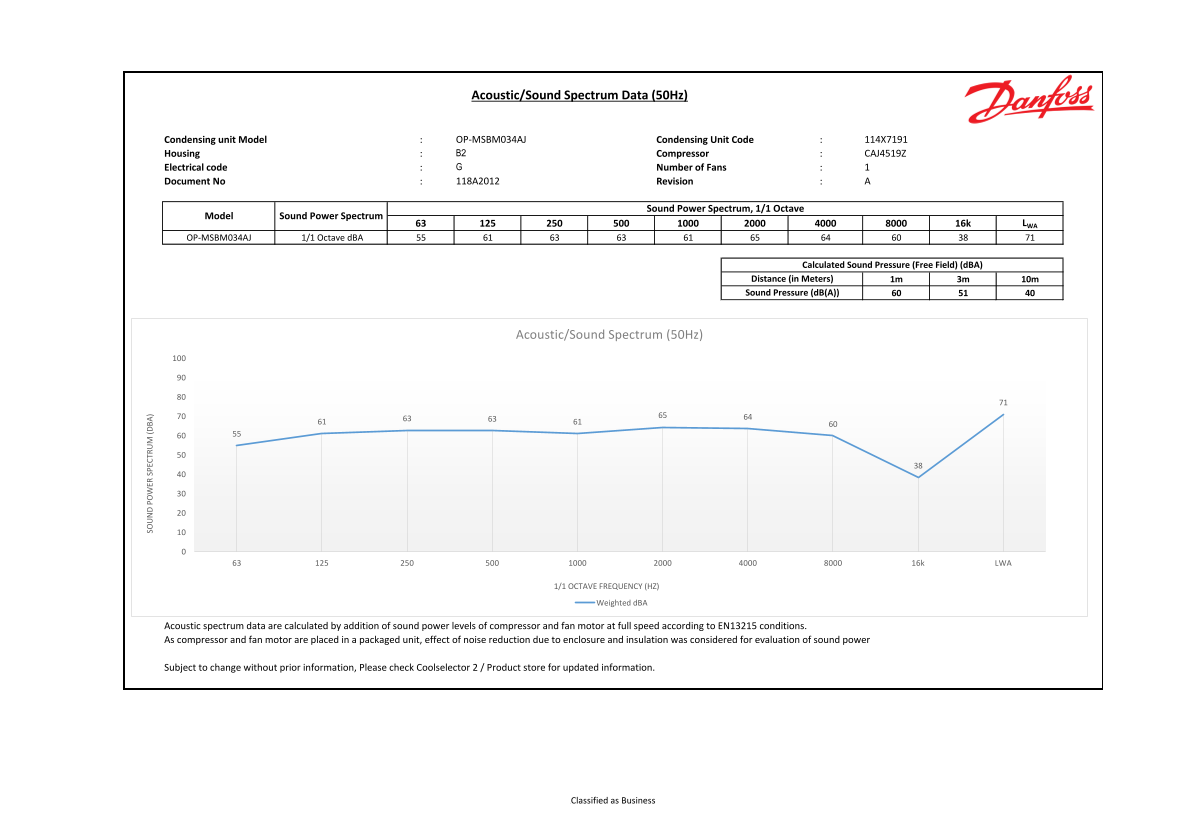

Acoustic/Sound Spectrum Data (50Hz)
Condensing unit Model OP-MSBM034AJ Condensing Unit Code : 114X7191
SO ER EC TR
Housing B2 Compressor : CAJ4519Z
Electrical code Number of Fans : 1
Document No 118A2012 Revision : A
Sound Power Spectrum, 1/1 Octave
Model Sound Power Spectrum
16k LWA
OP-MSBM034AJ 1/1 Octave d BA
Calculated Sound Pressure (Free Field) (d BA)
Distance (in Meters) 1m 3m 10m Sound Pressure (d B(A))
Acoustic/Sound Spectrum (50Hz)
16k LWA
1/1 OCTAVE FREQUENCY (HZ)
Weighted d BA
Acoustic spectrum data are calculated by addition of sound power levels of compressor and fan motor at full speed according to EN13215 conditions. As compressor and fan motor are placed in a packaged unit, effect of noise reduction due to enclosure and insulation was considered for evaluation of sound power
Subject to change without prior information, Please check Coolselector 2 / Product store for updated information.
