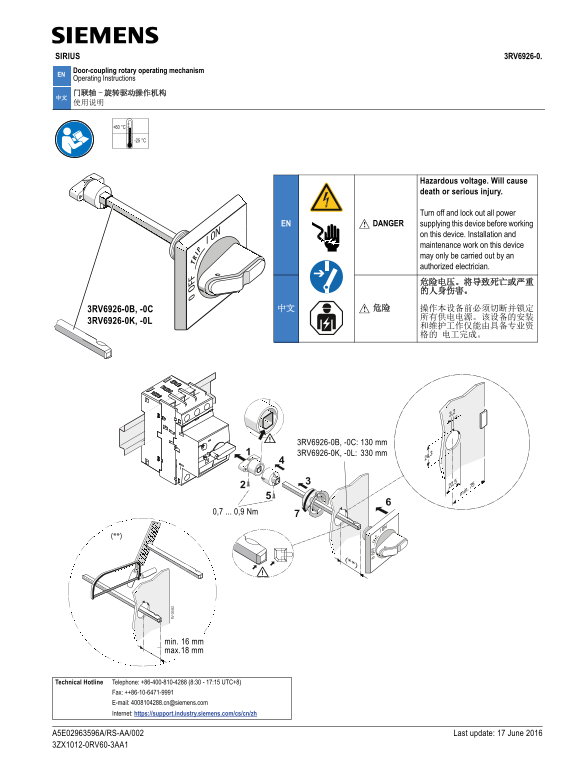

SIRIUS 3RV6926-0. Door-coupling rotary operating mechanism EN Operating Instructions 门联轴 旋转驱动操作机构 中文 使用说明
RV -0
Hazardous voltage. Will cause death or serious injury.
Turn off and lock out all power
EN DANGER supplying this device before working
on this device. Installation and maintenance work on this device may only be carried out by an authorized electrician. 危险电压。将导致死亡或严重 的人身伤害。
3RV6926-0B, -0C 中文 危险 操作本设备前必须切断并锁定
3RV6926-0K, -0L
3RV6926-0B, -0C: mm 3RV6926-0K, -0L: mm
0,7 ... 0,9 Nm
min. 16 mm max.18 mm
Technical Hotline Telephone: +86-400-810-4288 (8:30 - 17:15 UTC+8)
Fax: ++86-10-6471-9991 E-mail: [email protected] Internet: https://support.industry.siemens.com/cs/cn/zh
Last update: 17 June 2016A5E02963596A/RS-AA/002
3ZX1012-0RV60-3AA1
