This comprehensive manual is your definitive guide for operating and maintaining the SVR-24PRT/960PRT video recording unit. It provides detailed instructions on safe installation (including crucial electrical safeguards), routine operation, and expert maintenance procedures such as cleaning and oiling. Whether you are a professional utilizing time-lapse or continuous video monitoring capabilities, this guide ensures proper system function while strictly adhering to critical safety guidelines for continued reliable performance.
Page 1 Text Content

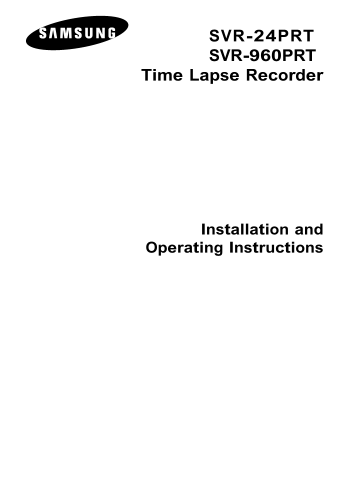

00250A SVR-24PRT/960PRT-E1 7/9/01 5:04 PM Page 1
SVR-24PRT SVR-960PRT
Time Lapse Recorder
Installation and Operating Instructions
Page Summary Contents For Samsung Soundbar SVR24PRT User's Manual
Page 1
00250A SVR-24PRT/960PRT-E1 7/9/01 5:04 PM Page 1 SVR-24PRT SVR-960PRT Time Lapse Recorder Installation and Operating Instructions
Page 2
00250A SVR-24PRT/960PRT-E1 7/9/01 5:04 PM Page 2 IMPORTANT SAFEGUARDS 1. Read Instructions - All the safety and operating instructions should spill liquid of any kind on the unit. Safety Precautions S...
Page 3
00250A SVR-24PRT/960PRT-E1 7/9/01 5:04 PM Page 4 IMPORTANT SAFEGUARDS CONTENTS Sicherheitsvorkenhrungen Precauciones De Seguridad ACHTUNG! PRECAUTION CONFIGURATION SERVICE HOCHSPANNUNGSGEFAHR RIESGO D...
Page 4
00250A SVR-24PRT/960PRT-E1 7/9/01 5:04 PM Page 6 CONTROLS AND INDICATORS Reference No Name Description POWER Push for power on/off REC MENU Push to display menu display SHIFT❷ , ❿ Push to set menu and...
Page 5
00250A SVR-24PRT/960PRT-E1 7/9/01 5:04 PM Page 8 CONTROLS AND INDICATORS CONNECTORS SIDE REAR SIDE Recording display Reserve timer recording Alarm recording display REC LOCK lamp • Lights during displ...
Page 6
00250A SVR-24PRT/960PRT-E1 7/9/01 5:04 PM Page 10 SET UP • Check the following preparations before using this unit. • The shape of the real power plug may be different from the shape in the manual. Ma...
Page 7
00250A SVR-24PRT/960PRT-E1 7/9/01 5:04 PM Page 12 HOW TO SET MENU 1. CLOCK SET/ADJUST 5. VCR MODE SETUP Press the MENU button VCR MODE SETUP CLOCK SET/ADJUST (Does not display while in play mode 1❿ SU...
Page 8
00250A SVR-24PRT/960PRT-E2 7/10/01 9:10 AM Page 14 SETTING CURRENT TIME – HOW TO SET THE SUMMER TIME Example) December 25 . 2002 13:30 Press the SHIFT ❿!button. Press the SHIFT ❷!button. Press the SHI...
Page 9
00250A SVR-24PRT/960PRT-E2 7/10/01 9:10 AM Page 16 SETTING CURRENT TIME SETTING MENU – HOW TO SET THE CURRENT TIME – SETTING DISPLAY AND ALARM REC Press the SHIFT ❷!button. Set the year, month and DIS...
Page 10
00250A SVR-24PRT/960PRT-E2 7/10/01 9:10 AM Page 18 SETTING MENU – SETTING REC MODE AND VCR MODE REC MODE SETUP VCR MODE SETUP • REC TIME MODE: Select the recording speed. REC MODE SETUP VCR MODE SETUP...
Page 11
00250A SVR-24PRT/960PRT-E2 7/10/01 9:10 AM Page 20 SETTING MENU1 – SETTING PROGRAM REC • How to set a PROGRAM REC • When 5 program is set in the PROGRAM SETUP 1, select PROGRAM SETUP PROGRAM SETUP exa...
Page 12
00250A SVR-24PRT/960PRT-E2 7/10/01 9:10 AM Page 22 OPERATION F.F F.F To Return to normal BASIC PLAYBACK OPERATION During normal playback playback REC P/STILL P/STILL F.F Press the POWER button Press t...
Page 13
00250A SVR-24PRT/960PRT-E2 7/10/01 9:10 AM Page 24 VARIOUS PLAYBACKS • Insert the tape for playback. F.FREW F.F Screen search (During When viewing a slow picture When viewing a forward reverse PLAY P/...
Page 14
00250A SVR-24PRT/960PRT-E2 7/10/01 9:10 AM Page 26 VARIOUS PLAYBACK(CONT.) F.F For viewing a reverse For L24H, L40H Still picture When viewing still PLAY P/STILL playback picture (L18H, L30H) hours Pr...
Page 15
00250A SVR-24PRT/960PRT-E3 7/10/01 8:36 AM Page 28 RECORD LOCKING This unit features a recording safety function and other various recording functions for multi-purpose applications including monitori...
Page 16
00250A SVR-24PRT/960PRT-E3 7/10/01 8:36 AM Page 30 BASIC RECORDING F.F Insert the tape with the Select the recording speed Press the VCR power PLAY P/STILL button erasure prevention tab facing • Recor...
Page 17
00250A SVR-24PRT/960PRT-E3 7/10/01 8:36 AM Page 32 SERIES RECORDING ALARM RECORDING This is a convenient function in which when two or more VCRs are If the VCR is connected to equipment with an alarm ...
Page 18
00250A SVR-24PRT/960PRT-E3 7/10/01 8:36 AM Page 34 ALARM FUNCTIONS The alarm functions include the alarm recording, alarm checking alarm clear, and alarm counter memory. (Refer to Alarm Recording, pag...
Page 19
00250A SVR-24PRT/960PRT-E3 7/10/01 8:36 AM Page 36 HIGH PICTURE CONVENIENT FUNCTIONS You can see the high picture. Understanding the following functions will give you a convenient way of finding infor...
Page 20
00250A SVR-24PRT/960PRT-E3 7/10/01 8:36 AM Page 38 METHOD OF CONNECTION SERIES RECORDING, ALARM CONNECTIONS Connection with Frame Switcher Connecting for series recording IN OUT IN OUT IN OUT VIDEO VI...
Page 21
00250A SVR-24PRT/960PRT-E3 7/10/01 8:36 AM Page 40 MAINTENANCE TROUBLESHOOTING If the picture is not clear on the screen, use the cleaning tape. Check to see whether you contact service center. If the...
Page 22
00250A SVR-24PRT/960PRT-E3 7/10/01 8:36 AM Page 42 TROUBLESHOOTING(CONT.D) TROUBLESHOOTING (CONT'D) Trouble Checks and adjustments The tape cannot be inserted. • Check to see whether the power plug is...
Page 23
00250A SVR-24PRT/960PRT-E3 7/10/01 8:36 AM Page 44 DAILY CHECKS BEFORE REQUESTING SERVICE Careless handling by the user is not covered. This video is designed for use on Daily checks Strong impacts. a...
Page 24
00250A SVR-24PRT/960PRT-E3 7/10/01 8:36 AM Page 46 SPECIFICATIONS Recording Type Rotation head azimuth recording type, luminance signal FM recording type, color signal down converted direct recording ...
