Samsung Refrigerator (2-Door, 3-Door) - RB31FERNDSSS User's Manual
Summary
Designed for new owners of the Samsung Free Standing Refrigerator, this manual provides essential guidance on safe handling, proper installation, and responsible operation. It thoroughly covers critical safety warnings regarding electrical shock, refrigerated gas leaks, and unit placement. Essential details provided include operational guidelines, recommended maintenance practices, refrigerant disposal instructions (R-600a/R-134a), and precautions for transport to ensure the longevity of your appliance and protect users' safety.
Page 1 Text Content
SEUK SEWA SSA
RB28F* RB29F* RB29H* RB30F* RB31F* RB31H* RB32F* RB33F* RB34F* RB39F* RB37J* RL37J* RB33N* RL33N* Refrigerator RB34N*
user manual
English
imagine the possibilities Thank you for purchasing a Samsung product.
Free Standing Appliance
DA68-02833A (EN)-19.indd 1 2018. 1. 31. �� 9:55
Page Summary Contents For Samsung Refrigerator (2-Door, 3-Door) - RB31FERNDSSS User's Manual

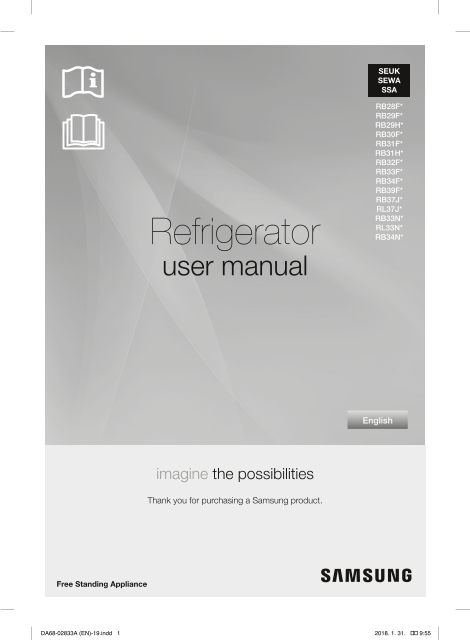

Page 1
SEUK SEWA SSA RB28F* RB29F* RB29H* RB30F* RB31F* RB31H* RB32F* RB33F* RB34F* RB39F* RB37J* RL37J* RB33N* RL33N* Refrigerator RB34N* user manual English imagine the possibilities Thank you for purchasi...
Page 2
safety information SAFETY INFORMATION Children shall not play with the appliance. Cleaning and • Before operating the appliance, user maintenance shall not please read this manual be made by children ...
Page 3
regard to safe disposal of this Warning; Risk of product. fire / flammable • In order to avoid the creation materials of a flammable gas-air mixture if a leak in the refrigerating circuit occurs, the ...
Page 4
These warning signs are should be taken to ensure that here to prevent injury to you no parts of the refrigerating and others. Please follow circuit are damaged. them carefully. After reading this sec...
Page 5
cracks or abrasion damage it may come in contact with along its length or at either end. water. • Do not pull or excessively bend Deteriorated insulation of the power cord. electrical parts may cause ...
Page 6
• Do not install this appliance in shock, fire, explosion, or a humid, oily or dusty location, problems with the product. in a location exposed to direct Never plug the power cord into sunlight and wa...
Page 7
structure clear of This may cause frostbite. obstruction. • Do not use or place any • Allow the appliance to stand substances sensitive for 2 hours after installation. to temperature such as • The ins...
Page 8
• If any dust or water is in water cubes only with potable Refrigerator, pull out power plug water (mineral water or purified and contact your Samsung water). Electronics service center. Do not fill t...
Page 9
• Do not put fridge shelf in • Bottles should be stored tightly upside down. together so that they do not Shelf stopper could not work. fall out. It may cause a personal injury • This product is inten...
Page 10
problems with the product, or • Do not put a container filled injury. with water on the appliance. If spilled, there is a risk of fire • If the appliance or electric shock. generates a strange • Never...
Page 11
• Please observe maximum • Do not block air holes. storage times and expiry dates If the air holes are blocked, of frozen goods. especially with a plastic bag, • There is no need to disconnect the ref...
Page 12
CAUTION SIGNS It may cause a personal injury CAUTION FOR CLEANING AND or material damage. MAINTENANCE • Before cleaning • Do not spray cleaning or performing products directly on the maintenance, unpl...
Page 13
SEVERE WARNING are damaged prior to disposal. WARNING SIGNS FOR The pipes shall be broken in DISPOSAL the open space. • When disposing of this or • Leave the shelves in other refrigerator/s, remove th...
Page 14
ADDITIONAL TIPS bad easily at low temperature, FOR PROPER USAGE such as bananas, melons. • Your appliance is frost free, • In the event of a power failure, which means there is no call the local offic...
Page 15
Saving Energy Tips Right, left, and back side: Install the appliance in a more than 50 mm cool, dry room with adequate Top side: more than 100 mm ventilation. For the most efficient use Ensure that it...
Page 16
contents SETTING UP YOUR REFRIGERATOR ………………………………………………………… OPERATING YOUR REFRIGERATOR ………………………………………………………… REVERSING THE DOOR (OPTIONAL) ………………………………………………………… TROUBLESHOOTING …………………………………………………...
Page 17
FLOORING Spacer For proper installation, this refrigerator must be placed on a level surface of hard material that has the same height as the rest of the flooring. This surface should be strong enough...
Page 18
LEVELLING THE REFRIGERATOR INSTALLING THE HANDLES (APPLICABLE MODELS ONLY) If the front of the appliance is slightly higher than the rear, the door can be opened and closed more easily. The handles ar...
Page 19
SETTING UP THE REFRIGERATOR Now that you have your new refrigerator installed and in place, you are ready to set up and enjoy the full features and functions of the appliance. By completing the follow...
Page 20
operating your refrigerator USING THE CONTROL PANEL Depending on the model, the LED indicators of the freezer may not turn on when you open the freezer door. TYPE A TYPE B Freezer Press the Freezer bu...
Page 21
AT IN Fridge Temperature Alarm (Only for Coolselect zone function model, Press the Fridge button to set the fridge to desired temperature between 1 °C and 7 °C. Default RB37J5**9**, RB37J5**5**, RB31&...
Page 22
ADDITIONAL SHELF FEATURES OF THE FREEZER COMPARTMENT If the additional shelf is provided in optional, you can remove all drawers Frozen-food mark on the Door panel except for the bottom drawer ( 2 ) a...
Page 23
AT IN Shelf life of frozen food USING THE WATER DISPENSER Storage duration depends on the type of food. (OPTIONAL) At a temperature setting of -18 °C: • Fresh Poultry(whole chicken), Fresh meat With t...
Page 24
• Close the refrigerator door USING THE COOLSELECT DUO after fitting the water tank. (OPTIONAL) Confirm that the dispenser cock is outside after closing 1. Disassemble the chilled room box. (Depending...
Page 25
AT IN REMOVING THE INTERIOR PARTS Drawers Pull the drawers out fully then slightly lift it up to remove the drawers. • If the drawers get stuck to door, remove drawer by lifting up after remove shelve...
Page 26
reversing the door (optional) REVERSING THE DOOR Disassembly of the refrigerator door (OPTIONAL) 1. Remove the Cover Wire Door. Before you reverse the refrigerator door, make sure to unplug the refrig...
Page 27
AT IN 7. Disassemble the middle hinge by removing the screws using a Phillips Head (+) screwdriver. The freezer door may fall forward so please support the door. 8. Remove the freezer door from the bo...
Page 28
Basic position Position reversed 10. Remove the Cap Handle and the Screws by Flat-Head (-) screwdriver. 12. Switch the position of cap screw and cap. Pull out using a thin flat screwdriver. Be careful...
Page 29
AT IN 15. Switch the position of Bottom hinge and Leg. 17. Switch the Wire-Door Direction to opposite (Right -> Left) side like the Picture. Assemble the Hinge Low after putting the Freezer Door in...
Page 30
20. Connect the wire and then insert it into the 22. Assemble the Cap Space Door (additional part) Cover-Control. on back side. Insert the wire into the Cover Hinge and then the white taping part shou...
Page 31
AT IN 24. Assemble the Cap Control. 25. Detach the Fridge and Freezer gaskets and attach them after rotating 180°. Make sure the door gaskets are properly arranged. If not, there can be a noise or dew...
Page 32
troubleshooting Before calling for service, review the checkpoints below. Any service calls regarding normal situations (No Defect Cases) will be charged to users. General Temperature Symptom Possible...
Page 33
LE IN Odors Symptom Possible causes Solution Fridge/freezer • Clean the refrigerator and remove • Spoiled food. does not operate. any spoiled food. Fridge/freezer temperature is • Make sure strong sme...
Page 34
Do you hear abnormal sounds from the refrigerator? Before calling for service, review the checkpoints below. Any service calls related to normal sounds will be charged to the user. These sounds are no...
Page 35
LE IN • As the refrigerator cools or freezes, refrigerant gas moves through sealed pipes, causing bubbling sounds. Bubbling! • As the refrigerator temperature increases or decreases, plastic parts con...
Page 36
Ambient Room Temperature Limits This fridge/freezer is designed to operate in ambient temperatures specified by its temperature class marked on the rating plate. Ambient Temperature range (°C) Class S...
Manual Details
| Brand | Samsung |
|---|---|
| Pages | 36 |
| File Size | 7.64 MB |
| Published | May 29, 2026 |
118 views
Enter the captcha to get the download link:
Frequently Asked Questions
What must I do if there is a suspected refrigerant leak?
Avoid naked flames, ventilate the room immediately, and call the contact center for help to prevent fire or explosion.
How should I dispose of this appliance safely?
Household users should contact their retailer or local government office for detailed instructions on environmentally safe recycling.
What are the rules regarding electrical installation?
Do not plug multiple appliances into the same power board or circuit to prevent overloading and potential hazards.
Under what circumstances can this appliance be used by children or inexperienced persons?
It should only be used by minors aged 8 years and above, or persons with reduced physical, sensory, or mental capabilities, only when supervised.
