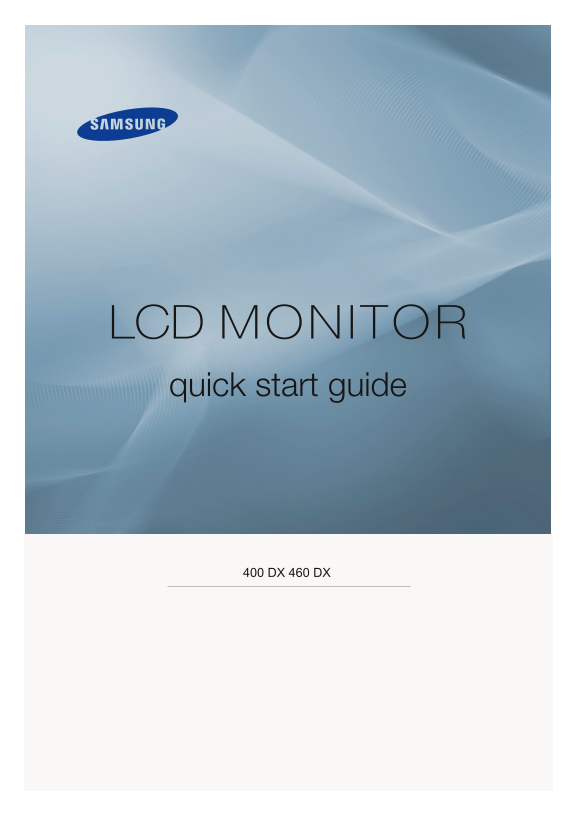

LCD MONITOR quick start guide
400 DX 460 DX
Page Summary Contents For Samsung 400DX LCD Monitor Quick User Guide - Part 4: Product Overview
Page 1
LCD MONITOR quick start guide 400 DX 460 DX
Page 2
Select Language Main Page Model Safety Instructions Introduction Package Contents Your LCD Display Machanical Layout Connections The color and appearance of the product may vary depending on the model...
Page 3
Batteries (AAA X 2) Remote Control (Not available in all Cover-Hole locations) BNC to RCA Semi Stand Screw: 4 EA Adaptor Jack Sold separately Wall Mount KIT Speaker Set DVI Cable BNC Cable Your LCD Di...
Page 4
Activates a highlighted menu item. 5) SOURCE Switches from PC mode to Video mode. Changing the source is only allowed for external devices that are connected to the LCD Display at the time. [PC] → [BN...
Page 5
1) POWER S/W ON [ | ] / OFF [O] Switches the LCD Display On/Off. 2) POWER IN The power cord plugs into the LCD Display and the wall plug. 3) REMOTE OUT/IN You can use a wired remote control by connect...
Page 6
12) AV AUDIO IN [L-AUDIO-R] (LCD Display Audio Connection Terminal (Input)) 13) AV OUT [VIDEO] (VIDEO Connection Terminal): AV mode (Output) 14) AV IN [VIDEO] (VIDEO Connection Terminal) (Input) 15) A...
Page 7
22. FM RADIO 23. P.SIZE 24. SRS 25. DUAL/MTS 26. PIP 27. SOURCE 28. SWAP 29. SIZE 30. REW 31. STOP 32. PLAY/PAUSE 33. FF 1) ON / OFF Turns the LCD Display On/Off. 2) MAGICNET Magic Net Quick Launch Bu...
Page 8
12) P.MODE When you press this button, current picture mode is displayed on the lower center of the screen. AV / S-Video / Component : P.MODE The Monitor has four automatic picture settings that are p...
Page 9
Every time you press the button, a PIP screen appears. 27) SOURCE Changes the source of the PIP window signal. 28) SWAP Swaps the contents of the PIP and main image. The image in the PIP window will a...
Page 10
Select Language Main Page Model Safety Instructions Introduction Connections Installing the Stand KIT Connecting the LCD Display Using the Software The color and appearance of the product may vary dep...
Page 11
Connecting the LCD Display Using a Power cord with Earth In the event of failure, the earth lead may cause electric shock. Make sure to wire the earth lead in correctly, before connecting the AC power...
Page 12
3) Connect the audio cable for your LCD Display to the audio port on the back of your computer. Turn on both your computer and the LCD Display. The DVI cable or BNC cable is optional. Contact a local ...
Page 13
1) Connect a set of audio cables between the COMPONENT AUDIO IN [L-AUDIO-R] on the LCD Display and the AUDIO OUT jacks on the DVD player. 2) Connect a Component cable between the BNC/COMPONENT IN - PR...
Page 14
The audio-video cables shown here are usually included with a Camcorder. (If not, check your local electronics store.) If your camcorder is stereo, you need to connect a set of two cables. Connecting ...
Page 15
Connect the speaker connection cable between the speaker connection jack on the back of the SET and the speaker connection jack on the back of the speaker. Do not move the SET while the SET is connect...
Page 16
You can control your monitor by allowing it to receive the remote control signals of other devices through the REMOTE OUT terminal. You can control a device by allowing it to receive remote control si...
Page 17
Input devices such as digital DVD are connected to the HDMI IN terminal of the monitor using the HDMI cable. You cannot connect a PC to the HDMI IN terminal. Connecting Using a DVI to HDMI Cable 1) Co...
Page 18
Select Language Main Page Model Safety Instructions Introduction Connections Using the Software Adjusting the LCD Display Troubleshooting The color and appearance of the product may vary depending on ...
Page 19
Maintenance and Cleaning 1) Maintaining the LCD Display Case. Clean with a soft cloth after disconnecting the power cord. Do not use benzene, thinner or other flammable substances, or a wet cloth. We ...
Page 20
(Refer to Connecting a Computer) Problems related to the Screen Problems related to the LCD Display screen and their solutions are listed. Problems Solutions The screen is blank and the power Ensure t...
Page 21
Problems related to audio signals and their solutions are listed below. Problems Solutions No sound. Ensure that the audio cable is firmly connected to both the audio-in port on your LCD Display and t...
