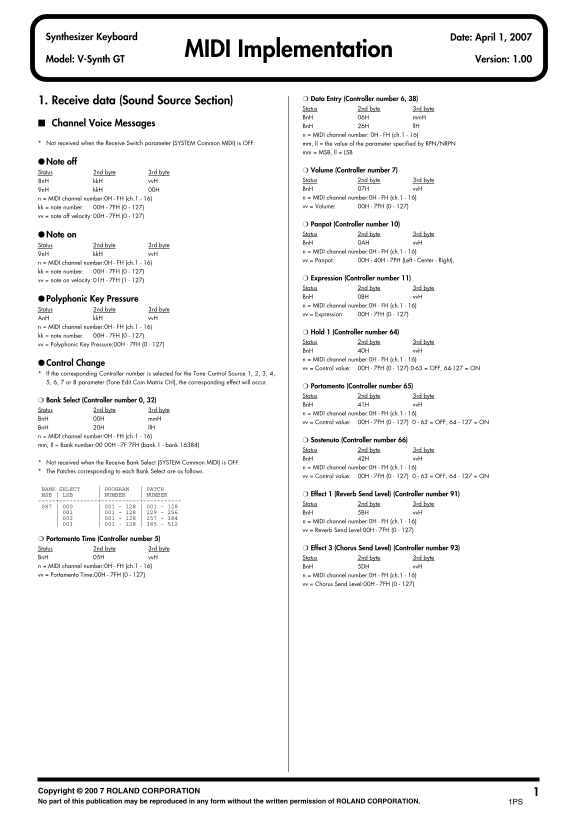

Roland V-Synth GT Elastic Audio Synthesizer MIDI Implementation User's Manual

Synthesizer Keyboard Date: April 1, 2007

Model: V-Synth GT Version: 1.00MIDI Implementation

Data Entry (Controller number 6, 38)

1. Receive data (Sound Source Section)

Status 2nd byte 3rd byte Bn H 06H mm H

Channel Voice Messages Bn H 26H ll H

n = MIDI channel number: 0H - FH (ch.1 - 16)

Not received when the Receive Switch parameter (SYSTEM Common MIDI) is OFF. mm, ll = the value of the parameter specified by RPN/NRPN

mm = MSB, ll = LSB

Note off

Status 2nd byte 3rd byte Volume (Controller number 7) 8n H kk H vv H Status 2nd byte 3rd byte 9n H kk H 00H Bn H 07H vv H n = MIDI channel number:0H - FH (ch.1 - 16) n = MIDI channel number:0H - FH (ch.1 - 16) kk = note number: 00H - 7FH (0 - 127) vv = Volume: 00H - 7FH (0 - 127)

vv = note off velocity: 00H - 7FH (0 - 127)

Panpot (Controller number 10) Note on Status 2nd byte 3rd byte Bn H 0AH vv H

Status 2nd byte 3rd byte

n = MIDI channel number:0H - FH (ch.1 - 16)

9n H kk H vv H

vv = Panpot: 00H - 40H - 7FH (Left - Center - Right),

n = MIDI channel number:0H - FH (ch.1 - 16) kk = note number: 00H - 7FH (0 - 127)

vv = note on velocity: 01H - 7FH (1 - 127) Expression (Controller number 11) Status 2nd byte 3rd byte Bn H 0BH vv H

Polyphonic Key Pressure

n = MIDI channel number:0H - FH (ch.1 - 16)

Status 2nd byte 3rd byte

vv = Expression: 00H - 7FH (0 - 127)

An H kk H vv H n = MIDI channel number:0H - FH (ch.1 - 16)

Hold 1 (Controller number 64)

kk = note number: 00H - 7FH (0 - 127)

Status 2nd byte 3rd byte

vv = Polyphonic Key Pressure:00H - 7FH (0 - 127)

Bn H 40H vv H n = MIDI channel number:0H - FH (ch.1 - 16)

Control Change

vv = Control value: 00H - 7FH (0 - 127) 0-63 = OFF, 64-127 = ON

If the corresponding Controller number is selected for the Tone Control Source 1, 2, 3, 4, 5, 6, 7 or 8 parameter (Tone Edit Com Matrix Ctrl), the corresponding effect will occur.

Portamento (Controller number 65) Status 2nd byte 3rd byte

Bank Select (Controller number 0, 32)

Bn H 41H vv H

Status 2nd byte 3rd byte

n = MIDI channel number:0H - FH (ch.1 - 16)

Bn H 00H mm H

vv = Control value: 00H - 7FH (0 - 127) 0 - 63 = OFF, 64 - 127 = ON

Bn H 20H ll H n = MIDI channel number:0H - FH (ch.1 - 16)

Sostenuto (Controller number 66)

mm, ll = Bank number:00 00H - 7F 7FH (bank.1 - bank.16384)

Status 2nd byte 3rd byte Bn H 42H vv H

Not received when the Receive Bank Select (SYSTEM Common MIDI) is OFF.

n = MIDI channel number:0H - FH (ch.1 - 16)

The Patches corresponding to each Bank Select are as follows.

vv = Control value: 00H - 7FH (0 - 127) 0 - 63 = OFF, 64 - 127 = ON

BANK SELECT | PROGRAM | PATCH

MSB | LSB | NUMBER | NUMBER Effect 1 (Reverb Send Level) (Controller number 91) Status 2nd byte 3rd byte

087 | 000 | 001 - 128 | 001 - 128 | 001 | 001 - 128 | 129 - 256 Bn H 5BH vv H | 002 | 001 - 128 | 257 - 384

n = MIDI channel number:0H - FH (ch.1 - 16)

vv = Reverb Send Level:00H - 7FH (0 - 127)

Portamento Time (Controller number 5)

Status 2nd byte 3rd byte Effect 3 (Chorus Send Level) (Controller number 93)

Bn H 05H vv H Status 2nd byte 3rd byte n = MIDI channel number:0H - FH (ch.1 - 16) Bn H 5DH vv H vv = Portamento Time:00H - 7FH (0 - 127) n = MIDI channel number:0H - FH (ch.1 - 16)

vv = Chorus Send Level:00H - 7FH (0 - 127)

Co pyright © 200 7 ROLAND CORPORATION No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION. 1PS
