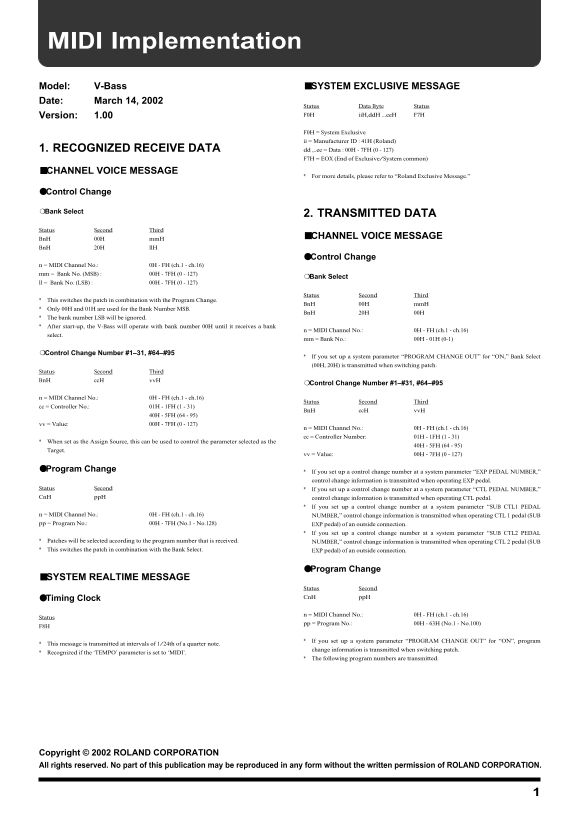

Roland V-Base V-Bass MIDI Implementation User's Manual

MIDI Implementation Model: V-Bass ■SYSTEM EXCLUSIVE MESSAGE Date: March 14, 2002

Status Data Byte Status

Version: 1.00 F0H ii H,dd H ...ee H F7H

F0H = System Exclusive ii = Manufacturer ID : 41H (Roland)

1. RECOGNIZED RECEIVE DATA dd ,..ee = Data : 00H - 7FH (0 - 127)

F7H = EOX (End of Exclusive/System common)

■CHANNEL VOICE MESSAGE

For more details, please refer to “Roland Exclusive Message.”

●Control Change

❍Bank Select

2. TRANSMITTED DATA

Status Second Third

Bn H 00H mm H ■CHANNEL VOICE MESSAGE

Bn H 20H ll H

●Control Change

n = MIDI Channel No.: 0H - FH (ch.1 - ch.16) mm = Bank No. (MSB) : 00H - 7FH (0 - 127)

❍Bank Select

ll = Bank No. (LSB) : 00H - 7FH (0 - 127)

Status Second Third

This switches the patch in combination with the Program Change.

Bn H 00H mm H

Only 00H and 01H are used for the Bank Number MSB.

Bn H 20H 00H

The bank number LSB will be ignored. After start-up, the V-Bass will operate with bank number 00H until it receives a bank

n = MIDI Channel No.: 0H - FH (ch.1 - ch.16)

select.

mm = Bank No.: 00H - 01H (0-1)

❍Control Change Number #1–31, #64–#95

If you set up a system parameter “PROGRAM CHANGE OUT” for “ON,” Bank Select (00H, 20H) is transmitted when switching patch.

Status Second Third

Bn H cc H vv H

❍Control Change Number #1–#31, #64–#95

n = MIDI Channel No.: 0H - FH (ch.1 - ch.16)

Status Second Third

cc = Controller No.: 01H - 1FH (1 - 31)

Bn H cc H vv H

40H - 5FH (64 - 95)

vv = Value: 00H - 7FH (0 - 127)

n = MIDI Channel No.: 0H - FH (ch.1 - ch.16) cc = Controller Number: 01H - 1FH (1 - 31)

When set as the Assign Source, this can be used to control the parameter selected as the

40H - 5FH (64 - 95)

Target.

vv = Value: 00H - 7FH (0 - 127)

●Program Change

If you set up a control change number at a system parameter “EXP PEDAL NUMBER,” control change information is transmitted when operating EXP pedal.

Status Second If you set up a control change number at a system parameter “CTL PEDAL NUMBER,”

Cn H pp H control change information is transmitted when operating CTL pedal.

If you set up a control change number at a system parameter “SUB CTL1 PEDAL

n = MIDI Channel No.: 0H - FH (ch.1 - ch.16) NUMBER,” control change information is transmitted when operating CTL 1 pedal (SUB pp = Program No.: 00H - 7FH (No.1 - No.128) EXP pedal) of an outside connection.

If you set up a control change number at a system parameter “SUB CTL2 PEDAL

Patches will be selected according to the program number that is received. NUMBER,” control change information is transmitted when operating CTL 2 pedal (SUB This switches the patch in combination with the Bank Select. EXP pedal) of an outside connection.

●Program Change

■SYSTEM REALTIME MESSAGE

Status Second ●Timing Clock Cn H pp H

n = MIDI Channel No.: 0H - FH (ch.1 - ch.16)

Status

pp = Program No.: 00H - 63H (No.1 - No.100)

If you set up a system parameter “PROGRAM CHANGE OUT” for “ON”, program

This message is transmitted at intervals of 1/24th of a quarter note.

change information is transmitted when switching patch.

Recognized if the ‘TEMPO’ parameter is set to ‘MIDI’.

The following program numbers are transmitted.
