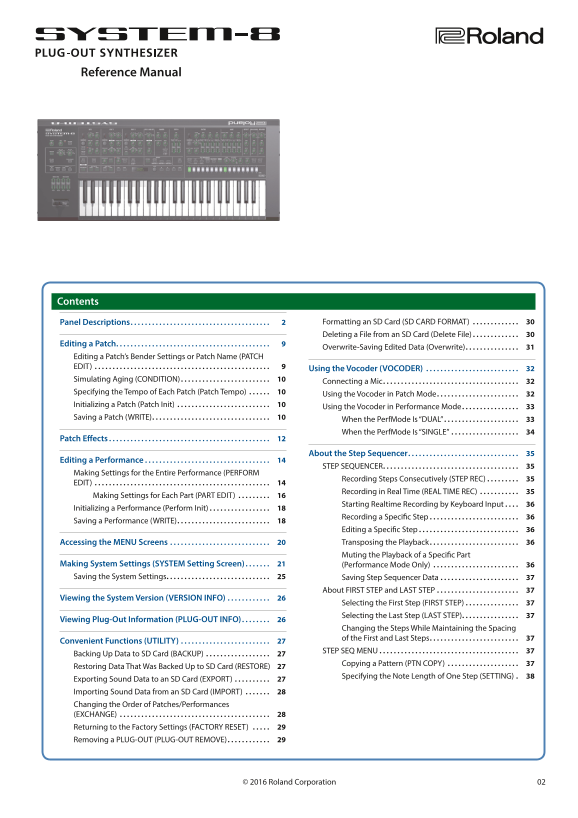

Page 1
Contents Panel Descriptions 2 Formatting an SD Card (SD CARD FORMAT) Deleting a File from an SD Card (Delete File) 30 Editing a Patch 9 Overwrite-Saving Edited Data (Overwrite) 31 Editing a Patch’s Be...
Page 2
Panel Descriptions 1 Common section Here you can make the following settings for the SYSTEM-8. Controller Value Explanation [VOLUME] knob Adjusts the volume. [INPUT] knob Adjusts the volume level of t...
Page 3
Panel Descriptions Controller Value Explanation Octave shift These buttons let you shift the pitch range of the keyboard in one-octave units. The -3–0–+3 (octave units) button is lit if the pitch is s...
Page 4
Panel Descriptions 2 LFO Here you can create cyclic change (modulation) in the sound by applying vibrato (pitch modulation) or tremolo (volume modulation). Controller Value Explanation Selects the var...
Page 5
Panel Descriptions Controller Value Explanation Selects the source that is modulated by the [COLOR] knob. The sound is determined by the position of the [COLOR] knob. It will not vary over time. LFO T...
Page 6
Panel Descriptions 6 PITCH Here you can create time-varying change (envelope) for pitch. Controller Value Explanation If this knob is turned toward the right, the pitch initially becomes higher and th...
Page 7
Panel Descriptions Controller Value Explanation [A] slider [D] slider These sliders operate similarly to the [A] [D] [S] [R] sliders of the 8 AMP section [S] slider (they affect the cutoff frequency r...
Page 8
Panel Descriptions 10 PITCH BEND/MODULATION This allows you to control pitch bend or apply vibrato. Controller Value Explanation BEND SENS [PITCH] 0–255 Specifies the amount of the pitch change produc...
Page 9
Editing a Patch Patch mode This is the SYSTEM-8’s basic mode, in which it plays a single part. * Use the MODEL buttons to select the desired synthesizer sound engine. 1 Press the MODE [PATCH] button. ...
Page 10
Editing a Patch Simulating Aging (CONDITION) Initializing a Patch (Patch Init) The SYSTEM-8 can simulate the changes that occur in an older unit Here’s how to initialize the patch in the temporary are...
Page 11
Editing a Patch 6 Press the [ENTER] button. A confirmation message appears. Patch Write? [Exit]:N [Ent]:Y 7 To save, press the [ENTER] button. If you decide to cancel, press the [EXIT] button. When sa...
Page 12
Patch Effects You can edit the principal effect parameters of the SYSTEM-8 by using the knobs of the EFFECT, DELAY/CHORUS, and REVERB sections of the panel. You can also edit items that cannot be edit...
Page 13
Patch Effects Presence/absence of parameters for each Parameter Value Explanation DLY + DLY PAN CH1 CH2 FL 630Hz, 800Hz, 1k Hz, 1.25k Hz, 1.6k Hz, Specifies the frequency above which Dly HDmp F 2k Hz,...
Page 14
Editing a Performance Performance mode In this mode you can assign a patch to each of two parts (UPPER part and LOWER part) and play them in dual or single performance modes. In patch mode, the tempo ...
Page 15
Editing a Performance Menu Parameter Value Explanation [SHIFT] +cursor [K] [J] Cursor [K] [J] [VALUE] knob LW64: LOWER only (UPPER does not sound) Part Balance LW64–0–UP63 0: LOWER and UPPER have the ...
Page 16
Editing a Performance Menu Parameter Value Explanation [SHIFT] +cursor [K] [J] Cursor [K] [J] [VALUE] knob Type Time Level Tap Time Dly Feedback Dly Hi Cut Dly HDmp & “DELAY/CHORUS parameters” (p....
Page 17
Editing a Performance 8 Use the cursor [K] [J] buttons to select a parameter, and use the [VALUE] knob to edit the value. Sound selection screens for the upper part and lower part Examples of other ed...
Page 18
Editing a Performance Selecting a patch for each part 2 Use the cursor [K] [J] buttons to select what you want to save. Normally, you’ll select the patch in the first item of the PART EDIT screen. Sel...
Page 19
Editing a Performance In the case of the PATCH WRITE screen To:SYS8 A-1[Ent] [SY System- aws] In the case of the PERF WRITE screen To:A-1 [Ent] [Fat Split ] 6 Use the [VALUE] knob to select the save-d...
Page 20
Accessing the MENU Screens 1 Press the [MENU] button. The MENU screen appears. 2 Use the cursor [K] [J] buttons to select the item that you want to edit, and press the [ENTER] button. The correspondin...
Page 21
Making System Settings (SYSTEM Setting Screen) Here’s how to make overall settings for the SYSTEM-8 itself. 1 Press the [MENU] button. 2 Use the Cursor [K] [J] buttons to select “SYSTEM,” and then pre...
Page 22
Making System Settings (SYSTEM Setting Screen) Menu Parameter Value Explanation [SHIFT]+cursor [K] [J] Cursor [K] [J] [VALUE] knob Selects the polarity of the pedals. Hold Polarity STD, RVS Depending ...
Page 23
Making System Settings (SYSTEM Setting Screen) Menu Parameter Value Explanation [SHIFT]+cursor [K] [J] Cursor [K] [J] [VALUE] knob Specifies whether MIDI messages received via the USB COMPUTER port/MI...
Page 24
Making System Settings (SYSTEM Setting Screen) Menu Parameter Value Explanation [SHIFT]+cursor [K] [J] Cursor [K] [J] [VALUE] knob Gain -20d B, -10d B, 0d B, +10d B Specifies the input sensitivity of ...
Page 25
Making System Settings (SYSTEM Setting Screen) Saving the System Settings 1 Press the [WRITE] button. The WRITE screen appears. <WRITE> [Ent] ÄSYSTEM* 2 Press the cursor [J] button several times...
Page 26
Viewing the System Version (VERSION INFO) Here’s how to view the version of the SYSTEM-8’s system program. 1 Press the [MENU] button. 2 Select “VERSION INFO” and then press the [ENTER] button. The SYS...
Page 27
Convenient Functions (UTILITY) 6 To restore, press the [ENTER] button. Backing Up Data to SD Card (BACKUP) If you decide to cancel, press the [EXIT] button. When the restore is completed, the screen i...
Page 28
Convenient Functions (UTILITY) 6 Press the [ENTER] button. 5 Press the [ENTER] button. Specify the file name of the export file. The sound data selection screen appears. Use the [VALUE] knob to select...
Page 29
Convenient Functions (UTILITY) 1 Press the [MENU] button. 4 Use the [VALUE] knob to select the item that you want to factory-reset. 2 Use the Cursor [K] [J] buttons to select “UTILITY,” and then press...
Page 30
Convenient Functions (UTILITY) 4 Press the [PLUG-OUT 1]–[PLUG-OUT 3] button of SD card folder structure the PLUG-OUT that you want to remove. The PLUG-OUT name is shown. If you want to select it as th...
Page 31
Convenient Functions (UTILITY) Overwrite-Saving Edited Data (Overwrite) Separately from the conventional write operation (saving sound data in the “WRITE” screen that appears when you press the [WRITE...
Page 32
Using the Vocoder (VOCODER) “Vocoder” is an effect that is applied to a human voice. By sending a human voice through a vocoder, you can give it an expressionless vocal character as though a robot wer...
Page 33
Using the Vocoder (VOCODER) Using the Vocoder in Performance Mode 1 Press the MODE [PERFORMANCE] button to select performance mode. 2 Press the [VOCODER] button to turn it “on” (lit). 3 While vocalizi...
Page 34
Using the Vocoder (VOCODER) When the Perf Mode Is “SINGLE” When the Perf Mode (p. 14) is set to "SINGLE," operation is as follows. When you turn the [VOCODER] button "on," The inpu...
Page 35
About the Step Sequencer Name of parameter No recorded data STEP SEQUENCER This is a polyphonic step sequencer. FILTER:Cutoff The following settings are stored individually for each patch. oo [100] --...
Page 36
About the Step Sequencer 5 Play the keyboard. Editing a Specific Step You can also record chords. Knob operations are also recorded. 1 Press the [EDIT/DISP] button to make it light. 2 Hold down the [E...
Page 37
About the Step Sequencer 1 While holding down [LAST STEP], press the button Saving Step Sequencer Data that you want to be the last step. Step sequencer data is saved within the patch data. You can sa...
Page 38
About the Step Sequencer 2 Use “From:” to select the copy-source patch number, and press the [ENTER] button. PTN COPY [Ent] From:SYS8 A-1 3 At the confirmation screen, press the [ENTER] button. If you...
