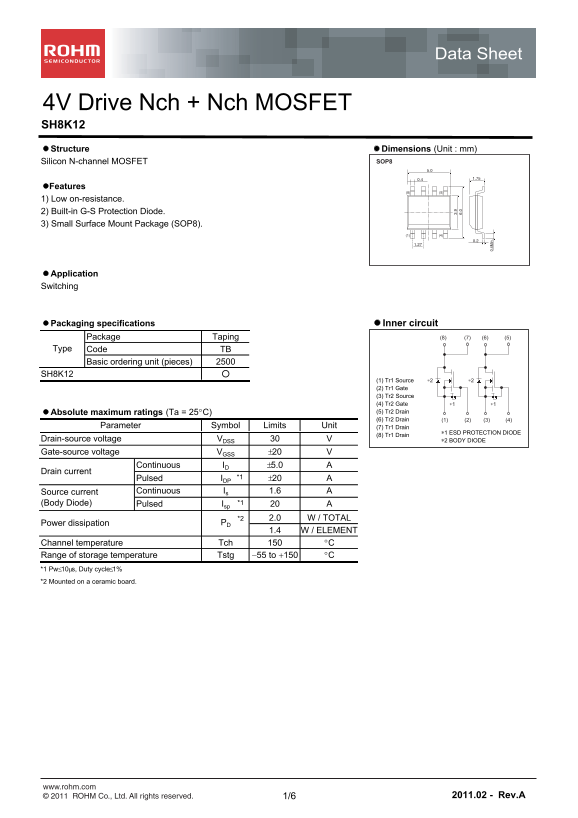

Data Sheet

4V Drive Nch + Nch MOSFET SH8K12 Structure Dimensions (Unit : mm)

Silicon N-channel MOSFET SOP8

Features

1) Low on-resistance. 2) Built-in G-S Protection Diode. 3) Small Surface Mount Package (SOP8).

Application Switching

Packaging specifications Inner circuit

Package Taping (8) (7) (6) (5)

Type Code TB Basic ordering unit (pieces) SH8K12

(1) Tr1 Source ∗2 ∗2

(2) Tr1 Gate (3) Tr2 Source (4) Tr2 Gate ∗1 ∗1 Absolute maximum ratings (Ta = 25C) (5) Tr2 Drain (6) Tr2 Drain (1) (2) (3) (4)

Parameter Symbol Limits Unit (7) Tr1 Drain

∗1 ESD PROTECTION DIODE

(8) Tr1 Drain

Drain-source voltage VDSS ∗2 BODY DIODE

Gate-source voltage VGSS 20 Continuous ID 5.0

Drain current

Pulsed IDP *1 20

Source current Continuous Is 1.6 (Body Diode) Pulsed Isp *1 *2 2.0 W / TOTAL

Power dissipation PD

1.4 W / ELEMENT

Channel temperature Tch C Range of storage temperature Tstg 55 to 150 C *1 Pw10s, Duty cycle1% *2 Mounted on a ceramic board.

www.rohm.com

Page Summary Contents For ROHM SH8K12 Data Sheet/Manual

Page 1 Data Sheet 4V Drive Nch + Nch MOSFET SH8K12 Structure Dimensions (Unit : mm) Silicon N-channel MOSFET SOP8 Features 1) Low on-resistance. 2) Built-in G-S Protection Diode. 3) Small Surface Mount Pa...

Page 2 Data Sheet SH8K12 Electrical characteristics (Ta = 25C) <It is the same ratings for Tr1 and Tr2.> Parameter Symbol Min. Typ. Max. Unit Conditions Gate-source leakage IGSS 10 A VGS=20V, VDS=...

Page 3 Data Sheet SH8K12 IC IN -S -S Electrical characteristic curves (Ta=25C) IS IN [A IN [A Fig.2 Typical Output Characteristics(Ⅱ) Fig.1 Typical Output Characteristics(Ⅰ) Ta=25°C Pulsed VGS= 10V VGS= 2....

Page 4 Data Sheet SH8K12 IC IN -S -S IT IN IM Fig.7 Static Drain-Source On-State Fig.8 Forward Transfer Admittance Resistance vs. Drain Current(Ⅳ) vs. Drain Current VGS= 4.0V VDS= 10V Pulsed Pulsed Ta=125°C ...

Page 5 Data Sheet SH8K12 IZ IE IS t) IT Fig.13 Typical Capacitance Fig.14 Maximum Safe Operating Aera vs. Drain-Source Voltage Operation in this area is limited by RDS(ON) (VGS=10V) PW=100us PW=1ms PW = 10ms...

Page 6 Data Sheet SH8K12 Measurement circuits Pulse width VGS ID VDS 90% 50% 50% RL VGS 10% RG VDD 90% 90% trtd(on) tftd(off) ton toff Fig.1-1 Switching Time Measurement Circuit Fig.1-2　Switching Waveforms ...

Page 7 Notice Thank you for your accessing to ROHM product informations. More detail product informations and catalogs are available, please contact us. ROHM Customer Support System http://www.rohm.com/conta...
